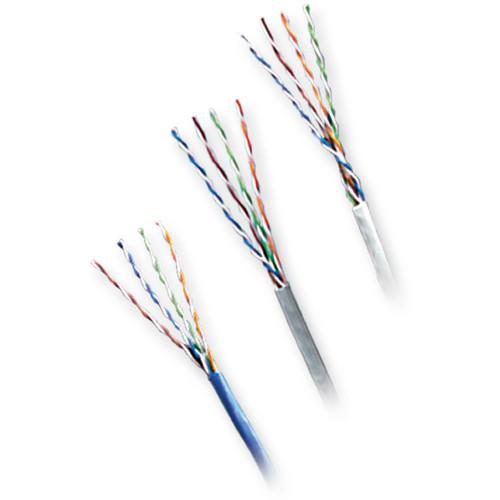

Product description The white Genesis Category 5e Unshielded Twisted Pair Networking Cable comes in a reel in-a box of 1000.0’ (304.8m). It is a CAT5e UTP (unshielded twisted pair) cable. This cable is the main component of a communications system and a key determinant to its performance. It strictly adheres to the TIA/EIA category requirements. - 4-Pair CAT5e UTP (unshielded twisted pair) cable
- CMP (Plenum communication) rated by UL
- AWG 24 solid bare copper conductor
- LSPVC jacket with a ripcord under the jacket
- Sequential footage markings
- ETL verified to TIA/EIA 568-C Category 5e
UPC: 619172043809 In the Box Honeywell Genesis Category 5e Unshielded Twisted Pair Networking Cable (1000' Reel in-a Box, White) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Category 5e Unshielded Twisted Pair Networking Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5088-21-01 Specs | | | Voltage Rating | 300 V | | Current | Current Rating: 1.4 A | | DC Resistance | Nominal Value: 7.6 Ω / 100 m
Maximum: 9.38 Ω / 100m | | Resistance | Resistance Unbalance: Nominal : 1.5%
Maximum Value: 5% | | Capacitance | Nominal: 4.9 nF/100m
Maximum : 5.6 nF / 100m
Capacitance Unbalance: Nominal Value: 50 pF / 100m
Maximum Value: 330 pF/100m | | Velocity of Propagation | Nominal: 71% | | Propagation Delay | Nominal : 505 ns/100 m
Maximum: 570 ns / 100 m | | Delay Skew (ns/100 m) | Nominal: 15 ns / 100m
Maximum : 45 ns / 100m | | | | Style | 24/4pr CAT5e CMP | | Conductor | 24 solid bare copper | | Insulation | 100% FEP insulation | | Jacket | LSPVC jacket with ripcord
Diameter: 0.200" (0.508 cm) | | Minimum Bend Radius | 0.8" (7.6 cm) | | Pull Strength | 25.0 lb (11.3 kg) | | Cable Length | 1000.0' (304.8 m) | | Weight | 22.0 lb (10.0 kg) | | | | Package Weight | 22.8 lb | | Box Dimensions (LxWxH) | 12.3 x 12.3 x 10.5" |
