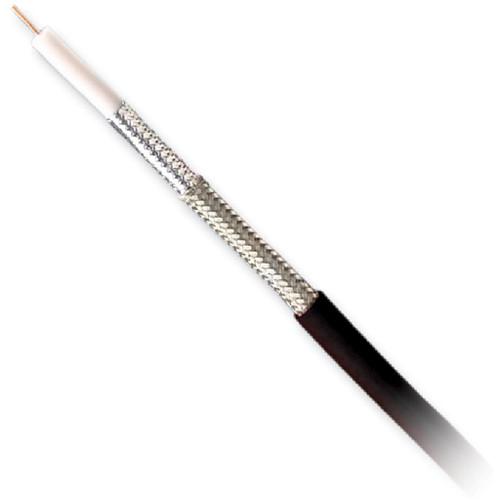

User Manual for Honeywell Genesis Coaxial CATV CL2 Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis Coaxial CATV CL2 Cable
- Product category: Bulk Video Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Video Cables
|
User manual for the Honeywell Genesis Coaxial CATV CL2 Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The black Genesis RG/U CCS Quad Shielded Coaxial CATV/CL2 Cable from Honeywell comes in a reel of 1,000.0'(304.8m). It is designed to assure good performance in high-end home theater installations, incorporating HDTV and digital video. Its quad shielding protects signal transmission from EMI and RFI interference. - Shield consisting of 100% coverage aluminum foil, 60% aluminum braid and100% coverage aluminum foil, 40% aluminum braid
- Protects signal transmission from low- and high-frequency interference
- Suitable for high-performance broadband applications
- AWG 18 copper-clad steel center conductor
- Nitrogen-injected foam polyethylene dielectric
In the Box Honeywell Genesis Coaxial CATV/CL2 Cable (1,000' Reel, Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Coaxial CATV CL2 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5007-10-08 Specs | | | Voltage Rating | 300 V | | Capacitance | 16.5 pF/ft nominal | | Impedance | 75 Ω nominal | | Velocity | 81% nominal | | Conductor | 30 Ω / 1,000.0' (304.8 m) | | | | Style | RG6/U 18 AWG CCS QUAD-Shield CATV/CL2 | | Conductor | 18 AWG copper-clad steel center conductor | | Insulation | Nitrogen-injected foam polyethylene dielectric | | Diameter | Dielectric Diameter: 0.180" (0.457 cm) nominal | | Jacket | Type: PVC
Diameter: 0.298" (0.756 cm) nominal | | Min. Bend Radius | 3.0" (7.6 cm) | | Temperature Rating | -4 to 167⁰F (-20 to 75⁰C) | | Cable Length | 1,000.0' (304.8m) | | Weight | 36.0 lb (16.3 kg) |
