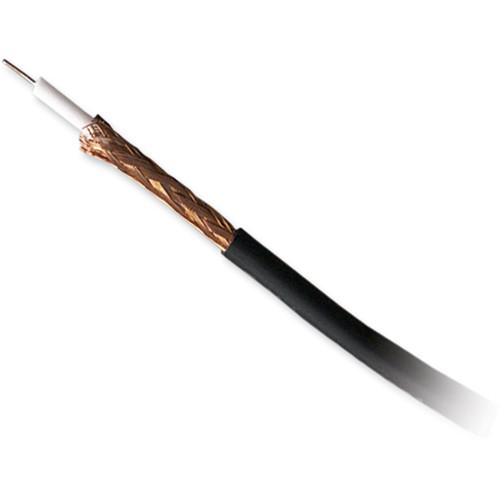

Product description The black Genesis Coaxial CCTV Cable from Honeywell comes in a reel of 1000' (304.8m). It is tested to high standards to assure good performance in high-end home theater installations, incorporating HDTV and digital video. Its shielding protects signal transmission from EMI and RFI interference. The braid shield blocks lower frequency interference, and foil shields block higher frequency interference. - General
- Countdown or sequential footage markings
- Room/Zone markings on Legend
- Bare Copper Conductor
- Good signal strength for low frequency applications such as CCTV
- Recommended for satellite dishes to power Low Noise Blocks (LNB)
- Braid Shielding
- 95% Bare Copper standard or 95% Copper Clad Aluminum for shorter economical runs
- Protects signal transmission from low frequency interference
- Suitable for CCTV or other low frequency applications
UPC: 619172042239 In the Box Honeywell Genesis Coaxial CCTV Cable (Black, 1000'' Reel) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Coaxial CCTV Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5013-10-08 Specs | | | Style | RG59/U + 18/2 Siamese | | Conductor | 20 AWG solid bare copper center conductor
2x 18 AWG 19/.0092 Siamese stranded bare copper | | Insulation | Coaxial and 18 AWG 2/C | | Type | Coaxial: Foamed Polyethylene
18 AWG 2/C: Polypropylene | | Thickness | Coaxial: 0.057" (0.144 cm) nominal
18 AWG 2/C: 0.006" (0.015) nominal | | Diameter | Coaxial: 0.145" (0.368 cm) nominal
18 AWG 2/C: 0.058" (0.147 cm) nominal | | Stranding | 2.25" (5.71 cm) nominal | | Coverage | % Coverage: 95 nominal | | Jacket | Type
Coax: PVC
18 AWG 2/C: PVC | | Thickness | Coaxial: 0.034" (0.086 cm) nominal
18 AWG 2/C: 0.020" (0.050 cm) nominal | | Diameter | Coaxial: 0.245" (0.622 cm) nominal
18 AWG 2/C: 0.156" (0.396 cm) nominal | | Overall Diameter | Coaxial and 18 AWG 2/C: 18 AWG 2/C | | | | Voltage Rating | 300 V | | Temperature Rating | -4 to 167ºF (-20 to 75ºC) | | Capacitance | 17 pF/ft nominal | | Impedance | 75 Ω nominal | | Resistance | Conductor: 10.9 Ω/Mft at 68°F (20ºC)
Shield: 2.6 Ω/Mft at 68°F (20ºC) | | Attenuation | Attenuation (db/100'): 0.2 at 1 MHz, 5.9 at 400 MHz, 10.8 at 1000 MHz | | Rating | Flame Rating: UL 1685 Vertical Tray | | Compliance | UL13 & 444, NEC Article 820 | | Length | 1000.0' (304.8 m) | | Weight | 60.0 lb (27.2 kg) | | | | Package Weight | 49.4 lb | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 13.0" |
