User Manual for Honeywell Genesis General Communications Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis General Communications Cable
- Product category: Bulk Ethernet Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Ethernet Cables
|
User manual for the Honeywell Genesis General Communications Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|

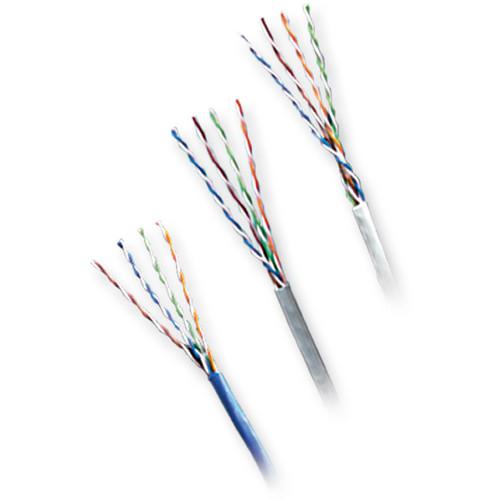

Product description The gray Genesis General Communications Cable from Honeywell comes in a pull box of 1000’ (304.8m). It is a category 5e unshielded twisted 4-pair (UTP) cable. It is tested to high standards to assure good performance in high-end home theater installations, incorporating HDTV and digital video. - General
- Countdown or sequential footage markings
- 24 AWG solid bare copper conductors
- 4 pair Category 5e unshielded twisted pair (UTP) cable
- Polyethylene or polypropylene insulation
- 1000 to 0 (descending) footage marking
- UL 1685 FT4 rated and ETL listed
- UL (or ETL) verified to TIA/EIA-568-C
- Bare Copper Conductor
- Suitable for low frequency applications such as CCTV
- Recommended for satellite dishes to power LNB (Low Noise Blocks)
- Unshielded Twisted Pair
- Sunlight resistant (except Plenum)
In the Box Honeywell Genesis General Communications Cable (Gray, 1000' Pull Box) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis General Communications Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 6330-11-09 Specs | | | Voltage Rating | 300 V | | DC Resistance | Nominal Value: 7.6 Ω / 100 m
Maximum Value: 9.38 Ω / 100m | | Resistance | Resistance Unbalance: Nominal Value: 1.5%
Maximum Value: 5% | | Capacitance | Nominal Value: 4.9 nF/100m
Maximum Value: 5.6 nF / 100m
Capacitance Unbalance: Nominal Value: 50 pF / 100m
Maximum Value: 330 pF/100m | | Velocity of Propagation | Nominal Value: 69% | | Propagation Delay | Nominal Value: 515 ns / 100m
Maximum Value: 570 ns / 100m | | Delay Skew (ns/100 m) | Nominal Value: 15 ns / 100m
Maximum Value: 45 ns / 100m | | | | Style | 24/4pr Category 5e UTP CM | | Conductor | 24 AWG solid bare copper conductor | | Insulation | HDPE or PP | | Jacket | Jacket Type: PVC
Jacket Diameter: 0.200" (0.5 cm) | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Length | 1,000.0' (304.8 m) | | Weight | 21.0 lb (9.5 kg) |
