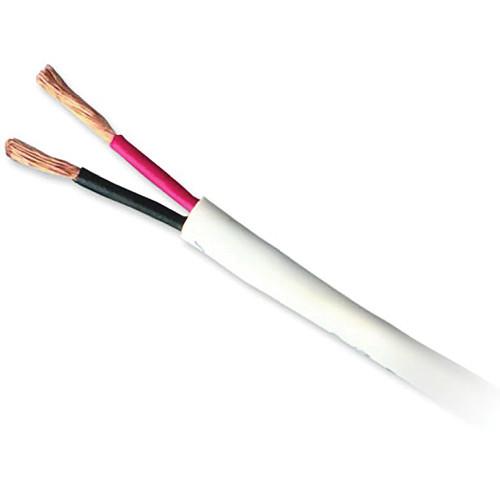

User Manual for Honeywell Genesis Series 16 AWG Unshielded Home Theater Sound Jacketed Cable with 2 Unpaired Conductors Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis Series 16 AWG Unshielded
- Product category: Multi-Conductor Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Multi-Conductor Cables
|
User manual for the Honeywell Genesis Series 16 AWG Unshielded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 500’ long white Genesis Series 16 AWG Unshielded Home Theater Sound Jacketed Cable with 2 Unpaired Conductors from Honeywell comes packaged in a pull box. The cable offers a gauge size of 16 AWG. It is unshielded and features a general-purpose jacketing material. It is your complete solution for high-end audio transmission, stereo, professional audio systems, and home theater systems.
The home theater cable features WaveFLEX flexible jacketing technology. WaveFLEX jacketing makes the cable easier to strip, improving performance, while reducing the likelihood of kinks and tearing braids or shielding. Incredibly flexible, the ridged jacketing makes termination a snap and is engineered to withstand the rigors of challenging installations, while maintaining full UL specifications. This saves you time and money, and enables you to move on to the next job more quickly. - Countdown or sequential footage markings
- Twisted stranded bare copper conductors
- Super flexible PVC jacket
- UL Standards 13, & 444; NEC Article 725
- Flame Rating: UL 1685 Vertical Tray
UPC: 619172033954 In the Box Honeywell Genesis Series 16 AWG Unshielded Home Theater Sound Jacketed Cable with 2 Unpaired Conductors (White, 500' Pull Box) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series 16 AWG Unshielded Home Theater Sound Jacketed Cable with 2 Unpaired Conductors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 52505501 Specs | Gauge | 16 AWG | | Conductors | 2 bare copper conductors with 26 / 30-strand count | | Insulation | Polypropylene
Nominal Thickness: 0.010" / 0.254 mm
Nominal Diameter: 0.078" / 1.981 mm
Colors: Black and red | | Lay Length | Nominal: 3.0" / 76.2 mm | | Jacket | PVC
Nominal Thickness: 0.017" / 0.432 mm | | DC Resistance | 4.1 Ω/m at 20°C | | Nominal Capacitance | 22 pF/ft | | Nominal Impedance | 70 Ω | | Pulling Tension | Maximum: 30.0 lb / 13.6 kg
Recommended: 22.5 lb / 10.2 kg The recommended pulling tension is 75% of the maximum value. | | Temperature Rating | -4 to 140°F / -20 to 60°C | | Operating Voltage | Maximum: 300 V | | Outer Diameter | Nominal: 0.192" / 4.877 mm | | Length | 500.0' / 152.4 m | | Weight | 27.0 lb per MFT / 12.3 kg per MFT | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 11.0 x 10.5 x 8.7" |
