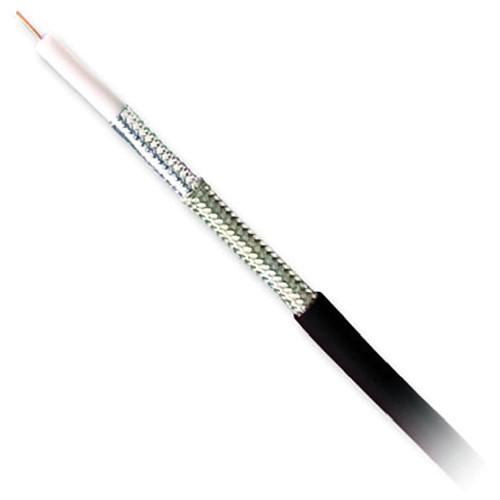

Product description The 1000' long Black Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable from Honeywell comes packaged in a pull box. It is a broadband and digital coaxial cable, tested for high standards to assure high performance in high-end home theater installations, incorporating HDTV and digital video. The cable has a foil shielding that protects signal transmission from EMI and RFI interference and blocks lower frequency interference. Conductor Material - High durability and strength
- Common for broadband applications, including CATV / MATV and HDTV
Shielding - Two 100% aluminum foil shields
- Two aluminum braid shields
- Protects signal transmission from low- and high-frequency interference
- Suitable for high-performance broadband applications
Additional Features - Countdown or sequential footage markings
- Camera and room / zone markings on legend
- Color-coded box with labeling system
UPC: 619172048316 In the Box Honeywell Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable (Black, 1000' Pull Box) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series 18 AWG RG6 U QUAD-Shielded Broadband Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5007-11-08 Specs | Gauge | 18 AWG | | Conductor | Copper-clad steel center
30 Ω/1,000' | | Insulation | Nitrogen-injected foam polyethylene dielectric | | Shield | 100% coverage aluminum foil / 60% aluminum braid
100% coverage aluminum foil / 40% aluminum braid | | Jacket | PVC | | Style | RG6/U | | Minimum Bend Radius | 3.0" (76.2 mm) | | Frequency | Sweep Frequency: 3 GHz | | Nominal Impedance | 75 Ω | | Resistance | 10.9 Ω/m at 20°C | | Attenuation | Minimum SRL: 20 dB
0.7 dB/100' at 5 MHz
1.5 dB/100' at 55 MHz
2.8 dB/100' at 211 MHz
3.9 dB/100' at 400 MHz
4.4 dB/100' at 500 MHz
4.9 dB/100' at 600 MHz
5.5 dB/100' at 750 MHz
6.5 dB/100' at 1,000 MHz
Minimum SRL: 15 dB
8.1 dB/100' at 1,500 MHz
8.9 dB/100' at 1,800 MHz
9.9 dB/100' at 2,200 MHz
10.3 dB/100' at 2,400 MHz
11.7 dB/100' at 3,000 MHz | | Pulling Tension | Maximum: 19.0 lb (8.6 kg)
Recommended: 14.25 lb (6.46 kg) | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Voltage Rating | 300 V | | Diameter | Dielectric: 0.18" (4.57 mm)
Nominal Outer Diameter: 0.298" (7.569 mm) | | Length | 1000.0' (304.8 m) | | | | Package Weight | 35.4 lb | | Box Dimensions (LxWxH) | 20.3 x 20.1 x 10.9" |
