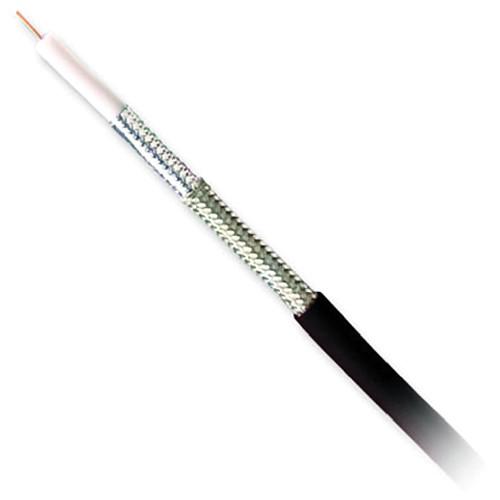

User Manual for Honeywell Genesis Series 18 AWG RG6 U QUAD-Shielded Broadband Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis Series 18 AWG RG6
- Product category: Bulk Video Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Video Cables
|
User manual for the Honeywell Genesis Series 18 AWG RG6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 500' long White Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable from Honeywell comes packaged in a reel in-a-box. It is a broadband and digital coaxial cable, tested for high standards to assure high performance in high-end home theater installations, incorporating HDTV and digital video. The cable has a foil shielding that protects signal transmission from EMI and RFI interference and blocks lower frequency interference. Conductor Material - High durability and strength
- Common for broadband applications, including CATV / MATV and HDTV
Shielding - Two 100% aluminum foil shields
- Two aluminum braid shields
- Protects signal transmission from low- and high-frequency interference
- Suitable for high-performance broadband applications
Additional Features - Countdown or sequential footage markings
- Camera and room / zone markings on legend
- Color-coded box with labeling system
UPC: 619172029964 In the Box Honeywell Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable (White, 500' Reel in-a-Box) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series 18 AWG RG6 U QUAD-Shielded Broadband Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5007-61-01 Specs | Gauge | 18 AWG | | Conductor | Copper-clad steel center
30 Ω/1,000' | | Insulation | Nitrogen-injected foam polyethylene dielectric | | Shield | 100% coverage aluminum foil / 60% aluminum braid
100% coverage aluminum foil / 40% aluminum braid | | Jacket | PVC | | Style | RG6/U | | Minimum Bend Radius | 3.0" (76.2 mm) | | Frequency | Sweep Frequency: 3 GHz | | Nominal Impedance | 75 Ω | | Resistance | 10.9 Ω/m at 20°C | | Attenuation | Minimum SRL: 20 dB
0.7 dB/100' at 5 MHz
1.5 dB/100' at 55 MHz
2.8 dB/100' at 211 MHz
3.9 dB/100' at 400 MHz
4.4 dB/100' at 500 MHz
4.9 dB/100' at 600 MHz
5.5 dB/100' at 750 MHz
6.5 dB/100' at 1,000 MHz
Minimum SRL: 15 dB
8.1 dB/100' at 1,500 MHz
8.9 dB/100' at 1,800 MHz
9.9 dB/100' at 2,200 MHz
10.3 dB/100' at 2,400 MHz
11.7 dB/100' at 3,000 MHz | | Pulling Tension | Maximum: 19.0 lb (8.6 kg)
Recommended: 14.25 lb (6.46 kg) | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Voltage Rating | 300 V | | Diameter | Dielectric: 0.18" (4.57 mm)
Nominal Outer Diameter: 0.298" (7.569 mm) | | Length | 500.0' (152.4 m) | | | | Package Weight | 19.65 lb | | Box Dimensions (LxWxH) | 13.0 x 12.8 x 11.4" |
