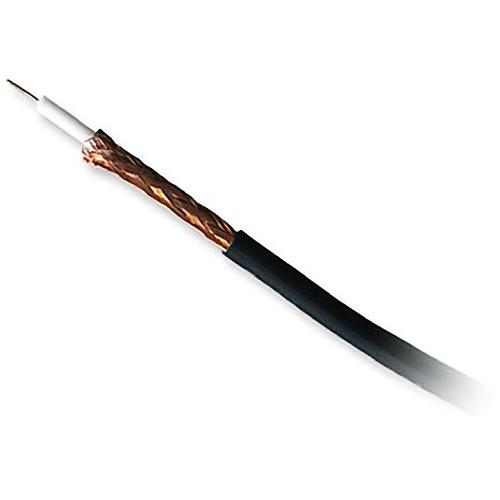

User Manual for Honeywell Genesis Series 20 AWG RG59 U Shielded CCTV Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis Series 20 AWG RG59
- Product category: Bulk Video Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Video Cables
|
User manual for the Honeywell Genesis Series 20 AWG RG59 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 500’ long black Genesis Series 20 AWG RG59/U Shielded CCTV Coaxial Cable from Honeywell is designed for general purpose CCTV wiring applications.
The cable features a WaveFLEX jacketing, making it easy to strip the cable. WaveFLEX also improves performance and reduces the likelihood of kinks and tearing braids or shielding. Incredibly flexible, the ridged jacketing makes termination a snap and is engineered to withstand the rigors of the challenging installations while maintaining full UL specifications. Conductor Material - Good signal strength for low-frequency applications such as CCTV
- Recommended for satellite dishes to power LNB (Low Noise Blocks)
Shielding - 95% bare copper standard or 95% copper clad aluminum for shorter economical runs
- Protects signal transmission from low-frequency interference
- Suitable for CCTV or other low-frequency applications
Additional Features - Flexible WaveFLEX jacket for easy terminations
- Countdown or sequential footage markings
- Camera and room / zone markings on legend
- Color-coded box with labeling system
- UL Standards 13, & 444; NEC Articles 725 & 800
- Flame Ratings: UL 1685 Vertical Tray
UPC: 619172017299 In the Box Honeywell Genesis Series 20 AWG RG59/U Shielded CCTV Coaxial Cable (Black, 500') Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series 20 AWG RG59 U Shielded CCTV Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 50015508 Specs | Gauge | 20 AWG | | Conductor | Solid bare copper | | Insulation | Foamed polyethylene
Nominal Thickness: 0.057" (1.448 mm)
Nominal Diameter: 0.145" (3.683 mm)
Color: White | | Shield | 95% bare copper braid | | Stranding | Nominal: 0.005" (0.127 mm) | | Jacket | PVC
Thickness: 0.034" (0.864 mm)
Diameter: 0.242" (6.147 mm) | | Nominal Impedance | 75 ohms | | Resistance | 10.9 ohms/m at 20°C | | Attenuation | -0.37 dB/100' at 1 MHz
-6.2 dB/100' at 400 MHz
-9.90 dB/100' at 1,000 MHz | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Voltage Rating | 300 V | | Outer Diameter | Nominal: 0.242" (6.147 mm) | | Length | 500.0' (152.4 m) | | | | Package Weight | 16.55 lb | | Box Dimensions (LxWxH) | 14.0 x 9.5 x 9.1" |
