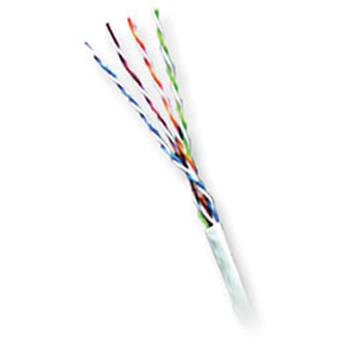

Product description The 1000', white Genesis Series 4-Pair Category 5e UTP Cable from Honeywell is a 4-pair Category 5e Unshielded Twisted Pair (UTP) cable. It has a 24 AWG solid bare copper conductor, insulated with polyethylene or polypropylene. This cable has sunlight-resistant RoHS compliant PVC jacket, a ripcord, and 1000 - 0 (descending) footage marking. The cable is UL (or ETL) verified to TIA/EIA-568 category 5e, sweep tested to 350 MHz, and is general communication UL 1666 riser rated UL (or ETL) listed. UPC: 619172045032 In the Box Honeywell Genesis Series 4-Pair Category 5e UTP Cable (1000', White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series 4-Pair Category 5e UTP Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5078-11-01 Specs | Cable Length | 1000.0' (304.8 m) | | Pairs | 4 | | AWG | 24 | | Stranding | Solid | | Conductor Material | Bare copper | | Jacket | PVC (sunlight-resistant RoHS compliant) | | Testing | Sweep tested to 350 MHz | | Conductor Color Code and Pair | Blue and White/Blue: 1
Orange and White/Orange: 2
Green and White/Green: 3
Brown and White/Brown: 4 | | Electrical Characteristics | DC Resistance:
Nominal Value: 7.6 Ω/323.0' (100.0 m)
Maximum Value: 9.38 Ω/323.0' (100.0 m)
Resistance Unbalance:
Nominal Value: 1.5%
Maximum Value: 5.0%
Capacitance:
Nominal Value: 4.9 nF/323.0' (100.0 m)
Maximum Value: 5.6 nF/323.0' (100.0 m)
Capacitance Unbalance:
Nominal Value: 50.0 pF/323.0' (100.0 m)
Maximum Value: 330.0 pF/323.0' (100.0 m)
Velocity of Propagation:
Nominal Value: 69.0%
Maximum Value: NA
Propagation Delay:
Nominal Value: 515.0 ns/323.0' (100.0 m)
Maximum Value: 570.0 ns/323.0' (100.0 m)
Delay Skew:
Nominal Value: 15.0 ns/323.0' (100.0 m)
Maximum Value: 45.0 ns/323.0' (100.0 m) | | Insulation Type | HDPE or PP | | Jacket Diameter | 0.2" (5.0 mm) | | Voltage Rating | 300 V | | Temperature Rating | -4 to +167°F (-20 to +75°C) | | UL Listing | CMR | | Compliance | RoHS | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 14.4 x 13.1 x 10.3" |
