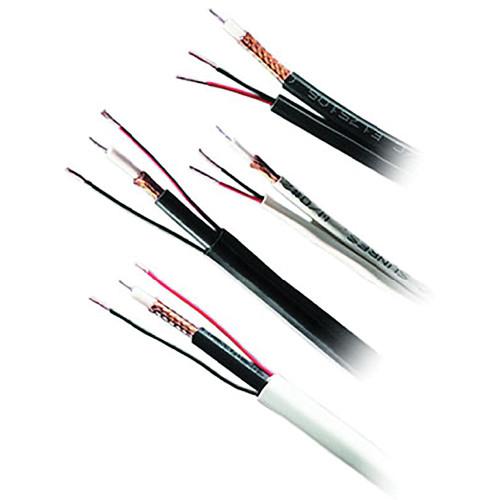

Product description The 500’ long white Genesis Series RG59/U + 18/2 Siamese Shielded CCTV Coaxial & Power Cable from Honeywell comes in a reel in-a-box packaging. It is a baseband coaxial cable with 2 stranded power wires for CCTV and other applications. The cable has a braid shielding that protects signal transmission from EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference) and blocks high-frequency interference.
The cable features a WaveFLEX jacketing making it easy to strip the cable. WaveFLEX also improves performance and reduces the likelihood of kinks and tearing braids or shielding. Incredibly flexible, the ridged jacketing makes termination a snap and is engineered to withstand the rigors of the challenging installations while maintaining full UL specifications. Conductor Material - Good signal strength for low-frequency applications such as CCTV
- Recommended for satellite dishes to power LNB (Low Noise Blocks)
Shielding - 95% bare copper standard or 95% copper clad aluminum for shorter economical runs
- Protects signal transmission from low-frequency interference
- Suitable for CCTV or other low-frequency applications
Additional Features - Flexible WaveFLEX jacket for easy terminations
- Countdown or sequential footage markings
- Camera and room / zone markings on legend
- Color-coded box with labeling system
- UL13 & 444, NEC Article 820
- Flame Ratings: UL 1685 Vertical Tray
UPC: 619172067867 In the Box Honeywell Genesis Series RG59/U + 18/2 Siamese Shielded CCTV Coaxial & Power Cable (White, 500' Reel in-a-Box) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis Series RG59 U 18 2 Siamese Shielded CCTV Coaxial & Power Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5013-61-01 Specs | Conductor | 20 AWG solid bare copper center conductor
Power Wires: 2 x 18 AWG 19/.0092 stranded bare copper | | Insulation | Coax
Foamed polyethylene
Nominal Thickness: 0.057" (1.448 mm)
Nominal Diameter: 0.145" (3.683 mm)
Color: White
18 AWG 2/C
Foamed polyethylene
Nominal Thickness: 0.006" (0.152 mm)
Nominal Diameter: 0.058" (1.473 mm)
Lay Length: 2.25" (57.15 mm)
Color: Black and red | | Shield | 95% bare copper braid | | Stranding | Bare copper
Nominal: 0.005" (0.127 mm) | | Jacket | Coax
PVC
Thickness: 0.034" (0.864 mm)
Diameter: 0.245" (6.223 mm)
18 AWG 2/C
PVC
Thickness: 0.020" (0.51 mm)
Diameter: 0.156" (3.962 mm) | | Style | RG59/U + 18/2 Siamese | | Nominal Velocity of Propagation | 78 | | Nominal Impedance | 75 Ω | | Resistance | Conductor: 10.9 Ω/m at 20°C
Shield: 2.6 Ω/m at 20°C | | Attenuation | 0.2 dB/100' at 1 MHz
5.9 dB/100' at 400 MHz
10.8 dB/100' at 1,000 MHz | | Pulling Tension | For 20 AWG Maximum: 12.0 lb (5.4 kg)
Recommended: 9.0 lb (4.1 kg)
For 18 AWG
Maximum: 19.0 lb (8.6 kg)
Recommended: 14.25 lb (6.46 kg) | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Voltage Rating | 300 V | | Outer Diameter | Nominal: 0.421 x 0.245" (10.693 x 6.223 mm) | | Length | 500.0' (152.4 m) | | Weight | Average: 60.0 lb per MFT (27.2 kg per MFT) | | | | Package Weight | 24.25 lb | | Box Dimensions (LxWxH) | 13.622 x 11.26 x 11.181" |
