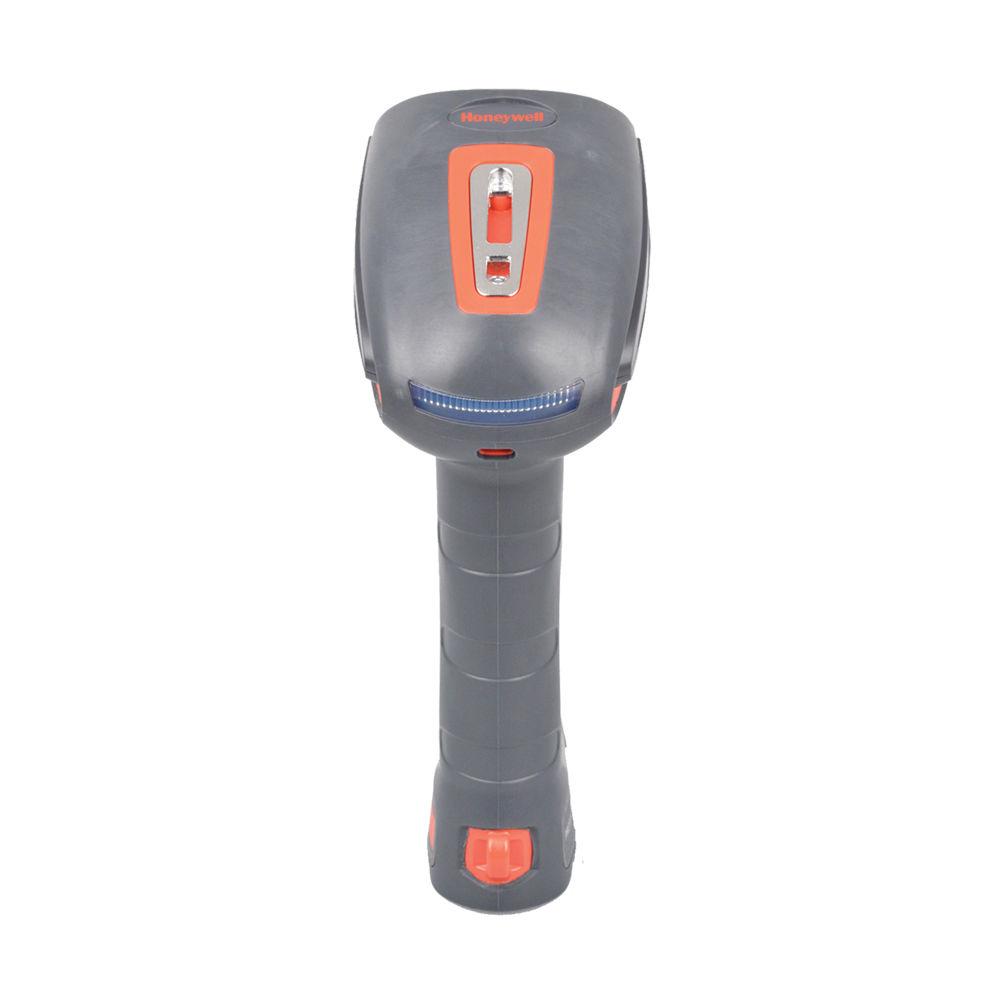

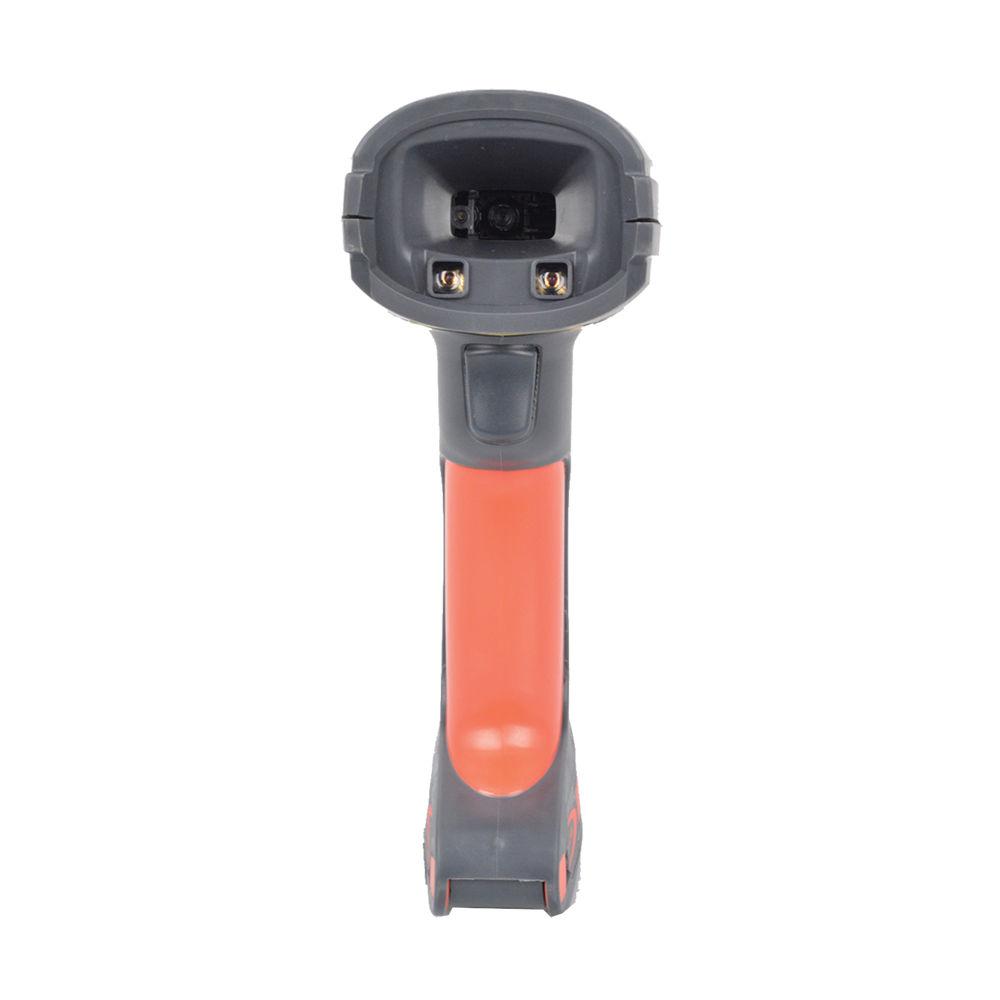

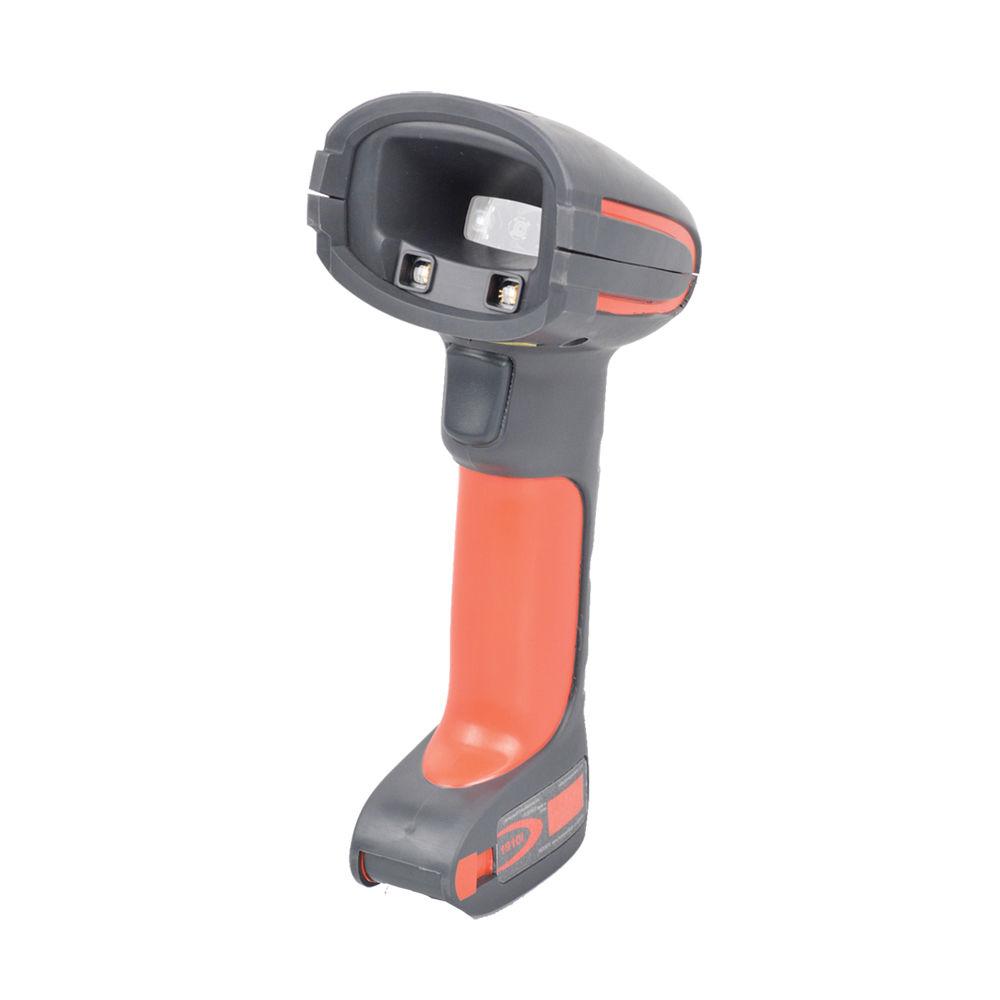

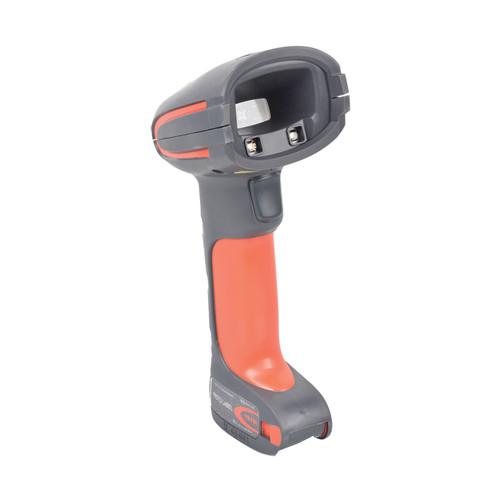

User Manual for Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
 |
User manual for the Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner is a durable IP65-rated barcode scanner that can withstand fifty 6.5' drops to concrete and five thousand 3.3' tumbles. It also features Adaptus 6.0 imaging technology for accurate barcode reading and the ability to handle damaged or poor quality codes. Also, it has an extended working range from 0.6 to 29.5" for more freedom while scanning.
The 1920i will notify the user of successful scans with LEDs, beeping, or a vibration and it uses the TotalFreedom 2.0 area-imaging platform for the loading and linking of multiple applications without the need to modify the host system. Additionally, it comes with Remote MasterMind Scanning Management Software for administrators to manage multiple scanners for a single remote location. In the Box Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Granit 1910i Industrial-Grade Area-Imaging Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1910i Specs | Scan Pattern | Area Imager (838 x 640 pixel array) | | Motion Tolerances | 13 mil UPC
At 6.5" (16.5 cm): Up to 240 in/sec (640 cm/sec)
At 10" (25 cm): Up to 150 in/sec (381 cm/sec) | | Scan Angle | ER Focus
Horizontal: 31.6°
Vertical: 24.4° | | Print Contrast | 20% minimum reflectance difference | | Pitch | 45° | | Skew | 65° | | Typical Range | Code 39, 7.5 mil: 1.9-12.2" (48-310 mm)
UPC, 13 mil: 0.6-21.4" (15-543 mm)
Code 39, 20 mil: 0.6-29.5" (15-749 mm)
PDF417, 6.7 mil: 2.7-8.9" (69-226 mm)
Data Matrix, 10 mil: 2.8-10.3" (71-261 mm)
QR, 20 mil: 0.8-19.5" (20-495 mm)
Code 39, Resolution 1D: 5 mil (0.127 mm)
Data Matrix, Resolution 2D: 7.5 mil (0.191 mm) | | Lighting Conditions | 0-100,000 lux (9,290 fc) | | ESD | ±20 kV air discharge
±8 kV contact discharge | | Interfaces | USB, Keyboard Wedge, RS232 TTL | | Power Requirements | 4.0-5.5 VDC | | Power Consumption | Operating: 2.35 W (470 mA at 5 VDC)
Standby: 0.50 W (100 mA at 5 VDC) | | Environmental Conditions | Operating Temperature: -22 to 122°F (-30 to 50°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Humidity: Up to 95%, relative, non-condensing | | Drop Resistance | Withstands 50 drops to concrete from 6.5' (2 m) at -22°F (-30°C) | | Tumble Resistance | Withstands 5,000 tumbles from 40" (1 m) tumbles | | Ingress Protection Rating | IP65 | | Dimensions | 5.2 x 2.9 x 7.6" (133 x 75 x 195 mm) | | Weight | 10.6 oz (300 g) |
