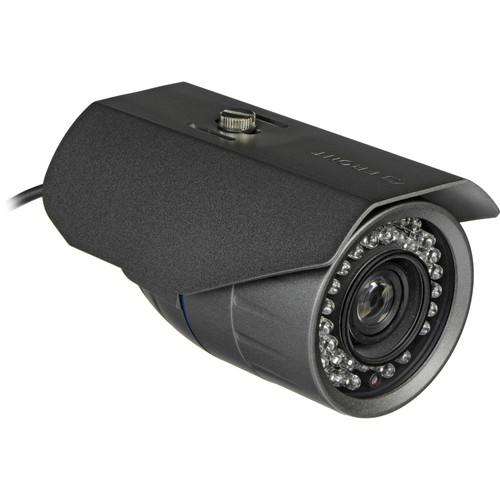

User Manual for Honeywell HB273H Performance Series 960H True Day Night Outdoor IR Bullet Camera Click to enlarge the picture
Contents of the user manual for the Honeywell HB273H Performance Series 960H True
- Product category: Wired Analog & HD Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired Analog & HD Cameras
|
User manual for the Honeywell HB273H Performance Series 960H True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Honeywell's HB273H Performance Series 960H True Day/Night Outdoor IR Bullet Camera has an optimized image sensor that produces 700 TVL resolution images with minimal noise in normal to low light conditions. A 9 to 22mm auto-iris varifocal lens provides a wider depth of field and dynamic range, while the 32x digital zoom focuses the camera to a specific area of interest. To view and record video capture, simply connect this camera to a TV or a monitor and a DVR via a BNC connection.
During the day the camera captures color video and thanks to its Smart IR technology, transitions to black and white at nighttime. The feature coupled with forty-two built-in IR LEDs allows the camera to capture clear video in darkness within a range of 100', while minimizing blur and distortion. Additionally, the 3D Digital Noise Reduction feature allows the camera to provide clear images of both still and moving objects under low-light conditions.
Within an IP66 weatherproof rated housing, this camera is built to operate in harsh environments and withstand dust and rain. It mounts directly to a ceiling or wall with just three screws, and includes a multidirectional bracket that offers manual 75° and 360° pan and horizontal rotation which can be set or adjusted by the owner. - General Overview
-
- 700 TVL resolution
- Varifocal, auto-iris lens
- Focal length: 9 to 22mm
- Aperture: f/1.8
- 32x Digital Zoom
- Wide Dynamic Range
- Night vision up to 100'
- Motion detection
- Privacy masking
- Defog function
- IP66 dust and water-resistant camera housing
- Defog
- This camera features an On/Off defogging function. The defog function improves the clarity of images captured in poor weather conditions, such as fog, smoke, rain, and snow.
- Motion Detection
- There are four motion detection zones that can be enabled or disabled individually. You have the ability to move the motion detection region anywhere on the field of view, and even opt to overlap regions. This feature also allows you to set sensitivity parameters, so you can better avoid false alarms, and conserve valuable storage space on a connected DVR.
- Night Vision
- This camera's Smart IR technology allows infrared light to pass through the lens and hit the sensor as light levels diminish. When these IR waves are detected, the camera automatically switches from color video capture to black and white video. The camera supports Night Vision within a range of 100'.
- Privacy Masking
- Privacy zone masking can be applied to a monitor to protect privacy. Create up to 8 privacy masks to conceal private objects and areas such as windows of domestic properties or car number plates which are within the camera's range of vision, but not privy to surveillance.
- Imaging Controls
- This camera's management interface features Wide Dynamic Range technology to compensate for issues of extreme backlighting, and Digital Noise Reduction to enhance digital image processing while reducing grain and distortion. It also gives users the ability to set color, saturation, brightness, white balance, and other imaging display parameters.
UPC: 886618205644 In the Box Honeywell HB273H Performance Series 960H True Day/Night Outdoor IR Bullet Camera Multidirectional Bracket Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HB273H Performance Series 960H True Day Night Outdoor IR Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HB273H Specs | Video Standard | NTSC | | Scanning System | 2:1 interlaced | | Sync System | Internal | | S/N Ratio | AGC off, weight on: 52 dB | | Automatic Electronic Shutter (AES) | 1/60 to 1/100,000 sec | | Imaging Sensor | 1/3" Sony 960H CCD | | Lens Type | Varifocal, auto iris | | Focal Length | 9 to 22mm | | Aperture | f/1.8 | | Viewing Angle | Horizontal: 30.6 (wide) to 14.0° (tele)
Vertical: 22.6 (wide) to 10.5° (tele) | | Video Resolution | 700 TVL | | Number of Pixels | 1020 × 508 | | Number of IR LEDs and Range | 42 LEDs
Up to 100' (30 m), depending on scene reflectance | | IR Wavelength | 850 nm | | Sense-Up | Automatic, 2x to 256x | | Minimum Illumination | Auto Gain Control on: 0.1 lux at f/1.8
IR LEDs on: 0 lux | | Power Consumption | IR LEDs on: Max. 10W | | Input Voltage | 12 VDC, 24 VAC ± | | Connectors | 1 x BNC 1.0 Vp-p, composite at 75 ohms
1 x auxiliary 2-pin connector for video test cable
1 x 2.1mm power input plug | | Emissions | FCC, Part 15B, Class A, EN 55022 | | Immunity | EN 50130-4 | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Relative Humidity | 0 to 95%, non-condensing | | Housing Material | Die-cast aluminum | | Weatherproof Rating | IP66 | | Dimensions | 3.58 × 3.15 × 5.51" (91 × 80 × 140 mm) | | Weight | 1.3 lb (0.59 kg) | | | | Package Weight | 1.78 lb | | Box Dimensions (LxWxH) | 7.6 x 7.6 x 4.75" |
