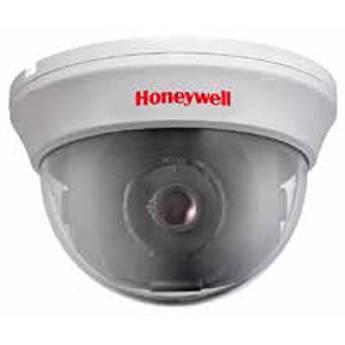

User Manual for Honeywell HD4UH Ultra Wide Dynamic VFAI True Day Night Outdoor Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Honeywell HD4UH Ultra Wide Dynamic VFAI
- Product category: Wired Analog & HD Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired Analog & HD Cameras
|
User manual for the Honeywell HD4UH Ultra Wide Dynamic VFAI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The HD4UH Ultra Wide Dynamic VFAI True Day/Night Outdoor Mini Dome Camera from Honeywell utilizes a 1/3" 1.3MP CMOS image sensor and 2.8 to 12mm varifocal auto iris lens to provide a wide range of video surveillance options. The HD4UH camera offers true color reproduction and enhanced low-light performance, making it a suitable solution for a range of indoor and outdoor surveillance environments, including airports, university campuses, hospitals, schools, and in government and commercial buildings. - Image Quality
-
- 1/3" 1.3MP CMOS image sensor
- High resolution image (800 TVL)
- Wide dynamic range (120dB maximum)
- 3D digital noise reduction
- Backlight compensation and highlight masking
- 2.8 to 12mm varifocal auto iris lens
- 24-Hour Surveillance
-
- True Day/Night with removable IR cut filter for color pictures by day and black-and-white pictures at night
- Excellent low-light performance (0.14 lux color, 0.03 lux B&W)
- Performance in Variable Light Conditions
-
- Weatherproof, impact-resistant housing (IP66)
- Built-in heater for cold weather operation down to -40°F (-40°C)
- Breather vent prevents condensation buildup
- Designed for Easy Installation
-
- Compact design
- Camera converts to a surface or flush mount for direct installation to a ceiling or wall
- 3-axis rotation for precise camera positioning
- Second video output and on-board OSD controller for on-site adjustments
UPC: 886618222719 In the Box Honeywell HD4UH Ultra Wide Dynamic VFAI True Day/Night Outdoor Mini Dome Camera Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HD4UH Ultra Wide Dynamic VFAI True Day Night Outdoor Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HD4UH Specs | | | Video Standard | NTSC | | Image Sensor | 1/3" 1.3 MP CMOS | | Number of Pixels | 1280 x 1024 | | Minimum Illumination | Color: 0.14 lux @ f/1.4, 30 IRE
B&W: 0.03 lux @ f/1.4, 30 IRE | | Horizontal Resolution | 800 TVL | | Video Out | 1.0 V p-p, composite @ 75 Ohms | | Sync System | Internal | | S/N Ratio | 55 dB or more (AGC off) | | AGC (Automatic Gain Control) | Low/Mid/High/Custom | | Automatic Electronic Shutter (AES) | 1/60 to 1/60,000 sec | | Lens | 2.8 to 12mm, VFAI (varifocal auto iris), f/1.4 | | Gamma | 0.45 | | Sens-up | 2x to 32x | | 3D-DNR | Off/Low/Mid/High | | Motion Detection | 4 programmable zones | | Privacy Masking | 16 programmable zones | | White Balance | ATW/AWB/Push/Manual | | Wide Dynamic Range | Low/Normal/Mid/High | | Backlight Compensation | Low/Middle/High | | Defog | Auto/Manual | | | | Input Voltage | 12 VDC/24 VAC ±10% | | Power Consumption | 12 VDC: 9.0 W maximum (heater on)
24 VAC: 11.5 W maximum (heater on) | | | | Environmental | Operating: -40 to 131°F (-40 to 55°C)
Storage: -40 to 167°F (-40 to 75°C) | | Relative Humidity | 10 to 100%, condensing | | Weather Resistance | IP66-rated | | Connectors | Main Video: BNC (coax)
Aux Video: 2-pin connector
Power Input: 2.1 mm plug | | Regulatory | FCC, Part 15B, Class B | | Construction | Housing: Die-cast aluminum
Bubble: Polycarbonate | | Dimensions (Ø x D) | 5.74 x 4.35" (14.6 × 11.1 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 8.0 x 7.8 x 6.1" |
