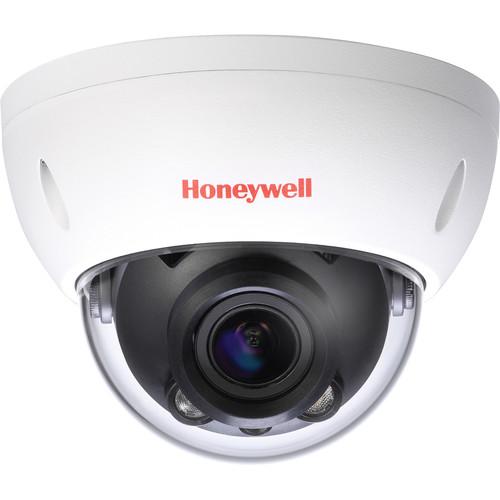

User Manual for Honeywell HD73HD1 Performance Series HQA 720p Outdoor Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell HD73HD1 Performance Series HQA 720p
- Product category: Wired Analog & HD Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired Analog & HD Cameras
|
User manual for the Honeywell HD73HD1 Performance Series HQA 720p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The Performance Series HQA 720p Indoor/Outdoor True Day/Night IR Mini Dome Camera from Honeywell utilizes a 1/2.9" progressive scan CMOS sensor and a 2.7-12mm VFMI lens to capture HD images at 1280 x 720 resolution. It features a compact design for quick installation and mounts directly to a ceiling or wall. Equipped with true day/night capability and Smart IR technology, it is suitable for schools, colleges, hospitals, commercial sites, industrial parks, airports, gate entrances, loading docks, and driveways. With the IP66-rated weatherproof and IK10-rated vandal-resistant housing, this camera is suitable for indoor as well as outdoor applications. - HD images with 1/2.9" 1MP sensor
- Long distance transmission over coaxial cables with low attenuation and latency (up to 1640' over RG59)
- Vivid color pictures by day and clear black-and-white pictures at night
- Low-light performance (0.05 lux color, 0 lux B&W)
- Smart infrared (IR) technology for even distribution of IR
- IR LEDs provide up to 100' of illumination (depending on scene reflectance)
- Uses existing BNC cabling (no rewiring required)
UPC: 886618217944 In the Box Honeywell HD73HD1 Performance Series HQA 720p Outdoor Mini Dome Camera with Night Vision Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HD73HD1 Performance Series HQA 720p Outdoor Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HD73HD1 Specs | | | Video Standard | NTSC | | Scanning System | Progressive | | Image Sensor | 1 MP 1/2.9" CMOS | | Number of Pixels | H x V: 1280 x 720 | | Minimum Illumination | 0.05 lux at f/1.4 (AGC On)
0 lux (IR LEDs On) | | Video Output | 1-channel BNC HQA 720p | | Video Frame Rate | 720p at 30 fps | | Sync System | Internal | | Automatic Electronic Shutter (AES) | 1/60 to 1/100,000 sec | | Lens Type | 2.7-12mm VFMI | | Horizontal Angle of View | 93 to 35° | | IR LEDs | 2 LEDs | | IR Illumination | Up to 100' (30 m) depending on scene reflectance | | Day/Night | Auto with ICR | | Digital Noise Reduction (DNR) | Auto (2D) | | | | Input Voltage | 12 VDC ±25% | | Power Consumption | 3.2 W maximum (IR LEDs On) | | | | Temperature | Operating: -22 to 140°F / -30 to 60°C | | Relative Humidity | 10 to 100%, condensing | | Protection Level | IP66 and IK10 | | | | System Compatibility | HRHM:
H.264 4-Ch 1080p HQA DVR
HRHH:
H.264 4/8/16-Ch 1080p HQA DVR | | | | Connectors | Video Output: BNC connector
Power Input: 2.1 mm plug | | Construction | Die-cast aluminum housing | | Dimensions | 4.8 x 3.5" / 122.0 x 89.0 mm | | Weight | 15.8 oz / 449 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.7 x 6.2 x 5.4" |
