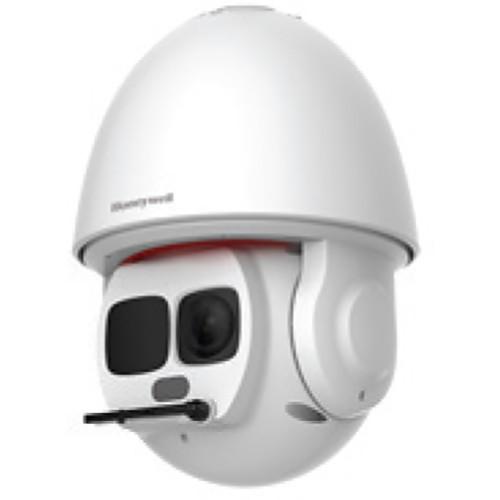

User Manual for Honeywell HDZ Series 2MP Outdoor Network PTZ Camera with 6-180mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell HDZ Series 2MP Outdoor Network
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell HDZ Series 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white HDZ Series 2MP Outdoor Network PTZ Camera from Honeywell provides 1080p (1920 x 1080) resolution video at full frame rate, a 360° continuous rotation function, and a zoom lens which combine to give you the flexibility to clearly view a target area with desired width and depth. It also features a 1/1.9" progressive scan CMOS sensor that offers accurate color rendition through a wide variety of lighting conditions.
The HDZ302LIW camera supports the ONVIF Profile S specification for interoperability between network video products. In addition, the camera supports PoE (Power over Ethernet) or 24 VAC to power the unit. In the event of a network failure, the camera has the option to record captured video to a microSD (card not included), providing an additional level of security to the user. It is also equipped with True WDR (Wide Dynamic Range), which is suitable for environments with high contrast and changing light conditions.
The camera is housed in an IP67-rated water-resistant dome to prevent the camera from heavy rain and extended operating temperatures. The camera supports quad video streams and features multiple compression formats (H.264/MJPEG/MPEG4) with rates up to 1080p at 30 fps/720p at 60 fps. The HDZ302LIW is suited for large-scale surveillance of cities, roads, airports, government facilities, schools and campuses, casinos, industrial environments, and anywhere detailed surveillance is essential. - Full HD 1080p resolution, 25/30 fps image with a 1/1.9", 2MP sensor
- True WDR 120dB ensures glare-free images
- True Day/Night provides vivid color images by day and clear B&W images at night with ICR
- 6-180 mm, f/1.6-f/4.8, 30x optical zoom lens with 360° continuous rotation for the flexibility to clearly view the target area with desired width and depth
- H.264 and MJPEG codec, triple stream support
- IR LEDs provide up to 492 of illumination in dimly lit or dark scenes (depending on scene reflectance)
- Smart IR technology provides even distribution of IR
- Security features include individual signed certificates and data encryption
- Can be retrofitted on many existing DVR/NVR installations without requiring additional storage
- On-board camera storage up to 128GB microSD card (sold separately)
- EIS (Electronic image stabilizer)
UPC: 886618232831 In the Box Honeywell HDZ Series 2MP Outdoor Network PTZ Camera with 6-180mm Varifocal Lens & Night Vision Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HDZ Series 2MP Outdoor Network PTZ Camera with 6-180mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HDZ Series Specs | | | Image Sensor | 1/1.9" Sony Progressive CMOS | | Optical Zoom | 30x | | Digital Zoom | 16x | | Number of Pixels | 1920 x 1080 (1080p) | | WDR Mode | 120 dB | | S/N Ratio | >50 dB (AGC off) | | Minimum Illumination | Color: 0.005 lux
B&W: 0.0005 lux at f/1.6; 0 lux IR On | | IR Control | On (Zoom priority/Manual)/Off | | IR Range | Up to 492' (150 m) | | Focal Length | 6-180mm | | Maximum Aperture | f/1.6 - f/4.8 | | Focus Modes | Manual/Auto/Semiauto | | Horizontal Field of View (degree) | 61.2 to 2.32° | | White Balance | Auto/Indoor/Outdoor/ATW/Manual | | AGC | Auto (Max gain limit settings for auto) / Manual | | Iris Control | Auto / Manual | | Electronic Shutter | 1/1 to 1/30,000 sec | | Backlight Compensation | BLC/HLC/WDR | | EIS | On/Off | | Defog | On/Off | | Day/Night | Auto/Colour/B&W | | | | Pan Travel | 360° endless | | Tilt Travel | -10 to 90°, auto flip 180° | | Manual Pan Speed/sec | Up to 200°/sec | | Manual Tilt Speed/sec | Up to 120°/sec | | Presets | 250 | | Preset Accuracy | 0.225° | | Preset Speeds | Pan: Up to 200°/sec
Tilt: Up to 200°/sec | | Tours | 8 | | Auto Pan | 1 | | Scan | 1 | | Pattern | 5 | | Privacy Masking | 24 | | Motion Detection | On/Off | | Image Rotation | Flip | | Audio In / Out | 1 / 1 | | Alarm Input / Output | 7 / 2 | | Auto Tracking | Auto/Manual | | Event | Motion Detect; Video Tamper; Audio Detect; No SD card; SD card error; SD card capacity warning; Network disconnection; IP address conflict; Illegal access | | Event Notification | Record (SD card and FTP), Relay output, Email, Preset, Tour, Pattern, Snapshot | | Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish | | | | Video Compression | H.264 / MJPEG / MPEG4 | | Video Streaming | Primary Stream: 1080p at 30 fps/720p at 60 fps
Second Stream: D1/CIF at 30 fps
Third Stream: 720p/D1/CIF at 30 fps | | Video Resolution | Up to 1920 x 1080p | | Frame Rates | 720p: Up to 60/50 fps
1080p: Up to 30/25 fps | | Audio Compression | G.711/G.711Mu | | Audio Streaming | Full-duplex, Simplex | | Interface | RJ45, 10/100 Mbps Ethernet | | Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, QoS, NTP, NFS | | Maximum User Access | 20 users | | Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log | | microSD Card Slot | Support for microSD up to 128 GB (card not included)
Event trigger recording
Continuous and scheduled recording
Automatic recording when network fails | | Supported Web Browsers | Internet Explorer (8.0+) | | Supported OS | Windows 7 32-bit/64-bit | | Communication | ONVIF Profile S | | | | Power Source | 24 VAC ±25%, 3A and High PoE (Class 5) | | Frequency | 50/60 Hz | | Power Consumption | 24 W; 32 W (IR on) | | | | Temperature | -40 to 158°F (-40 to 70°C) | | Relative Humidity | Less than 90%, non-condensing | | IP Rating | IP67 | | | | Construction Material | Aluminum | | Wiper | Silicone rubber | | Dimensions (Ø x H) | 9.45 x 15" (24 x 38 cm) | | Weight | 13.9 lb (6.3 kg) |
