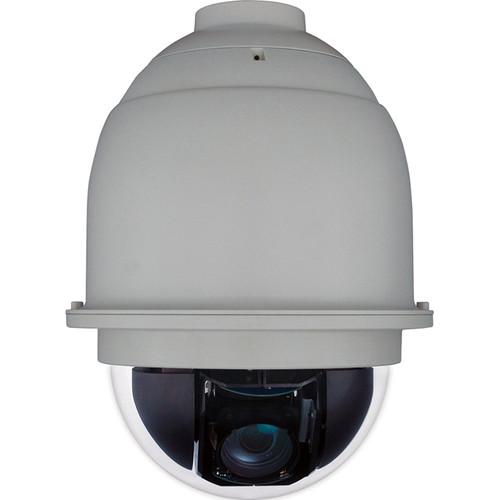

User Manual for Honeywell HDZ Series HDZ30HD 1080p PTZ Network Pendant Dome Camera with 4.3-129mm Lens Click to enlarge the picture
Contents of the user manual for the Honeywell HDZ Series HDZ30HD 1080p PTZ
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell HDZ Series HDZ30HD 1080p PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The HDZ Series HDZ30HD 1080p PTZ Network Pendant Dome Camera from Honeywell uses a 1/2.8" progressive scan CMOS sensor and 4.3-129mm varifocal lens with 30x optical zoom to record up to 1920 x 1080 video at 30 fps. With TWDR (True Wide Dynamic Range), this camera is suitable for environments with high contrast and changing light conditions. It supports the ONVIF Profile S specification for interoperability between network video products. In the event of a network failure, the camera has the option to record captured video to a microSD card (not included), providing an additional level of security to the user. The unit can be powered via PoE+ (Power over Ethernet) or 24 VAC input. - 1/2.8" progressive scan image sensor
- 30x optical zoom / 12x digital zoom
- Auto, manual, and P-iris mode
- Frame rates up to 30 fps at 1080p and up to 60 fps at 720p
- TWDR (True Wide Dynamic Range) and EIS (Electronic Image Stabilizer)
- 360° continuous rotation with preset speed up to 400°/sec
- Multiple selectable compression formats (H.264/MJPEG)
- Digital compression parameters for the four video streams are independently configurable
- Onboard camera storage with up to 64GB microSD card support (card available separately)
- Supports both dynamic and static IP addresses
- ONVIF Profile S compatible
- Compatible with 1.5" NPT mounts (accessories available separately)
- Operates via 24 VAC or PoE+ power input
In the Box Honeywell HDZ Series HDZ30HD 1080p PTZ Network Pendant Dome Camera with 4.3-129mm Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HDZ Series HDZ30HD 1080p PTZ Network Pendant Dome Camera with 4.3-129mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HDZ30HD Specs | | | Scanning System | NTSC | | Image Sensor | 1/2.8" Sony progressive CMOS | | Optical Zoom | 30x | | Digital Zoom | 12x | | Number of Pixels | H x V: 1920 x 1080 (1080p) | | Wide Dynamic Range | Shutter: On/Off (>96 dB) | | S/N Ratio | >50 dB (AGC Off) | | Minimum Illumination | Color: 0.02 lux at f/1.6, 50 IRE
B&W: 0.005 lux at f/1.6, 50 IRE | | Lens | 4.3-129mm | | Iris Control | Auto/Manual/P-iris (f/9.6 to 16) | | Focus Modes | Manual/Auto (Continuous, PTZ Trigger, Zoom Trigger Focus) | | White Balance | Auto/Indoor/Outdoor/ATW/Manual | | Electronic Shutter | 1/10,000 to 1 sec | | AGC | Auto/Manual (Maximum gain limit settings for Full Auto, Shutter Priority, and Iris Priority modes) | | Back Light Compensation | On/Off | | | | Multi-Language | English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Czech, Polish, Japanese, Chinese | | Pan | 360° endless | | Tilt | -10 to 190° | | Manual Pan Speed/sec | 0.5 to 200°/sec | | Manual Tilt Speed/sec | 0.5 to 90°/sec | | Presets | 256 | | Preset Accuracy | 0.225° | | Preset Speeds | Up to 400°/sec | | Preset Tours | 8 | | Auto Pan | 4 | | Tours | Mimic: 8 | | Privacy Masking | 16 | | Pan & Tilt | Proportional: On/Off (Pan and tilt speed proportional to zoom ratio) | | Power Failure Auto Recover | Yes | | Functions | Home: Preset, Preset tour, Auto pan, Mimic tour | | Auto Flip | Mechanical/Digital/Off | | Digital Slow Shutter | On/Off | | Motion Detection | On/Off | | EIS | On/Off | | Wide Dynamic Range | Gamma: On/Off | | Day & Night | With ICR
Auto/On/Off | | Image Rotation | Flip/Mirror/Inverse/Portrait | | Noise Reduction | 2D/3D: On/Off | | Alarm | 4 x inputs, 2 x outputs | | Alarm Trigger | Preset, Preset tour, Auto pan, Mimic tour | | Event Notification | HTTP, FTP, SMTP | | | | Video Compression | H.264 (High Profile) / MJPEG | | Video Streaming | Quad Streaming: H.264 and MJPEG
Controllable frame rate and bandwidth
Constant or variable bit rate | | Video Resolution | Up to 1920 x 1080 | | Frame Rates | 720p: Up to 50/60 fps
1080p: Up to 25/30 fps | | Audio Compression | G.711/G.726 ADPCM | | Audio Streaming | Full-duplex, Simplex | | | | Interface | RJ45, 10/100 Mb/s Ethernet | | Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE 802.1x, QoS, ONVIF, SSL, DNS, DDNS | | Number of Simultaneous Users | 3 at 1080p / 5 at D1 (NTSC: 720 x 480) | | Security | User account and password protection
HTTPS, IP Filter, IEEE 802.1x | | microSD Card Slot | Support for microSD card up to 64 GB (only applied on SanDisk SDXC 64 GB), card not included
Event trigger recording
Continuous and scheduled recording
Automatic recording when network fails | | Supported Web Browsers | Internet Explorer (8.0+) | | Supported OS | Windows 7 32-/64-bit | | Communication | ONVIF Profile S support | | | | Power Source | 24 VAC ±10% and PoE+ | | Power Consumption | 25.5 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Relative Humidity | 0 to 90%, non-condensing | | | | Emissions | EN55022, FCC Part 15B | | Immunity | EN50130-4 | | Safety | EU: EN60950-1, EN60950-22
UL/CSA 60950-1 | | RoHS | EN50581 | | | | Dimensions | 7.6 x 11.1" / 192 x 281 mm | | Weight | 4.85 lb / 2.2 kg |
