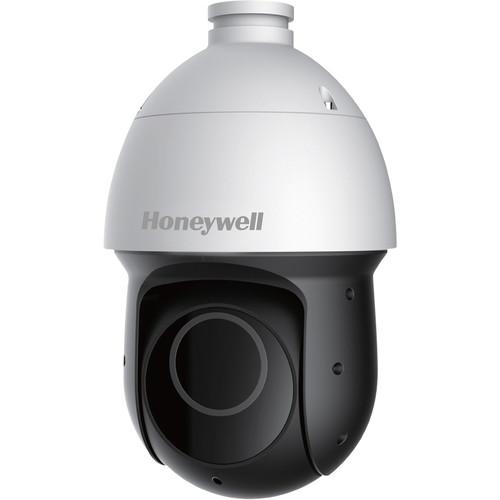

User Manual for Honeywell HDZP252DI 2MP Outdoor PTZ Network Camera with 4.8-120mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell HDZP252DI 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell HDZP252DI 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The HDZP252DI 2MP Outdoor PTZ Network Camera from Honeywell utilizes a 1/2.8" Exmor CMOS sensor and a 4.8-120mm varifocal lens to capture video at a resolution up to 1920 x 1080. It supports H.264, H.265, and MJPEG compression formats with triple streaming. The true Day/Night feature provides vivid color images by day and clear B&W images at night with ICR. The camera supports up to 128GB microSDXC cards for onboard storage.
The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, network failure, and/or camera tampering. Automated responses include sending a notification through email or HTTP, sending a still image of the event through email or FTP, and recording a video clip of the event to a configured microSDXC card (sold separately). - True WDR 120 dB ensures glare-free images
- 25x optical zoom lens with 360° continuous rotation
- Six IR LEDs provide up to 328' of illumination in low light or at night
- IP66-rated water-resistant housing
- Built-in analytics such as face detection
- Security features include individual signed certificates and data encryption
- Built-in PoE (Power over Ethernet) eliminates the need for a separate power supply and associated wiring
- Motorized pan, tilt, and zoom adjustments
- Auto focus through web client
UPC: 886618248696 Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HDZP252DI 2MP Outdoor PTZ Network Camera with 4.8-120mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HDZP252DI Specs | | | Image Sensor | 1/2.8" Exmor CMOS | | Optical Zoom | 25x | | Digital Zoom | 16x | | Resolution | 1920 x 1080 | | Wide Dynamic Range | 120 dB | | S/N Ratio | >50 dB (AGC Off) | | Minimum Illumination | Color: 0.005 lux
B&W: 0 lux at f/1.6 (with IR LEDs On) | | Focal Length | 4.8-120mm | | Maximum Aperture | f/1.6 to f/4.4 | | Focus Modes | Manual/Auto | | IR Distance | Up to 328' (100 m) | | Horizontal Angle of View | 59.2 to 2.4° | | White Balance | Auto/Indoor/Outdoor/ATW/Manual | | Exposure Mode | Iris priority / Shutter priority / Gain priority / Manual | | Electronic Shutter Speed | 1/1 to 1/30,000 sec | | Backlight Compensation | BLC/HLC/WDR | | Defog | On/Off | | Noise Reduction | 2D/3D | | Day/Night | Auto (ICR) / Color / B&W | | Wide Dynamic Range | 120 dB | | Pan Travel | 360° endless | | Tilt Travel | -15 to 90°, auto flip 180° | | Manual Pan Speed/sec | Up to 200°/sec | | Manual Tilt Speed/sec | Up to 120°/sec | | Presets | 300 | | Preset Speeds | Pan: Up to 240°/sec
Tilt: Up to 200°/sec | | Tours | 8 | | Pattern | 5 | | Privacy Masking | 24 | | Motion Detection | On/Off | | Image Rotation | Flip | | Audio In/Out | 1 x input
1 x output | | Alarm Input / Output | 2 x input
1 x output | | Video Analytics | Face detection | | Event | Motion detection, audio detection, SD card capacity warning | | Event Notification | Record (SD card and FTP), relay output, email, preset, tour, pattern, snapshot | | Languages Supported | English, Japanese | | | | Video Compression Format | H.265/H.264/MJPEG | | Video Streaming | Primary Stream: 1080p/720p at 60/50 fps
2nd Stream: D1/CIF at 30/25 fps
3rd Stream: 720p/D1/CIF at 30/25 fps | | Video Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Audio Compression | G.711a/G.711Mu/AAC/G.726 | | Audio Streaming | Full-duplex, Simplex | | Interface | RJ45, 10/100 Mb/s Ethernet | | Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP, Bonjour, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF | | Security | User account and password protection, HTTPS, IP filter, IEEE 802.1x, Digest authentication, User access log, Hardware security chipset protection | | Maximum User Access | 20 users | | Local Storage | Supports microSD card up to 128 GB (card not included) | | Functions | Event trigger recording, continuous and scheduled recording, automatic recording when network fails | | Supported Web Browsers | Internet Explorer (11.0+) | | Supported OS | Windows 7 32-bit/64-bit | | ONVIF Conformance | Profile S and G | | | | Power Supply | 12 VDC (
