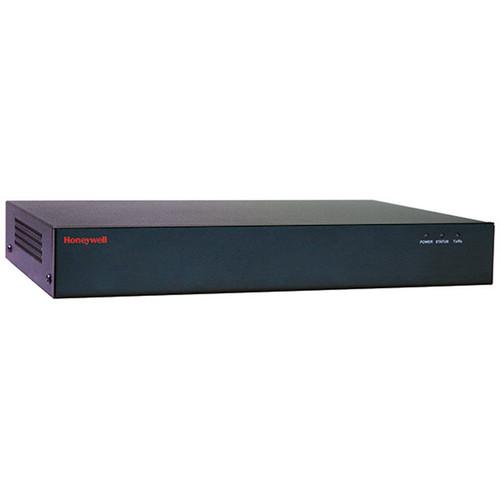

User Manual for Honeywell HVE8 8-Channel H.264 Video Audio Encoder Click to enlarge the picture
Contents of the user manual for the Honeywell HVE8 8-Channel H.264 Video Audio
- Product category: Video Encoders & Decoders Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Video Encoders & Decoders
|
User manual for the Honeywell HVE8 8-Channel H.264 Video Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The HVE8 8-Channel H.264 Video/Audio Encoder from Honeywell allows you to connect up to 8 analog cameras into an IP network. This encoder supports H.264, MPEG4, MPEG2, and MJPEG video compression formats for reduced bandwidth and storage requirements. It is capable of encoding up to 30 fps at 4CIF resolution with dual streaming. This encoder can also record audio and features an audio output to perform bidirectional audio communication.
The encoder can control PTZ cameras through the RS-485 port and supports third-party PTZ protocols. Alarm inputs and relay outputs are available to trigger events on an NVR and to control external devices. These alarms and events can be reported to the NVR, and can also be sent either by email or via FTP uploads directly from the encoder.
This 8-channel encoder can accommodate a SATA hard drive up to 4TB (not included) for storage of alarm-triggered, continuous, and scheduled recorded footage. Recorded or live video can be viewed remotely through an intuitive web browser (IE, Firefox, Chrome, or Safari) that supports HTTPS for increased security. - Supports H.264, MPEG4, MPEG2, and MJPEG encoding
- Dual streaming capabilities
- Up to 4TB hard drive (not included)
- Embedded motion detection and privacy zone
- Customizable text overlay
- Alarm input and relay output
- Supports RS-485 PTZ and multiple third-party PTZ protocols
- Exception and system logging
- Embedded web browser, supports IE, Firefox, Chrome, and Safari
UPC: 886618181641 In the Box Honeywell HVE8 8-Channel H.264 Video/Audio Encoder Rackmount Bracket SATA Cable and HD Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell HVE8 8-Channel H.264 Video Audio Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HVE8 Specs | | | Video Compression | H.264, MPEG4, MPEG2, MJPEG | | Video Input | 8 channel | | Audio Compression | G.711u | | Audio Input | 8 channel | | 2-Way Audio | 1 channel | | Audio Output | 1 channel | | Recording Resolution | 4CIF, 2CIF, CIF, QCIF | | Frame Rate | H.264, MPEG4, MPEG2 Encoding: 25 fps (P) / 30 fps (N)
MJPEG Encoding: 15 fps | | Video Bit Rate | 32 to 3072 kb/s, or user defined (maximum 8192 Mb/s) | | Audio Bit Rate | 64 kb/s | | Dual Streaming | Supported | | Stream Type | Video/Video + Audio | | Data Storage | Type: NAS, IPSAN, local SATA hard drive
Capacity: Up to 4 TB capacity for each disk | | Network Protocols | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKS v4/v5, PSIA, ONVIF, HIKCGI, netFilter, HVEDDNS | | | | Power Supply | 12 VDC | | Power Consumption | ≤30 W | | | | Power | Screw terminal block | | Video Input | BNC (1.0 V p-p, 75 Ohms) | | Audio Input | 3.5 mm interface (20-28AWG) (2.0 V p-p, 1 kOhm) (Line Input) | | Audio Output | 3.5 mm interface (Linear, 600 Ohms) | | 2-Way Audio | 3.5 mm interface (2.0 V p-p, 1 kOhm) (Line Input) | | Network Interface | 1 x RJ45 10/100/1000 Mbps adaptive Ethernet interface | | Serial Interface | 1 x Half-duplex RS-485
1 x RS-232 interface
Spring terminal block (20 to 28 AWG) | | Alarm Input | 8 x Spring terminal block (20 to 28 AWG) | | Alarm Output | 4 x Spring terminal block (20 to 28 AWG) | | Data Storage | 1 x SATA interface Available Separately | | | | Compatible with | ONVIF Profile S | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -4 to 149°F (-20 to 65°C) | | Relative Humidity | 10 to 90%, non-condensing | | | | Emissions | FCC, EN 55022 | | Immunity | EN 50130-4 | | Safety | EN 60950-1
North America UL listed to UL/CSA 60950-1 | | | | Construction | Steel chassis | | Dimensions | 12.4 x 1.8 x 7.9" (31.5 x 4.5 x 20 cm) | | Weight | ≤4.4 lb (≤2 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 20.5 x 11.8 x 5.2" |
