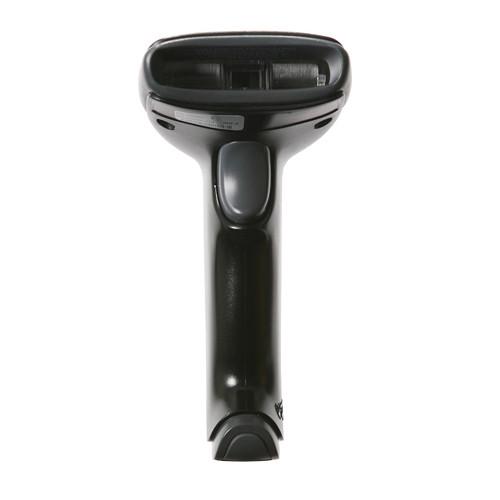

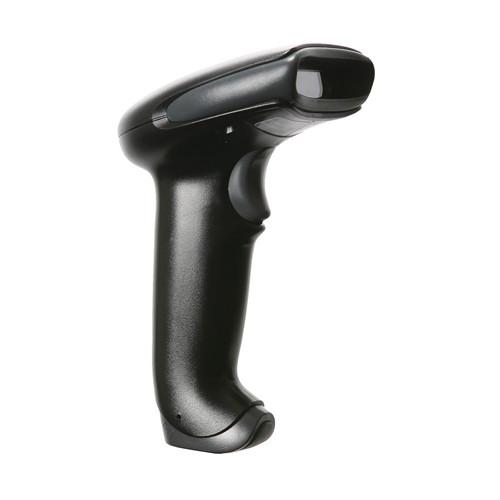

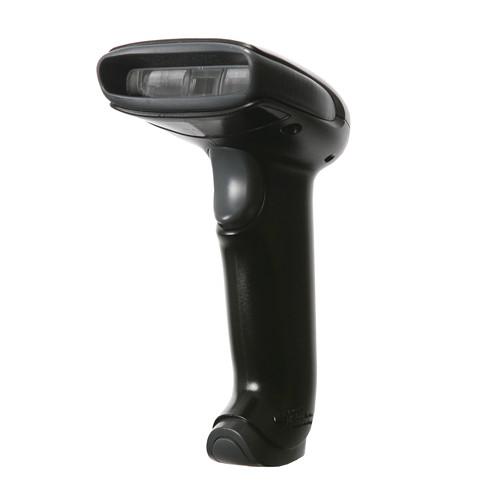

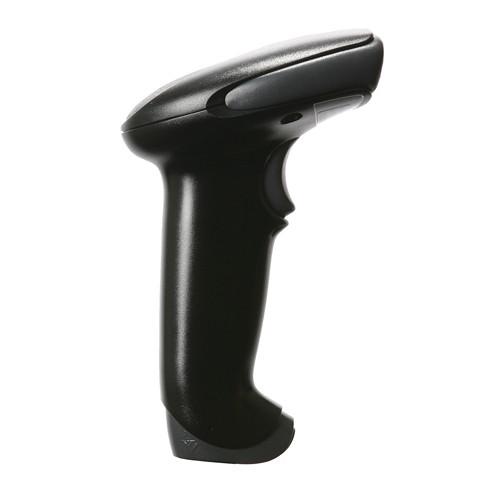

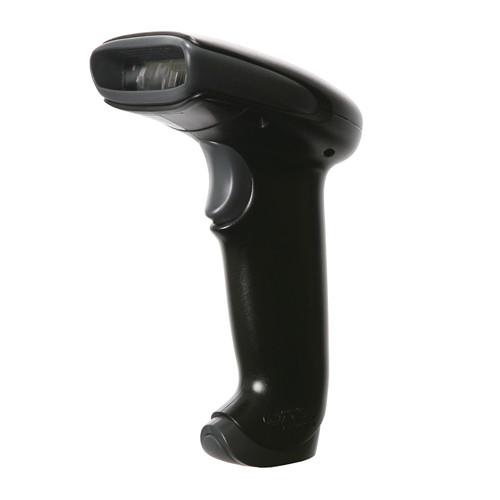

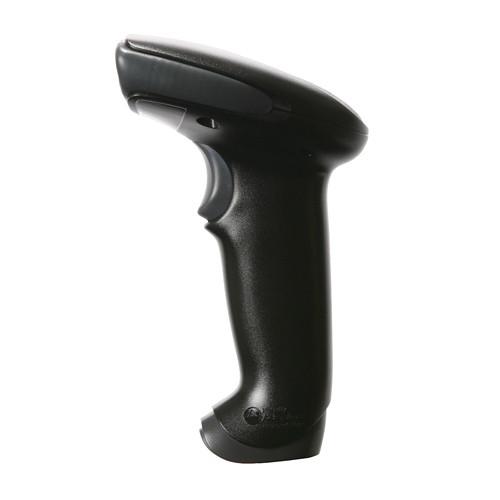

Product description The Hyperion 1300G Handheld Linear-Imaging Scanner from Honeywell is an ergonomic handheld barcode scanner. This versatile unit can quickly read a barcode up to 18" away, as well as read a high density barcode up close. Because the unit has no moving parts, it has no parts to wear out, and is more durable than scanners with moving parts.
The scanner supports all popular 1D and GS1 DataBar symbologies, and thanks to its automatic interface detection and configuration, there is no need to scan programming barcodes. A 9.8' USB cable is included with this kit. In the Box Honeywell Hyperion 1300G Handheld Linear-Imaging Scanner USB Kit (Black) CBL-500-300-S00 USB Cable (9.8') Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Hyperion 1300G Handheld Linear-Imaging Scanner USB Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1300G Specs | | | Input Voltage | 5 V +/-5% | | Operating Power | 1000 mW; 200 mA (typical) @ 5 V | | Standby Power | 625 mW; 125 mA (typical) @ 5 V | | | | Scan Rate | Up to 270 scans per second | | Scan Pattern | Single line | | Motion Tolerances | 20.0" (50.8 cm) per second | | Print Contrast | 20% minimum reflectance difference | | Pitch | 65° | | Skew | 65° | | Decoding Formats | Reads standard 1D and GS1 DataBar symbologies | | Performance | Resolution: 3.0 mil
5.0 mil: 50 mm - 200 mm (2.0˝ - 8˝)
7.5 mil: 40 mm - 300 mm (1.5˝ - 12˝)
10 mil: 30 mm - 380 mm (1.0˝ - 15˝)
13 mil: 10 mm - 460 mm (.5˝ - 18˝)
20 mil: 30 mm - 660 mm (1.0˝ - 26˝)
Performance may be impacted by bar code quality and environmental conditions | | | | Computer Interface | Multi-Interface/includes RS232 (TTL +5V, 4 Signals)/KBW/USB (HID keyboard, serial, IBM OEM); RS-232C (±12 V) and IBM RS485 supported via adapter cable | | System & Software Requirements | Will work on all MAC and PC operating systems | | USB Cable | Straight, type A, 9.8' (3.0 m) | | | | Operating Temperature | 32°F to 122°F (0°C to 50°C) | | Storage Temperature | -40°F to 140°F (-40°C to 60°C) | | Humidity | 0 to 95%, non-condensing | | Drop Resistance | Designed to withstand 50 drops to concrete from 4.9' (1.5 m) | | Sealing | IP41 | | Lighting Conditions | 0 to 70,000 lux (direct sunlight) | | | | Dimensions | 5.9 x 4.4 x 3.1" (150.0 x 112.0 x 79.0 mm) | | Weight | 5.6 oz (160.0 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.5 x 4.4 x 2.4" |
