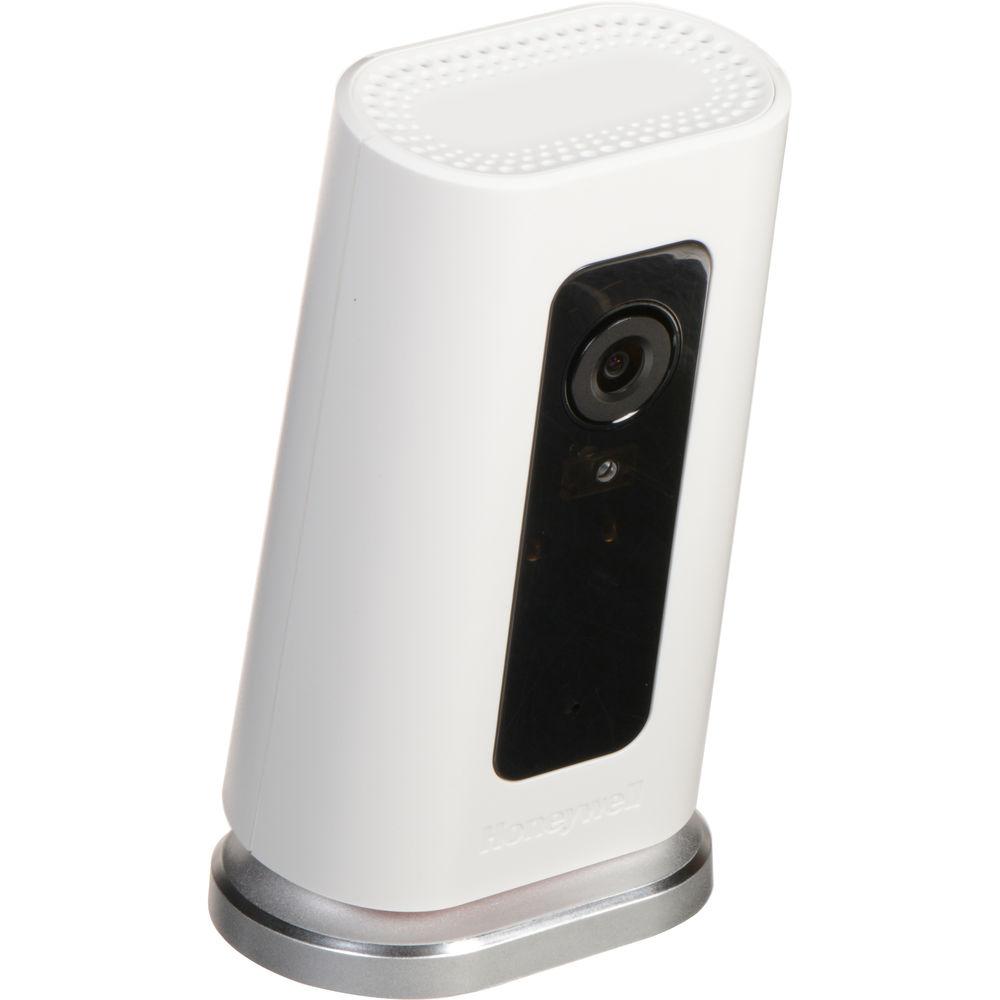

Product description Monitor your home or office with the IPCAM-WIC1 720p Wi-Fi Box Camera with Night Vision from Honeywell. This indoor camera has a 1MP 1/4" CMOS sensor for a resolution of 1280 x 720 at up to 30 fps. Integrated IR LEDs deliver night vision up to 16.5'. A 108° horizontal field of view ensures coverage over a wide area. Additionally, the built-in microphone and speaker enable two-way communication. The on-board memory card slot supports microSD/SDXC/SDHC cards up to 64GB. An 8GB microSD card is included.This device is compatible with the Honeywell Total Connect app for remote access and control via iOS and Android devices. Cloud video storage is also available. Visit the manufacturer's website for pricing on the Honeywell Total Connect app and Cloud storage options. - Motion detection with two activity zones
- Built-in light sensor is designed to detect light more accurately
- microSD card provides backup storage in the event of an internet outage
- QR code-based setup with compact hardware and multiple mounting options simplifies installation
- Includes power supply, power supply adapter, 8GB microSD card, and mounting kit
UPC: 886618252105 In the Box Honeywell IPCAM-WIC1 720p Wi-Fi Box Camera with Night Vision Power Supply Power Supply Adapter 8GB microSD Card Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell IPCAM-WIC1 720p Wi-Fi Box Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell IPCAM-WIC1 Specs | Image Sensor | OV9732, 1 MP 1/4" CMOS | | Lens | f/2.0 (fixed focus) | | Field of View | Horizontal: 108°
Diagonal: 135°
| | Digital Zoom | 2 to 5x | | Motion Sensor | Motion detection with two activity zones | | Video Compression | H.264 and MJPEG | | Video Resolution | 1280 x 720 at 30 fps | | Video Streaming | H.264 and MJPEG | | Mechanical IR Cut Filter | Day/night mode switching | | IR Range | Up to 16.5' (5 m) | | IR LED | Enhances low-light performance | | Video Analytics | 2 active motion detection areas with different levels of sensitivity | | Analytics | Audio Analytics: Audio Detection | | Bluetooth | Low energy (BLE 4.0) | | Encryption | 256-bit AES | | Two-Way Audio | Built-in microphone and speaker | | Microphone Sensitivity | -50 dB | | Wi-Fi Connectivity | IEEE 802.11b/g/n
Single Band: 2.4 GHz
| | Interface | LED and buttons | | Memory Card Slot | microSD/SDXC/SDHC up to 64 GB | | Certification | CE/FCC listed | | LED Indicator | Network LED | | Reset Button | Push button | | Processors and Memory | SOC: RTL8197FS at 1 GHz
Flash: RTL8197FS 32 MB
SONIX98671: 16 MB
RAM RTL8197FS: 128 MB (Embedded)
SONIX98671: 32 MB (Embedded) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 90% (non-condensing) | | Power Supply | 5 VDC, 2 A | | Power Adapter | 100-240 VAC and 2 A switching power supply (micro-USB) system (processors and memory) | | Dimensions (W x H x D) | 2.5 x 4.4 x 1.8" (63.5 x 111.8 x 45.7 mm) | | Weight | Camera with Base: 4 oz (113.4 g)
Camera: 3 oz (85 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.4 x 5.5 x 2.2" |
