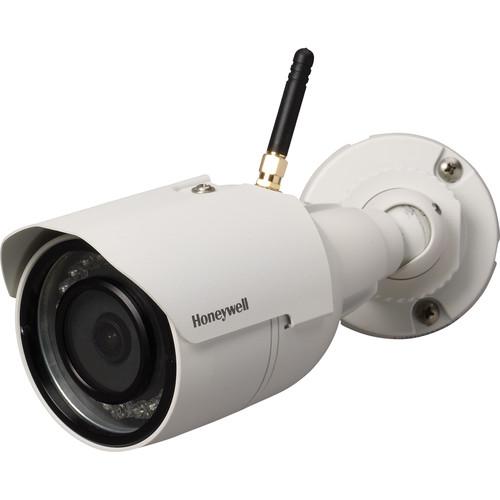

User Manual for Honeywell IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet
- Product category: Wireless Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wireless Cameras
|
User manual for the Honeywell IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Monitor your home or office with the IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet Camera with Night Vision from Honeywell. This camera has a 2MP 1/2.9" CMOS sensor for a resolution of 1920 x 1080 at up to 30 fps. Integrated IR LEDs deliver night vision up to 65'. A 113° horizontal field of view ensures coverage over a wide area. H.264 and MJPEG compression keep file sizes manageable while maintaining the best quality possible. An onboard memory card slot supports microSD/SDXC cards up to 64GB. An 8GB microSD card is included.
This device is equipped with 2.4 GHz Wi-Fi connectivity. Remote access and control via iOS and Android devices is possible via the Honeywell Total Connect app. Cloud video storage is also available. Both are available separately. - Four active motion detection zones with different levels of sensitivity
- Mechanical IR cut filter for day and night functionality
- Built-in light sensor is designed to detect light more accurately
- Image controls include auto white balance, auto gain control, sharpness, brightness, contrast, ACE, image quality, time stamp, and text overlay
- microSD card provides backup storage in the event of an internet outage
- QR code-based setup with compact hardware and multiple mounting options simplifies installation
- Includes power supply, power adapter (DC jack), 8GB microSD card, detachable antenna, extension cable, pigtail cable, mounting hardware, sunshield, and screw kit
- IP66-rated enclosure that is suitable for outdoor use
UPC: 886618252082 In the Box Honeywell IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet Camera with Night Vision Power Supply Power Adapter (DC Jack) 8GB microSD Card Detachable Antenna Extension Cable Pigtail Cable Mounting Hardware Sunshield and Screw Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell IPCAM-WOC1 1080p Outdoor Wi-Fi Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell IPCAM-WOC1 Specs | Image Sensor | Sony IMX323 2 MP 1/2.9" CMOS | | Lens | f/2.0 fixed focus | | Field of View | Diagonal: 117°
Horizontal: 113° | | Digital Zoom | Up to 10x | | Motion Sensor | Four active motion detection areas with different levels of sensitivity | | Video Compression | H.264 and MJPEG | | Max Video Resolution | 1920 x 1080 at 30 fps | | Video Streaming | H.264 and MJPEG | | Mechanical IR Cut Filter | Day/night mode switching | | IR Range | Up to 65' / 20 m | | IR LED | Enhances low-light performance | | Video Analytics | Multi-area motion detection | | Image Controls | AWB, AGC, sharpness, brightness, contrast, ACE, image quality, time stamp, and text overlay | | Bluetooth | Low energy BLE 4.0 | | Encryption | 256-bit AES | | Wi-Fi Connectivity | IEEE 802.11b/g/n (external antenna) | | Frequency Band | 2.4 GHz | | Interface | LED and buttons | | Storage | microSD/SDXC slot supports cards up to 64 GB (8 GB card included) | | Certification | FCC Class B, CE Mark, RoHS | | LED Indicator | Network LED | | Reset Button | Push button | | Processors and Memory | SOC: RTL8197FS at 1 GHz
Flash: RTL8197FS 32 MB / CXD4145GG 256 MB
RAM: RTL8197FS 128 MB / CXD4145GG 128 MB | | IP Rating | IP66 | | Operating Temperature | TBD | | Humidity | 10 to 90%, non-condensing | | Power Supply | 12 VDC / 2 A | | Power Adapter | 100-240 VAC and 2 A switching power supply | | Dimensions (L x W x H) | 8.2 x 3 x 4.3" / 208.3 x 76.2 x 109.2 mm | | Weight | 1.43 lb / 0.65 kg | | | | Package Weight | 2.845 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 4.25" |
