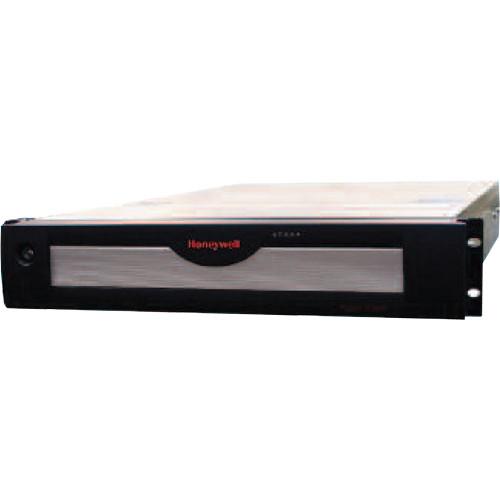

User Manual for Honeywell MAXPRO 32-Channel Network Video Recorder Click to enlarge the picture
Contents of the user manual for the Honeywell MAXPRO 32-Channel Network Video Recorder
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell MAXPRO 32-Channel Network Video Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 8TB Honeywell MAXPRO 32-Channel Network Video Recorder (Standard Edition) is an open, flexible, and scalable IP video surveillance system. This NVR when used in combination with high definition cameras serves as a high definition IP recording system, allowing you to monitor small to medium size installations.The MAXPRO NVR SE is an open platform and supports broad third party device integrations with support for PSIA and ONVIF (including Profile-S devices) standards, RTSP (real-time streaming protocol) standard, and native device integrations including 360° camera support. It also provides easy-to-use desktop clients and MAXPRO Mobile applications.The 8TB 32-Channel Network Video Recorder comes pre-installed with all the required software and is also pre-licensed for 32 channels. This, along with an easy, 3-click wizard to live video for auto configuration, makes installing an IP system quick and efficient without requiring any IT expertise. Also, simple and logical configuration pages make setup a breeze even for the novice installer.The NVR’s user interface is based on Honeywell’s flagship MAXPRO VMS user interface, which offers a rich user experience and is common across the MAXPRO NVR Family. It supports simultaneous recording, search, and system management for up to 32 IP cameras, including high definition formats. Multiple MAXPRO NVRs can be deployed for system expansion using a distributed architecture and is integrated with the MAXPRO Viewer multi-site software or MAXPRO VMS enterprise video management system.The 8TB 32-Channel Network Video Recorder utilizes a powerful processor and memory technology supporting multiple, simultaneous operations such as video recording, video viewing, or alarm monitoring. You can view live video while simultaneously performing searches.The Video Surround feature provides the ability to track subjects of interest as they move between areas covered by adjacent cameras by simply double-clicking on the panel where the subject is currently visible. Features such as the calendar, preview search options, and film strip view allows you to quickly search videos for scenes of interest and then export method transfers video to an authenticated video clip that is playable through Windows Media player. - Software
-
- MAXPRO NVR SE allows local or remote operations including live and recorded video monitoring, configuration, and system management in a single desktop client interface
- Support for mobile monitoring clients with MAXPRO Mobile applications
- Broad device integrations: Honeywell cameras and encoders, third party devices with support for PSIA and ONVIF (including Profile-S devices) standards, RTSP standard, and native device integration including the 360° camera support
- User-friendly Windows based interface to view HD video and configure system settings
- Easy 3-click wizard to setup the system with auto-configuration and auto-discovery of IP cameras, recording and monitoring configuration without any IP video expertise
- Multi-zoom views on HD video (Example: Zoom in on a cash register in one view of the HD camera, while at the same time monitor the cash operator in the zoom out view of the HD camera)
- Ability to investigate events and alarms by simultaneously viewing alarm videos at various stages
- For every alarm, you can view the video captured during pre-alarm, on-alarm, and post-alarm, and also view live video from the camera which triggered the alarm
- Enriched video viewing experience through the intuitive video rendering engine that optimizes CPU utilization by altering the video frame rate
- Honeywell’s video surround feature simplifies the process of tracking subjects through a set of surrounding cameras
- Create, save, and name salvos under My Salvos or Shared Salvos
- IP PTZ control and digital zoom on fixed cameras
- 360° immersive viewing experience providing heightened situational awareness and increased video surveillance coverage
- Fast search by date/time, time line, time jump, bookmarks, calendar, preview, film strip view, and events
- Increase productivity with more efficient search/investigation, get to the relevant video in a few clicks without having to review hours of recordings
- Event history and operator log reporting with export in .pdf, Crystal Reports, Excel, or Word
- Capture and export clips and still images in simple .wmv and .bmp formats
- Clips signed with digital signature for authentication
- Supports multiple client connection to the NVR server
- Separate event video and general recorded video retention times
- Email notification on camera, system, and operator events
- Role-based operator privileges supporting Windows and local users
- Flexible Motion detection (VMD) options with Server (Smart VMD) or camera based motion events support
- Reduced false alarms with object based motion detection analytics with Smart VMD
- Keyboard control with UltraKey Plus and UltraKey Lite over Ethernet
- Local and multi-language support
- Multi-site support with MAXPRO Viewer
- Integration with MAXPRO VMS
- Integration with WIN-PAK and Pro-Watch access control systems
- Hardware
-
- Record and monitor up to 32 channels at 960 fps 4CIF/VGA, 960 fps 720p
- HD, or 640 fps 1080p HD per MAXPRO NVR SE
- Network bandwidth/throughput supported per NVR with incoming 120 Mb/s, outgoing 120 Mb/s, providing a total of 240 Mb/s
- Includes HDMI and DVI-I/VGA ports for dual monitor support
- MAXPRO NVR SE supports displaying 16 cameras at one time, greater numbers of cameras can be displayed by adding additional client workstations
- 6 removable bays with 1 operating system, storage hard drive, and 5 storage only hard drives
- Internal storage capacity from 8TB
- Includes dual 1GB network ports optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
- 2U rack mount form factor with locking front bezel
- Rack rails (sold separately) available for use with 4 post racking systems
UPC: 886618171376 In the Box Honeywell MAXPRO 32-Channel Network Video Recorder (Standard Edition, 8TB) Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell MAXPRO 32-Channel Network Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HNMSE32BP08T Specs | | | Database Server | Microsoft SQL Express 2008 R2 | | Operating System | Windows 7 Embedded 64-bit, SP1 | | Image Compression | MPEG-4, H.264 | | Supported IP Cameras/Encoders | Supports Performance Series IP, EQUIP Series cameras including high definition | | Number of Clients | 18 remote per unit from 9 remote workstations + 2 local on NVR server | | Layouts | Salvo Layouts: Full, 2 x 2, 1 x 5, 3 x 3, 2 x 8, 1 x 12, 4 x 4 | | Picture Control | Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror | | OSD | Concealed text option | | Playback Control | Forward / Revind Play x (1, 2, 4, 8, 16)
Slow Forward / Revind Play x (1/2, 1/4, 1/8) | | Search | Time / date timeline, time jump forward / revind , bookmarks, calendar, preview, film strip, and event search | | Recording Schedule | Constant and event based with H/M/D and holiday and exception days | | Recording Method | Constant, event based and user activated | | Setting | Live Settings: Compression format, resolution, and frame rate
Record Settings: Same as live or reduced frame rate | | Format | WMV with digital certificate for authentication playable with Windows media player | | Authentication | Digital signature, verification tool provided | | Motion Detection | Camera based for supported models or Server based (Smart VMD) for all models(except 360 fisheye /panomorph views) | | Event Recording | Pre and post duration setting | | Reporting | Operator Reporting: Per user, configurator, session, and viewer | | Event | Per camera or recorder events | | Number of Users | 10 | | | | Video Streaming Support | 960 fps at 4CIF / VGA or 960 fps at 720p HD or 640 fps at 1080p HD
Network bandwidth/throughput Incoming: 120 Mb/s
Outgoing: 120 Mb/s,Total: 240 Mb/s
Live: 160 streams
Playback/Video Retrieval Sessions: 32
Sync Playback: 9 streams | | Supported Channels/Tracks | Server Based VMD (Smart VMD) Performance:
Channels at maximum fps: 32-channel at 960 fps 4CIF / VGA or 32-channel at 960 fps 720p or 16-channel 640 fps at 1080p
All Channels at fps: 32-channel at 960 fps at 4CIF / VGA or 960 fps 720p or 320 fps 1080p Local client 2 x 2 view for 1080p and 4 x 4 view for all other lower resolutions. | | | | Processor | Intel Core i7-2600 3.4 GHz | | Memory | 4 GB | | Power Supply | Single 480 W | | Partitioning | 100 GB partition in storage drive 1 | | Storage Capacity | 8 TB | | Hard Drive | 6 bays, 1 operating system & storage drive, 5 field-upgradable, 8 TB SATA hard drive | | Optical | 22 x DVD-RW | | Network | Two 1 GB Ethernet included (10/100/1000 NIC Onboard + 2nd PCIe 10/100/1000 NIC included) | | Chassis | 2U 6 bay with locking bezel | | Slots | Spare HD Slots: 2 | | | | Mouse/Keyboard Port | 2 x USB | | USB | 1 x front, 8 x back | | Network | 2 x RJ45 | | Monitor Output | 1 x DVI-I cw VGA adapter, 1 x HDMI | | | | Input Voltage | 110 to 240 V, 50/60 Hz, 7 A | | Power Consumption | Up to 480 W | | | | Temperature | Operating: 40 to 104°F (5 to 40°C)
Storage: 14 to 150°F (-10 to 65°C) | | Relative Humidity | 0 to 90%, non-condensing | | | | Emission | FCC Part 15, Subpart B, Class B | | Safety | ANSI / UL 60950-1; CAN/CSA C22.2 No 60950-1 | | | | Construction | Housing: Steel chassis
Finish: Black matte paint | | Dimensions (L x W x H) | 27.0 x 19.0 x 3.5" (686.0 x 483.0 x 89.0 mm) | | Weight | 30 to 35 lb (12.7 to 15.9 kg) | | | | Processor | Intel Core 2 Duo Processor E6750 2.66 GHz or Quad Core Intel Xeon E5405 2.0 GHz | | System Memory | Minimum 4 GB or higher | | Partitioning | Minimum 100 GB partition drive or separate hard drive | | Graphics Adapter Compatibility | 512 MB or higher display card for dual monitor - Directx 9 compatible | | Network Interface | Minimum 1 Gigabit network interface card | | Optical Drive | DVD-RW | | Monitor Resolution | Video resolution 1280 x 1024 pixels, 32-bit | | Keyboard/Mouse | 102-key keyboard and mouse | | Operating System Support | Microsoft Windows 7 Professional SP1 (32-bit and 64-bit), Microsoft Windows Server 2008 R2 SP1 The minimum specifications above are recommended for systems with fixed or PTZ cameras only. | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 34.0 x 27.0 x 10.0" |
