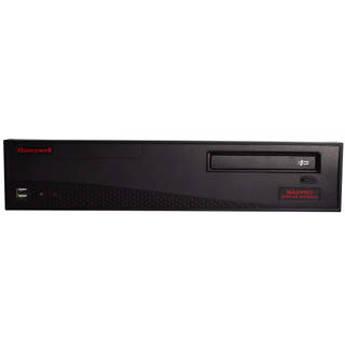

User Manual for Honeywell MAXPRO Hybrid Xpress Edition NVR Click to enlarge the picture
Contents of the user manual for the Honeywell MAXPRO Hybrid Xpress Edition NVR
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell MAXPRO Hybrid Xpress Edition NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 16-channel 2TB MAXPRO Hybrid Xpress Edition NVR from Honeywell utilizes Honeywell's HD cameras to offer high definition IP recording and security monitoring system for small installations. It offers the advantage of HD quality IP video but is as easy as a DVR to setup and operate for a seamless transition from analog to IP. The NVR supports simultaneous recording, live monitoring search and system management for 16 channels, any combination of either IP cameras (including high definition formats) or analog cameras. Multiple NVRs can be deployed for system expansion using a distributed architecture and integrated with the MAXPRO Viewer multisite software or MAXPRO VMS enterprise video management system. MAXPRO NVR Hybrid XE utilizes powerful processor and memory technology supporting multiple simultaneous operations such as video recording and video viewing or alarm monitoring on the unit itself without the need for an additional workstation. It also supports remote monitoring. End users can view live video while simultaneously performing searches. Honeywell's patented Video Surround feature allows for tracking subjects of interest as they move between areas covered by adjacent cameras by simply double-clicking on the panel where the subject is currently visible. Features such as the powerful calendar, preview search options, and film strip view allow for rapidly searching video for scenes of interest and then a quick export method transfers video to an authenticated video clip playable through Windows Media player. MAXPRO NVR Hybrid XE is an open platform and supports broad third party device integrations with support for PSIA and ONVIF (including Profile S devices) standards, real time streaming protocol (RTSP) standard, and native device integrations including 360° camera support. It provides easy to use desktop clients, web client, and mobile apps. The Web Client is supported from any standard Mac or PC browser and requires no additional install. The interface is simple and intuitive with all the functionality and features that users need for daily surveillance operations, such as live view and playback of recorded video. The MAXPRO NVR Hybrid XE user interface is based on Honeywell's flagship MAXPRO VMS user interface which offers a feature-rich user experience and is common across the MAXPRO NVR family. Utilization of this familiar interface ensures familiarity across a broad range of Honeywell products, thereby saving training costs. - Hardware Features
-
- Record and monitor up to 16 cameras with all 16 analog at 480 fps @ CIF NTSC (400 fps PAL) or 120 fps @ 4CIF NTSC (100 fps @ 4CIF PAL)
- Combination of 8 analog with 100 fps @ 4CIF NTSC (80 fps @ 4CIF PAL) and 8 IP with 240 fps @ 720p HD or 200 fps @ 1080p HD
- All 16 IP with 480 fps @ 4CIF/VGA or 480 fps @ 720p HD or 400 fps @ 1080p HD per MAXPRO NVR Hybrid XE. Network bandwidth/throughput supported per NVR with incoming rate of 65 Mbps and outgoing rate of 65 Mbps
- Supports one-way audio (for specific IP cameras) with live and playback on desktop clients for up to 16 IP channels
- Analog cameras support with 16 looping inputs, 16 IOs, and 1 analog PTZ control port on the unit
- Looping outputs support with accessory cables
- Includes HDMI, DVI-I/VGA ports for single monitor support for local client and spot monitor support for analog cameras
- Supports displaying 16 cameras at one time on the NVR Hybrid local monitor
- Internal storage capacity of 2TB
- Includes dual 1GB Network ports (2nd network port through USB NIC adapter) optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
- Small desktop type footprint suitable for small spaces
- 3U rack mount form factor (rack ears included)
- Software Features
-
- MAXPRO NVR Hybrid XE allows local or remote operations including live and recorded video monitoring, configuration and system management in a single desktop client interface
- Support for Web Client on Windows PC (Internet Explorer, Chrome and Firefox browsers) and Mac (Safari browser)
- Supports live, playback/search of recorded video for up to 1080p resolution on all cameras, taking snapshots and viewing presets for PTZ cameras
- Support for mobile monitoring clients on iOS and Android with MAXPRO Mobile apps
- Broad device integrations; Honeywell cameras and encoders, third party devices with support for standards; PSIA and ONVIF (including Profile-S devices), RTSP standard and native device integration including 360° camera support
- Feature-rich, user-friendly Windows based interface to view HD and analog video and configure system settings
- Easy 3-click wizard to set up the system with auto-configuration and auto-discovery of IP cameras, recording, and monitoring configuration, without any IP video expertise
- Multi-zoom views on HD video; for example zoom in on a cash register in one view of the HD camera while at the same time monitoring the cash operator in the zoom out view of the HD camera
- Ability to investigate events and alarms by simultaneously viewing alarm videos at various stages
- For every alarm, users can view the video captured during pre-alarm, on-alarm, and post-alarm, and also view live video from the camera which triggered the alarm
- Enriched video viewing experience through the intuitive video rendering engine that optimizes CPU utilization by altering the video frame rate
- Create, save and name salvos under My Salvos or Shared Salvos
- IP and analog PTZ control and digital zoom on fixed cameras
- 360° immersive viewing experience providing heightened situational awareness and increased video surveillance coverage
- Fast search by date/time, time line, time jump, bookmarks, calendar, preview, film strip view and events
- Event history and operator log reporting with export in .pdf, Crystal Reports, Excel or Word
- Capture and export clips and still images in simple .wmv and .bmp formats
- Clips signed with digital signature for authentication
- Supports multiple client connection to NVR Hybrid Server
- Separate event video and general recorded video retention times
- Email notification on camera, system and operator events
- Role-based operator privileges supporting Windows and local users
- Flexible motion detection (VMD) options with server (Smart VMD) or camera-based motion events support
- Reduced false alarms with object based motion detection analytics with Smart VMD
- Advanced security features with encryption support for communication between desktop client to NVR and secure https login for Web Client
- Keyboard control with UltraKey Plus and UltraKey Lite over Ethernet
- Local and multi-language support
- Multi-site support with MAXPRO Viewer
- Integration with MAXPRO VMS
- Integration with WIN-PAK and Pro-Watch access control systems
UPC: 886618185038 In the Box Honeywell MAXPRO Hybrid Xpress Edition NVR (2TB, 16-Channel) Rack Ears USB NIC Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell MAXPRO Hybrid Xpress Edition NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HHXE16C1602T Specs | | | Channels | 16 | | Storage | 2 TB | | Recording | All 16 analog at 480 fps @ CIF NTSC (400 fps PAL) or 120 fps @ 4CIF NTSC (100 fps @ 4CIF PAL)
Combination of 8 analog with 100 fps @ 4CIF NTSC (80 fps @ 4CIF PAL) and 8 IP with 240 fps @ 720p HD or 200 fps @ 1080p HD
All 16 IP with 480 fps @ 4CIF/VGA or 480 fps @ 720p HD or 400 fps @ 1080p HD | | Network Bandwidth | Incoming: 65 Mbps
Outgoing: 65 Mbps
Total: 130 Mbps | | Database | Microsoft SQL Express 2008 R2 | | Operating system | Windows Embedded Standard 7 SP1, 64-bit | | Supported IP Cameras/Encoders | Supports Honeywell's Performance series IP, equIP series, IP PTZ cameras including high definition | | Supported Protocols | Analog PTZ Protocols: MAXPRO, VCL, Pelco P, Pelco D, GE/Kalatel | | Audio Support | 1-way audio for specific IP camera models | | Number of Clients | 8 remote per unit from 4 remote workstations + 1 local on NVR Hybrid server | | Layouts | Salvo:
Desktop Client: Full, 2x2, 1x5, 3x3, 2x8, 1x12, 4x4
Web Client: 2x2, 1x1, 1x2, 1x3 | | Picture Controls | Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size, and picture mirror | | OSD | Concealed text option | | Playback Control | FWD/REV Play x (1, 2, 4, 8, 16)
Slow FWD/REV Play x (1/2, 1/4, 1/8) | | Search | Time/date timeline, time jump FWD/REV, bookmarks, calendar preview, film strip and event search | | Recording Schedule | Constant and event based with H/M/D and holiday and exception days | | Recording Method | Constant, event-based, and user activated | | Settings | Live Settings: Compression format, resolution, and frame rate
Recording Settings: Same as live or reduced frame rate | | Recording Format | WMV with digital certificate for authentication playable with Windows media player | | Authentication | Digital signature, verification tool provided | | Motion Detection | Camera-based for supported models or server based (Smart VMD) for all analog and IP models (except 360 fisheye/panomorph views) | | Event Recording | Pre- and post-duration setting | | Reporting | Per user, configurator, session, and viewer | | Event | Report per camera or recorder events | | Camera Operator | 1024 | | Video Streams | Web Client:
Total streams limit of 32 (live + playback)
Desktop Client:
Live: 160 streams
Playback/Video Retrieval Sessions: 32
Sync Playback: 9 streams | | | | Processor | Intel Core i5-3470 3.2 GHz | | Memory | 8 GB | | Power Supply | Single 250 W | | Optical | 22x DVD-RW | | Network | 2 x 1 GB Ethernet included (10/100/1000 NIC Onboard + 2nd via USB NIC adapter included) | | Mouse/Keyboard Port | USB | | | | Processor | Intel Core 2 Duo processor E6750 2.66 GHz or quad core Intel Xeon E5405 2.0 GHz | | System Memory | 4 GB or higher | | Hard Disk Drive | Minimum 100 GB Partition drive or separate hard drive | | Network Interface | Minimum: 1 x Gigabit network interface card | | Optical Drive | DVD-RW | | Monitor Resolution | Video resolution 1280 x 1024 pixels, 32 bit | | Keyboard | 102-key keyboard | | Operating System | Microsoft Windows 7 Professional SP1 (32-bit and 64-bit), Microsoft Windows Server 2008 R2 SP1 | | | | Video Input | 16 looping, BNC 1 Vp-p @ 75 ohms (looping outputs with accessory cables) | | Video Output | MAIN-OUT (DVI-I cw VGA adapter and HDMI and SPOT-OUT (RCA) | | Sensors | 16, NO/NC selectable | | Control | 16, Relay Output | | Serial Ports | 2 x USB Front, 4 x USB Rear, 1 x RS485 | | Network | 1 x RJ45 + 1 x RJ45 through USB NIC adapter | | | | Emissions | FCC Part 15, Subpart B; EN55022:2010 | | Immunity | EN50130-4:2011 | | Safety | ANSI/UL 60950-1; CAN/CSA C22.2 60950-1; EN60950-1:2006+A11:2009+A12:2011 +A1:2010 | | | | Input Voltage | 115 to 230 VAC, 50/60 Hz, 10/7 A | | Power Consumption | 250 W | | | | Temperature | Operating: 40 to 104°F (5 to 40°C)
Storage: 14 to 150°F (-10 to 65°C) | | Relative Humidity | 0 to 90%, non-condensing | | | | Construction | Housing: Steel chassis
Finish: Black matte paint | | Dimensions | 17.8 x 3.5 x 16.3" (45.3 x 9.0 x 41.6 cm) | | Weight | 29.5 lb (13.4 kg) |
