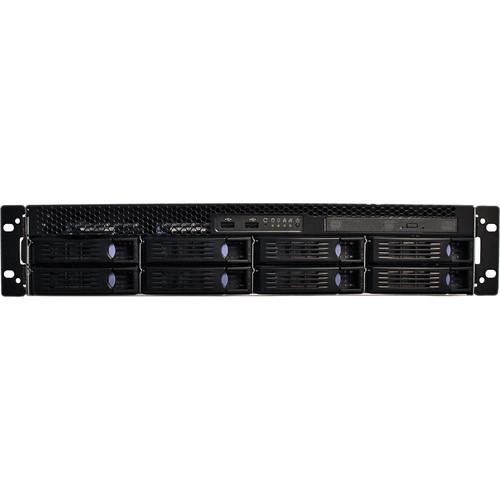

User Manual for Honeywell MAXPRO Professional Edition 48-Channel NVR with 12TB Storage Click to enlarge the picture
Contents of the user manual for the Honeywell MAXPRO Professional Edition 48-Channel NVR
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell MAXPRO Professional Edition 48-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The Honeywell's MAXPRO Professional Edition 48-Channel NVR is an open, flexible, and scalable IP video surveillance system. This NVR, when used in combination with separately available high definition cameras, serves as a high definition IP recording system with support for multiple standards and remote viewing clients for enterprise installations. The MAXPRO NVR is an open platform and supports broad third-party device integrations, with support for PSIA and ONVIF (including Profile S devices) standards, RTSP (real-time streaming protocol) standard, and native device integrations including 360° camera support. It also provides desktop clients, a web client, and mobile apps (MAXPRO Mobile applications). The web client is supported from any standard Mac or Windows browser and requires no additional installation. The interface is designed to be simple and intuitive with all the functionality and features that users need for daily surveillance operations, such as live view and playback of recorded video. This unit's small form factor (2U rack mount), high performance, and reliability make it suitable for installations where digital video is mission critical. Open Platform – Broad Device Integrations -
- Integrates to full line of Honeywell IP cameras and HVE encoders
- Support for ONVIF Profile S, PSIA, real-time streaming protocol (RTSP) standards
- Native device integrations including 360° camera support
Easy to Install and Use -
- Pre-installed with all required software and pre-licensed for 48 channels
- Easy 3-click wizard to live video for auto configuration
- Simple and logical configuration pages for easy setup
- Supports simultaneous recording, live monitoring, search and system management for up to 48 IP cameras including high definition formats with easy to use clients (desktop clients, web client and mobile apps)
Scalable Integrated Security Solution -
- Multiple MAXPRO NVRs can be deployed for system expansion using a distributed architecture and integrated with the MAXPRO Viewer multisite software or MAXPRO VMS enterprise video management system
- Integration with Honeywell WIN-PAK and Pro-Watch Access Control Systems providing an integrated Access Control, Intrusion and Video solution
Software - Multi-Platform Support
-
- Allows local or remote operations including live and recorded video monitoring, configuration, and system management in a single desktop client interface
- Support for web client on Windows PC (Internet Explorer, Chrome and Firefox browsers) and Mac (Safari browser)
- Supports live, playback/search of recorded video for up to 1080p resolution on all cameras, taking snapshots and viewing presets for PTZ cameras
- Support for mobile monitoring clients on iOS and Android Phones and Tablets with MAXPRO NVR Apps—Log in securely with https communication, create favorite salvos (cameras up to 3x3 on tablets and 2x4 on phones per salvo), view live and recorded video, perform PTZ control through presets and monitor and manage alarms
- Enhanced Monitoring with Desktop clients
-
- Multi-zoom views on HD video and support for Profile cameras to create virtual cameras by digitally zooming into the field of view
- Ability to investigate events and alarms by simultaneously viewing alarm videos at various stages for every alarm. Users can view the video captured during pre-alarm, on-alarm, and post-alarm, and also view live video from the camera which triggered the alarm
- Intuitive video rendering engine that optimizes CPU utilization by altering the video frame rate
- Enhanced HD video rendering on remote desktop clients with support for monitoring of up to 18 Full HD cameras in real-time (30 fps) / 540 fps Full HD with no-time lapse using the GPU capabilities of built-in processor graphics with fourth generation Intel Core Processors for client systems
- Up to four 1080p HD at 30 / 120 fps on local client
- Video Surround feature simplifies the process of tracking subjects through a set of surrounding cameras
- Create, save and name salvos under My Salvos or Shared Salvos
- Supports 16:9, 4:3 and Stretched aspect ratios for video salvos
- Supports IP PTZ control and digital zoom on fixed cameras—360° immersive viewing experience providing heightened situational awareness and increased video surveillance coverage
- Supports auto switching of streams by the client and offers flexibility to manually override the stream required with multi-stream cameras
- React Fast and Protect your Assets
-
- Fast search by date/time, enhanced time line, time jump, bookmarks, SMART Motion search, calendar, preview, film strip view and events
- Search for objects/motion on recorded video using Honeywell SMART Motion Detection Analytics algorithms on the Client PC without impacting the NVR Server load
- Capture and export clips and still images in simple WMV (signed with digital signature for authentication), ASF, MPVC, and BMP formats
- MAXPRO Video Container (MPVC) format is only playable in MAXPRO desktop clients and standalone Clip Player (available separately), quicker exports of raw video and support for estimating clip size and split to multiple clips to ensure clip storage media matches, include clip player with exported clip for easier review of video evidence and efficient investigation
- Email notification on camera, system, and operator events
- Enhanced Recording Engine
-
- Separate event video, continuous recording, and archived video retention times
- Flexible Motion detection (VMD) options with Server (SMART VMD) or camera-based motion events support
- Reduced false alarms with object based motion detection analytics with SMART VMD
- Archive large amounts of recorded Video data for long term storage either scheduled or manually, review through NVR desktop client or standalone Clip Player
- Multi-stream support - Support multiple streams from camera for varying resolutions and frame rates for live, recording, low bandwidth desktop clients, web clients and mobile apps
- Single-channel license included (supports up to 64 channels) for encoders and multi-imager 360° cameras
- Additional Features
-
- Reduce over configuration using NVR System Load and Storage Calculator and ensure the system is configured to meet requirements for retention and reliability
- Integrated dashboard to monitor the health and recording status of the NVR from any workstation or PC in the network
- Role-based operator privileges supporting Windows and local users
- Advanced security features with encryption support for communication between desktop client to NVR and secure https login for web client and Mobile apps
- Keyboard control with UltraKey Plus and UltraKey Lite over Ethernet
- Event history and operator log reporting with export in PDF, Crystal Reports, Excel, or Word
- Local and multi-language support
In the Box Honeywell MAXPRO Professional Edition 48-Channel NVR with 12TB Storage (4 x 3TB HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell MAXPRO Professional Edition 48-Channel NVR with 12TB Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HNMPE48B123S Specs | | | Database Server | Microsoft SQL Server 2012 Express | | Operating System | Windows 7 Embedded 64-bit, SP1 | | Image Compression | MJPEG, MPEG-4, H.264 | | Supported IP Cameras/Encoders | Supports Performance Series IP, equIP Series cameras including high definition | | Audio Support | 1-way audio for compatible IP camera models | | Number of Clients | Desktop Client: 38 per unit from 19 remote workstations + 1 local on NVR server | | Layouts | Desktop Client: Full, 2 x 2, 1 x 5, 3 x 3, 2 x 8, 1 x 12, 4 x 4
Web Client: 2 x 2, 1 x 1, 1 x 2, 1 x 3
Mobile app (Phone): 2 x 2, 2 x 4, 1 x 2, 1 x 1
Mobile App (Tablet): 3 x 3, 2 x 2, 1 x 1 | | Picture Control | Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror | | OSD | Concealed text option | | Playback Control | Forward / Rewind Play x (1, 2, 4, 8, 16)
Slow Forward / Rewind Play x (1/2, 1/4, 1/8) | | Search | Time / date timeline, time jump forward / rewind, bookmarks, calendar, preview, film strip, event search, and SMART Motion Search | | Recording Schedule | Constant and event-based with H/M/D and holiday and exception days | | Recording Method | Constant, event-based, and user activated | | Setting | Live Settings: Compression format, resolution, and frame rate
Record Settings: Same as live or reduced frame rate | | Format | Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports
WMV with digital certificate for authentication playable with Windows media player
ASF for faster exporting of longer than an hour backup clips in native compression format | | Authentication | Digital signature, verification tool provided | | Motion Detection | Camera-based for supported models or server-based (Smart VMD) for all models (except 360 fisheye /panomorph views) | | Event Recording | Pre- and post-duration setting | | Reporting | Operator Reporting: Per user, configurator, session, and viewer | | Event | Per camera or recorder events | | Number of Users | 1024 | | | | Performance | 1920 fps at 4CIF/VGA or 1920 fps at 720p HD or 1920 fps at 1080p HD (4 Mb/s bit rate)
1-way audio for up to 48 IP channels (only cameras that support audio)
Network Bandwidth/Throughput:
Incoming: 256 Mb/s
Outgoing: 425 Mb/s
Total: 681 Mb/s
Rendering performance using GPU of up to 4 1080p HD at 30 fps/120 fps on local client
Note: Oncam Grandeye 360 Cameras are not supported with GPU rendering and use CPU rendering by default.
Archival Performance:
25 channels at 4 Mb/s bit rate each
Total Archival Throughput Capacity: 100 Mb/s
Outgoing Archival Storage Throughput: 275 Mb/s | | Video Streaming Support | Web Client: 64 live streams, 32 playback streams
Desktop Client: Live: 256 streams
Playback/Video Retrieval Sessions: 32
Sync Playback: 9 streams
256 live streams limit excludes 1 stream used per camera if SMART VMD is enabled
Maximum live streams per camera is 15 with SMART VMD enabled
Mobile App: 16 streams of 1080p HD at 5 fps each
Note: During archival operations, maximum no of playback streams recommended from Desktop Client and Web Client is 16. | | Multi-stream | Maximum 128 streams supported
Support for configuring 1 preferred stream for continuous recording and 1 preferred stream for live video / motion based recording per camera | | | | Processor | Intel Core i7-4790, 3.6 GHz, Intel HD Graphics 4600 | | Memory | 8 GB | | Power Supply | Dual Redundant 820 W | | Hard Drive | OS Hard Drive: 2 x 2.5" 128 GB SSD, RAID1
Storage Hard Drive: 8 field upgradable bays (each accepts up to 6 TB SAS hard drive) | | Storage Capacity | Up to 48 TB raw storage (4 x 3 TB HDD included providing 12TB storage) | | Optical | 22 x DVD-RW | | Network | Dual 1 Gigabit Ethernet | | Chassis | Chassis with Locking Bezel: 2U 8-bay including rack mount kit | | RAID Card | 6 GB/s SAS/SATA RAID card, PCI Express x8, supports RAID levels up to 6+0 | | | | Mouse/Keyboard Port | 2 x USB | | USB | 2 x front, 4 x back | | Network | 2 x RJ45 | | Monitor Output | HDMI cw DVI-D to HDMI adapter or VGA or DVI-D or DisplayPort | | | | Input Voltage | 110 to 240 VAC, 50/60 Hz, auto sensing | | Power Dissipation | Average BTU Rating = 880 BTU/hr
Peak BTU Rating = 2800 BTU/hr | | | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Relative Humidity | 5 to 95% non-condensing | | | | Emission | FCC part 15B Class A; EN 55022 class A | | Immunity | EN 50130-4 | | Safety | ANSI / UL 60950-1; CAN/CSA C22.2 No 60950-1; IEC 60950-1 | | RoHS Compliance Version | EN 50581 | | | | Dimensions (W x H x D) | 16.9 x 3.5 x 26" (430 x 88.8 x 660 mm) | | Weight | Not Specified by the Manufacturer | | | | Configuration | With GPU Rendering Capability:
Minimum: Up to 13 1080p HD Cameras, 1 Monitor (390 fps at 1080p HD)
Recommended: Up to 18 1080p HD cameras, 2 Monitors (540 fps at 1080p HD)
Without GPU Rendering Capability:
Up to 9 HD Cameras (1 selected panel only, Throttle Frame Rate setting enabled) | | Processor | With GPU Rendering Capability:
Minimum: Intel Core i5-4460 or equivalent 4th generation, Intel Core Processors for client systems
Recommended: Intel Core i7-4790 or equivalent 4th generation, Intel Core Processors for client systems
Without GPU Rendering Capability:
Intel Core 2 Duo Processor E6750 2.66 GHz or Quad Core Intel Xeon E5405 2.0 GHz | | Graphics Adapter Compatibility | With GPU Rendering Capability:
In-built Processor Graphics (GPU): Intel HD Graphics 4600 or equivalent
Without GPU Rendering Capability:
512 MB or higher Display Card (optional) | | System Memory | With GPU Rendering Capability: 8 GB
Without GPU Rendering Capability: 4 GB | | Partitioning | Minimum 100 GB partition drive or separate hard drive | | Network Interface | Minimum 1 Gigabit network interface card | | Operating System | Microsoft Windows 7 Professional SP1, Windows 8.1, Windows 10 (64-bit/32-bit) | | Optical Drive | DVD-RW | | Monitor Resolution | Video resolution 1280 x 1024 pixels, 32-bit | | Keyboard/Mouse | 102-key keyboard and mouse | | Operating System Support | With GPS Rendering Capability: Microsoft Windows 7 Professional SP1, Windows 8.1, Windows 10 (64-bit)
Without GPU Rendering Capability: Microsoft Windows 7 Professional SP1, Windows 8.1, Windows 10 (32-bit and 64-bit)
Note: Oncam Grandeye 360 cameras are not supported with GPU rendering and use CPU rendering by default. On Windows 7 workstations, GPU rendering is only supported through the motherboard monitor outputs and any additional graphics cards should be disabled in BIOS. On Windows 8.1, Windows 10 workstations with Intel GPU and any additional graphics cards, at least one monitor should be connected to the motherboard monitor output. |
