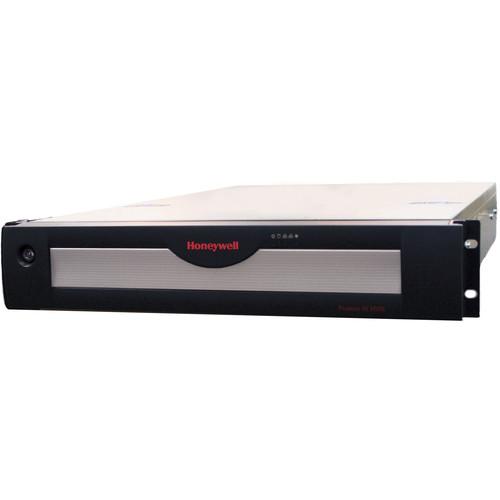

User Manual for Honeywell MAXPRO Standard Edition 32-Channel NVR with 16TB Click to enlarge the picture
Contents of the user manual for the Honeywell MAXPRO Standard Edition 32-Channel NVR
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell MAXPRO Standard Edition 32-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The MAXPRO Standard Edition 32-Channel NVR from Honeywell is an open, flexible, and scalable IP video surveillance system. It integrates with the full line of Honeywell IP cameras and HVE encoders and is pre-installed with all required software and pre-licensed for 32 channels with no extra channel license costs. It supports simultaneous recording, live monitoring, search, and system management for up to 64 IP cameras including high definition formats.
The NVR has an internal storage capacity of 16TB (4 x 4TB) with 2x spare HD slots. The NVR is rack mountable with 6 removable drives. Rack rails are included for use with four-post racking systems. - Broad Device Integrations
-
- Integrates with full line of Honeywell IP cameras and HVE encoders
- Support for ONVIF Profile S, PSIA, RTSP (Real Time Streaming Protocol) standards
- Native device integrations including 360° camera support
- Turnkey Solution
-
- Pre-installed with all required software and pre-licensed for 32 channels with no extra channel license cost
- 3-click wizard to live video for auto configuration
- Supports simultaneous recording, live monitoring, search, and system management for up to 64 IP cameras including high definition formats with clients
- Desktop clients, web client, and mobile apps
- Scalable Integrated Security Solution
-
- Integrated with the MAXPRO Viewer multi-site software or MAXPRO VMS enterprise video management system
- Integration with Honeywell WIN-PAK and Pro-Watch Access Control Systems providing an integrated access control, intrusion, and video solution
- Flexible Hardware
-
- Provides the processor and storage enclosure in one chassis, resulting in both space and cost savings
- Rack mountable with 6 removable drives, SATA hard drives used for operating system partition and video storage
- Dual 1GB NICs are optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
- Multi-Platform Support
-
- Allows local or remote operations including live and recorded video monitoring, configuration, and system management in a single desktop client interface.
- Support for web client on Windows PC (Internet Explorer, Chrome, and Firefox browsers) and Mac (Safari browser)
- Supports live, playback/search of recorded video for up to 1080p resolution on all cameras, taking snapshots and viewing presets for PTZ cameras
- Support for mobile monitoring clients on iOS and Android Phones and Tablets with MAXPRO NVR apps allows users to log in securely with https communication, create favorite salvos (cameras up to 3x3 on tablets and 2x4 on phones per salvo), view live and recorded video, perform PTZ control through presets, and monitor & manage alarms
- Enhanced Monitoring with Desktop Clients
-
- Multi-zoom views on HD video and support for profile cameras to create virtual cameras by digitally zooming into the field of view.
- Ability to investigate events and alarms by simultaneously viewing alarm videos at various stages. For every alarm, you can view the video captured during pre-alarm, on alarm, and post-alarm, and also view live video from the camera which triggered the alarm
- Enriched video viewing experience through the intuitive video rendering engine that optimizes CPU utilization by altering the video frame rate
- Enhanced HD video rendering on remote desktop clients with support for monitoring of up to 18 1080p HD cameras in real time (30 fps)/540 fps 1080p HD with no-time lapse using the GPU capabilities of built-in processor graphics with 4th generation Intel Core Processors for client systems. Up to four 1080p HD at 20 fps/80 fps on local client
- Video Surround feature simplifies the process of tracking subjects through a set of surrounding cameras
- Create, save, and name salvos under My Salvos or Shared Salvos
- Support for multiple aspect ratios - 16:9, 4:3, and Stretched for video salvos
- IP PTZ control and digital zoom on fixed cameras. 360° immersive viewing experience providing heightened situational awareness and increased video surveillance coverage
- Support for auto switching of streams utilized by the client and flexibility to manually override the stream required with multi-stream cameras
- React Fast and Protect your Assets
-
- Fast search by date/time, enhanced time line, time jump, bookmarks, SMART Motion search, calendar, preview, filmstrip view and events
- SMART Motion search – Fast and efficient forensic search and investigation for objects/motion on recorded video using Honeywell SMART motion detection analytics algorithms on the Client PC without impacting the NVR Server load
- Capture and export clips and still images in simple WMV, ASF, MPVC, and BMP
- MAXPRO Video Container (MPVC) format support - only playable in MAXPRO desktop clients and standalone Clip Player, quicker exports of raw video, and support for estimating clip size and split to multiple clips to ensure clip storage media matches, include clip player with exported clip for easier review of video evidence and efficient investigation
- Clip Player - Portable standard secure player for archived and exported clips (MPVC), 360 camera de-warping and 2x2 salvo support, smooth playback support with up to 256x review speed, no software installation required to run on a Windows PC, option to include with clip export
- Email notification on camera, system, and operator events
- Enhanced Recording Engine
-
- Separate event video, continuous recording, and archived video retention times
- Flexible Motion detection (VMD) options with Server (SMART VMD) or Camera based motion events support. Reduced false alarms with object based motion detection analytics with SMART VMD
- Archive large amounts of recorded video data for long term storage either scheduled or manually, review through NVR desktop client or standalone clip player
- Multi-stream support - Support multiple streams from camera for varying resolutions and frame rates for live, recording, low bandwidth desktop clients, web clients, and mobile apps
- Single channel license for encoders and multi-imager 360 cameras
- Additional Software Features
-
- Easy to use and enhanced camera configuration & discovery workflow - Reduce over configuration using NVR System
- Load and storage calculator ensures the system is configured to meet requirements for retention and reliability
- Status Monitor - Save operational costs with an integrated dashboard to easily monitor the health and recording status of all the MAXPRO NVRs from any workstation or PC in the network
- Role-based operator privileges supporting Windows and local users
- Advanced security features with encryption support for communication between desktop client to NVR and secure https login for web client and mobile apps
- Keyboard control with UltraKey Plus and UltraKey Lite over Ethernet
- Event history and operator log reporting with export in PDF, Crystal Reports, Excel, or Word
- Local and multi-language support
In the Box Honeywell MAXPRO Standard Edition 32-Channel NVR with 16TB (4 x 4TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell MAXPRO Standard Edition 32-Channel NVR with 16TB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HNMSE32BP16T Specs | | | Processor | Intel Core i7-4790, 3.6 GHz, Intel HD Graphics 4600 | | Power Supply | Single 400 W | | OS | 100 GB partition in storage drive 1 | | Storage Capacity | 16 TB (4 x 4 TB) | | Optical | 22x DVD-RW | | Network | 2 x 1 GB Ethernet included | | Chassis | With Locking Bezel: 2U 6 bay including rackmount kit | | Rear Panel Connectors | Mouse & Keyboard: 2 x USB
USB: 1 x front, 6 x back
Network: 2 x RJ45
Monitor Output: Dual monitor support via 1 x HDMI, 1 x VGA, 1 x DVI-D, 1 x Display port | | Input Voltage | 110 to 240 V, 50/60 Hz, 7 A | | Power Dissipation | Average BTU rating = 570 BTU/HR
Peak BTU rating = 1370 BTU/HR | | Operating Temperature | 40 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 150°F (-10 to 65°C) | | Relative Humidity | 0% to 90%, non-condensing | | Emissions | FCC Part 15, Subpart B, Class B | | Safety | ANSI / UL 60950-1; CAN/CSA C22.2 No 60950-1 | | Construction | Housing: Steel chassis
Finish: Black matte paint | | Dimensions | 27 x 19 x 3.5" (686 x 483 x 89 mm) | | Weight | 30 lb (12.7 kg) to 35 lb (15.9 kg) | | | | Database | Microsoft SQL Server 2012 Express | | Operating System | Windows Embedded Standard 7 SP1, 64-bit | | Image Compression | Supported MJPEG, MPEG-4, H.264 | | Supported IP Cameras/Encoders | Supports Performance Series IP, equIP Series cameras
Third-Party Cameras/Encoders | | Audio Support | 1-way audio for specific IP camera models | | Maximum Number of Clients | Desktop Client: 38 per unit from 19 remote workstations + 2 local on NVR | | Layouts | Salvo:
Desktop Client: Full, 2 x 2, 1 x 5, 3 x 3, 2 x 8, 1 x 12, 4 x 4
Web Client: 2 x 2.1 x 1,1 x 2,1 x 3
Mobile App (Phone): 2 x 2,2 x 4,1 x 2, 1 x 1
Mobile App (Tablet): 3 x 3, 2 x 2, 1 x 1 | | Picture Controls | Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size, and picture mirror | | OSD | Concealed text option | | Playback Control | FWD/REV Play x (1, 2, 4, 8, 16)
Slow FWD/REV Play x (1/2, 1/4, 1/8) | | Search | Type: Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search | | Recording Schedule | Constant and event-based with H/M/D and holiday and exception days | | Recording Method | Constant, event-based, and user activated | | Live | Setting Per Camera: Compression format, resolution, and frame rate | | Recording System | Same as live or reduced frame rate | | Clip | Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports. WMV with digital certificate for authentication playable with Windows media player. ASF for faster exporting of longer than an hour backup clips in native compression format. | | Video Clip | Digital signature, verification tool provided | | Motion Detection | Camera based for supported models or Server based (SMART VMD) for all models (except 360 fisheye /panomorph views) | | Event Recording | Pre- and post duration setting | | Reporting | Per user, configurator, session and viewer | | Event | Report: Per camera or recorder events | | Operators | 1024 |
