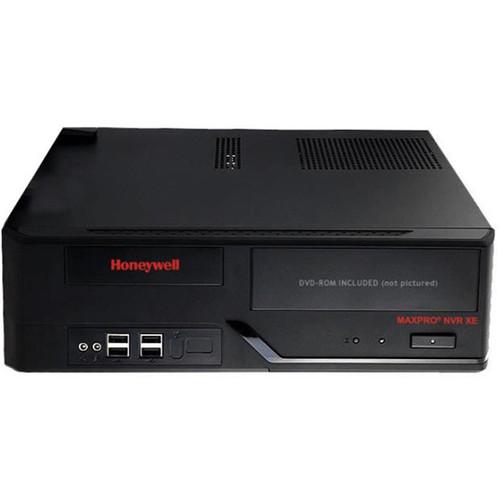

User Manual for Honeywell MAXPRO Xpress Edition 16-Channel NVR Click to enlarge the picture
Contents of the user manual for the Honeywell MAXPRO Xpress Edition 16-Channel NVR
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell MAXPRO Xpress Edition 16-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 2TB MAXPRO Xpress Edition 16-Channel NVR from Honeywell is a suitable solution for entry into IP video surveillance systems. It utilizes HD cameras to offer an HD IP recording and security monitoring system for small installations. It offers the advantage of HD quality IP video and operates for a seamless transition from analog to IP. It is an open platform and supports third-party device integrations with support for PSIA and ONVIF (including Profile S devices) standards, real time streaming protocol (RTSP) standard, and native device integrations, including 360° camera support.
The NVR provides desktop clients, a web client, and mobile apps. The web client is supported from any standard Mac or PC browser and requires no additional installation and provides the value of reduced setup for maintenance and improved compatibility. The interface allows live view and playback of recorded video. The NVR comes pre-installed with all required software and is also pre-licensed for 16 channels, allowing up to 16 cameras to be added anytime later as your system grows. A 3-Click wizard is included to make installing an IP system quick and efficient without requiring any IT expertise.
The MAXPRO NVR XE user interface is based on Honeywell's flagship MAXPRO VMS user interface, which is common across the MAXPRO NVR Family. It supports simultaneous recording, live monitoring search, and system management for up to 16 IP cameras, including high definition formats. It utilizes processor and memory technology supporting multiple simultaneous operations, such as video recording and video viewing, or alarm monitoring on the unit itself without the need for an additional workstation. It also supports remote monitoring. End users can view live video while simultaneously performing searches.
The video surround feature allows for tracking subjects of interest as they move between areas covered by adjacent cameras by simply double-clicking on the panel where the subject is currently visible. Features such as the calendar, preview search options, and film strip view allow for rapidly searching video for scenes of interest and then quick export method transfers video to an authenticated video clip playable through Windows Media player. UPC: 886618191855 In the Box Honeywell MAXPRO Xpress Edition 16-Channel NVR (2TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell MAXPRO Xpress Edition 16-Channel NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HNMXE16B02T Specs | | | Processor | Intel Core i5-4460 3.2 GHz, Intel HD Graphics 4600 | | Memory | 8 GB | | Storage | 2 TB | | Optical | 22X DVD-RW | | OS | Minimum 100 GB Partition drive or separate hard drive | | Network Interface | Minimum 1 Gigabit network interface card | | Monitor Resolution | Video resolution 1280 x 1024p, 32-bit | | Recording | 480 fps at 4CIF/VGA or 480 fps at 720p HD or 400 fps at 1080p HD
One-way audio for up to 16 IP channels | | Monitoring | Network bandwidth/throughput supported per NVR with 65 Mb/s incoming and 65 Mb/s outgoing for a total of 130 Mb/s | | Video Streams | Support Web Client: Total Streams Limit - 64 (live + playback)
Support Desktop Client: Live - 160 streams, Playback/Video retrieval sessions - 32, Sync playback - 9 streams | | Server | 16 channels supported at 480 fps at 4CIF/VGA or 480 fps at 720p HD or 400 fps at 1080p HD Local client - 4x4 view for 1080p or lower resolutions | | Network | 2 x Gigabit Ethernet included
2 x RJ45 | | USB | 4 front, 4 rear | | Monitor Output | Single monitor support-1 HDMI, 1 x VGA, 1 x DVI-D, 1 x Display port | | Input Voltage | 115 to 230 VAC, 50/60 Hz | | Power Consumption | 300 W | | Operating Temperature | 40 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 150°F (-10 to 65°C) | | Emissions | FCC Part 15, Subpart B; EN55022:2010 | | Immunity | EN50130-4:2011 | | Safety | ANSI/UL 60950-1; CAN/CSA C22.2 60950-1; EN60950-1:2006+A11:2009+A12:2011 +A1:2010 | | Dimensions (W x H x D) | 13 x 3.8 x 15.7" (33 x 10 x 40 cm) | | Weight | 23 lb (10 kg) | | | | Database | Microsoft SQL 2012 Express | | Operating System | Windows Embedded Standard 7 SP1, 64-bit | | Image Compression | MJPEG, MPEG-4, H.264 | | Supported IP Cameras/Encoders | Supports Performance Series IP, equIP Series cameras | | Audio Support | 1-way audio for specific IP camera models | | Client | 18 remote per unit from 9 remote workstations +1 local on NVR server | | Layouts | Salvo
Desktop Client: Full, 2 x 2, 1 x 5, 3 x 3, 2 x 8, 1 x 12, 4 x 4
Web Client: 2 x 2, 1 x 1, 1 x 2, 1 x 3
Mobile App (Phone): 2 x 2, 2 x 4, 1 x 2, 1 x 1
Mobile App (Tablet): 3 x 3, 2 x 2, 1 x 1 | | Picture Controls | Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size, and picture mirror | | OSD | Concealed text option | | Playback | Controls per Camera: FWD/REV Play x (1, 2, 4, 8, 16)
Slow FWD/REV Play x (1/2, 1/4, 1/8) | | Search | Time/date timeline, time jump, FWD/REV, bookmarks, calendar preview, film strip, event search, and SMART Motion Search | | Recording Schedule | Constant and event based with H/M/D, and holiday and exception days | | Recording Method | Per Camera: Constant, event-based, and user activated | | Live | Settings per Camera: Compression format, resolution, and frame rate | | Recording | Settings per Camera: Same as live or reduced frame rate | | Clip | WMV with digital certificate for authentication playable with Windows media player | | Video Clip | Digital signature, verification tool provided | | Motion Detection | Camera based for supported models or Server based (Smart VMD) for all models (except 360 fisheye/panomorph views) | | Event Recording | Pre- and post-duration setting | | Reporting | Per user, configurator, session, and viewer | | Event | Report: Per camera or recorder events
Operators: 1024 |
