User Manual for Honeywell Orbit 7120 Omnidirectional Laser Scanner Kit Click to enlarge the picture
Contents of the user manual for the Honeywell Orbit 7120 Omnidirectional Laser Scanner
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Orbit 7120 Omnidirectional Laser Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|

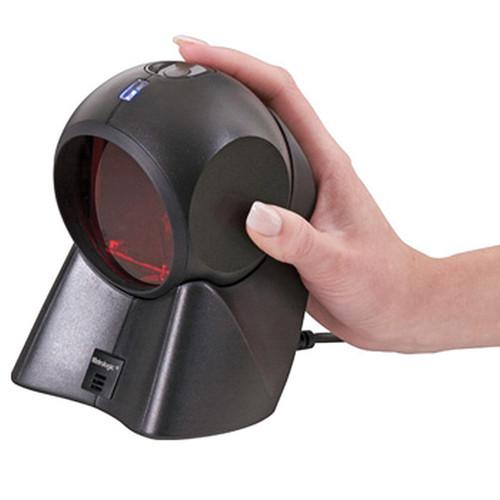

Product description The Orbit 7120 Omnidirectional Laser Scanner Kit from Honeywell includes a mounting plate and a 9.2' USB cable. The Orbit is a hands-free omnidirecntional scanner with a patented 20-line scan pattern, an easy-to-find sweet spot, and a scan speed of 1,067 scans per second. - An engineered sweet spot optimizes scan performance and first-pass read rate.
- The head of the scanner is adjustable and has a 30° tilt range for targeted scanning or scanning large products.
- Flash ROM protects your POS system with free firmware updates via MetroSet2 software and standard PC.
- An automatic scanning operation ensures that the unit scans a bar code in a single pass.
In the Box Honeywell Orbit 7120 Omnidirectional Laser Scanner Kit (Black) Mounting Plate 9.2' USB Type A Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Orbit 7120 Omnidirectional Laser Scanner Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell MS7120 Specs | | | Input Voltage | 5 VDC ± 0.25 V | | Operating Power | 900 mW (180 mA @ 5 V) | | Standby Power | 850 mW (170 mA @ 5 V) | | System Interface | USB, RS232, Keyboard wedge, IBM 468xx (RS485), light pen wand emulation | | | | Scan Pattern | 5 fields of 4 parallel lines (omnidirectional) | | Scan Speed | 1,067 scans per second | | Print Contrast | 35% minimum reflectance difference | | Pitch | 60° | | Skew | 60° | | Decoding Formats | Reads standard 1D and GS1 DataBar symbologies | | System Requirements | Works on all Mac and PC operating systems | | Depth of Field | Narrow Width / Depth of Field
5.2 mil / 0.0 - 2.0" (0.0 - 50.0 mm) 7.5 mil / 0.0 - 5.9" (0.0 - 150.0 mm) 10.0 mil / 0.0 - 6.9" (0.0 - 175.0 mm) 13.0 mil / 0.0 - 8.5" (0.0 - 215.0 mm) 26.0 mil / 0.0 - 9.8" (0.0 - 250.0 mm) | | | | Storage Temperature | -40° to 140°F (-40° to 60°C) | | Operating Temperature | 32° to 104°F (0° to 40°C) | | Humidity | 5% to 95% relative humidity, non-condensing | | Durability | Designed to withstand 4.0' (1.2 m) drops | | Sealing | Sealed to resist airborne particulate contaminates | | Lighting Conditions | 4842 lux | | | | Dimensions | 4.1 x 4.0 x 5.9" (105.0 x 102.0 x 150.0 mm) | | Weight | 14.1 oz (400.0 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.8 x 7.7 x 3.4" |
