User Manual for Honeywell Performance Series 2MP Micro Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series 2MP Micro Dome
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell Performance Series 2MP Micro Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|

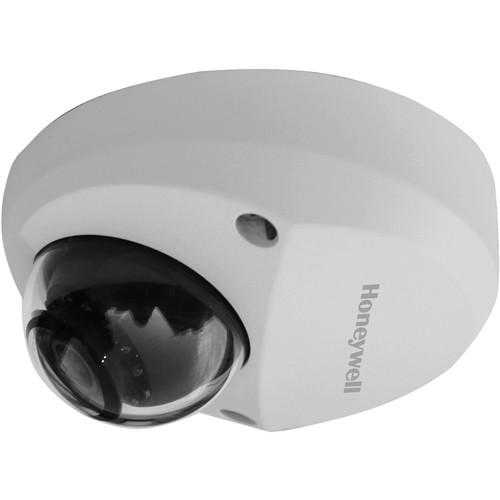

Product description The Performance Series 2MP Micro Dome Camera from Honeywell is a 1/2.7" 2MP CMOS sensor dome camera that can record 1920 x 1080 resolution video at 25/30 fps. This dome camera has a 2.8mm lens and compresses data in H.264 and MJPEG format. It also features adjustable white balance, gain control, an auto day and night ICR, digital noise reduction (3D-DNR), a 120 dB digital wide dynamic range, and backlight compensation. This camera has ten IR LEDs with a range of up to 65' illumination as well as a built-in microphone. The camera can be powered via PoE, simplifying installation and minimizing cable runs. - Smart IR technology provides even distribution of IR
- Weatherproof (IP66) and vandal-resistant (IK10) camera housing
- Plug-and-play with Honeywell 4, 8, or 16-channel Performance Series Embedded NVRs
- Remote configuration through web client or from NVR
- Compatible with HQA-BB3 junction box, HQA-WK2 wall mount, HQA-PM pole mount, and HB34S2-CM corner mount
- Supports up to 20 connections
- The camera can be configured to automatically detect and respond to events including motion in a scene and camera tampering
- Automated responses include notification through email, FTP, and HTTP, and sending a still image of events through email and/or FTP
- Supports H.264H and H.264B compression
UPC: 886618239953 In the Box Honeywell Performance Series 2MP Micro Dome Camera with Night Vision Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series 2MP Micro Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell H2W2PRV3 Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 120° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30 fps
1280 x 1024 at 25/30 fps
1280 x 960 at 25/30 fps
1280 x 720
704 x 576
704 x 480
352 x 288
352 x 240 | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711 | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S, Profile G | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Notification | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 65.62' / 20 m | | Video Management Software | HonView Touch for Mobile | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5 W | | Material of Construction | Aluminum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
