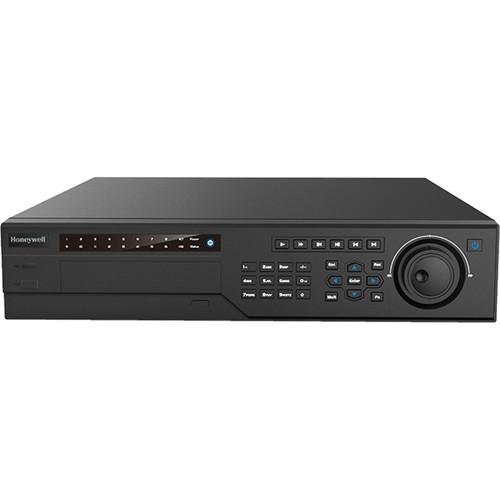

User Manual for Honeywell Performance Series 64-Channel 4K UHD NVR with 48TB HDD Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series 64-Channel 4K UHD
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell Performance Series 64-Channel 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 video channels with the Performance Series 64-Channel 4K UHD NVR with 48TB HDD from Honeywell at a resolution up to 4000 x 3000. This NVR comes with a 48TB preinstalled, and is expandable up to 64TB (8TB per HDD). Sixteen PoE ports deliver power and video connections to compatible cameras. Additionally, this device has RCA input and output connectors for two-way audio communication, an RS-232 serial port for PC communications, and four USB ports. Two HDMI ports and a VGA port deliver simultaneous video outputs, with the second HDMI output being programmable. Video compression is via H.264, H.265, MJPEG, and MPEG4 codecs.
This NVR can be remotely monitored via web browsers on PCs, or apps on Android and iOS mobile devices. - VGA and 2 HDMI simultaneous video outputs, with the second HDMI output being programmable
- Supports up to 16 alarm input channels and 6 alarm relay output channels
- Password-protected access to the NVR's video and network setup
- Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering
- Sends notifications via email, FTP, and HTTP
- RS-232 port for PC communication
- Up to four areas of a scene can be concealed from viewing and recording
- Supports uploading still images at the time of the event through email and FTP
- Supports recording a video clip of events for distribution
- Visual and auditory notifications (flashing light, bell, or siren)
- Up to 128 users on the network
UPC: 886618251719 In the Box Honeywell Performance Series 64-Channel 4K UHD NVR with 48TB HDD Power Adapter USB Mouse Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series 64-Channel 4K UHD NVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HEN643484 Specs | | | Main Processor | Quad-core embedded processor | | Operating System | Embedded Linux | | | | Audio Input / Output | 1-channel RCA input
1-channel RCA output | | Two-Way Audio | Supported | | | | Interface | 2 x HDMI (1 HDMI up to 3840 x 2160)
1 x VGA
| | Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1/4/8/9/16/25/36/64 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | Programmable | Video Output: 2nd HDMI | | Fisheye Dewarp Mode | Supported in local and web user interface | | | | Compression | H.265, H.264, MJPEG, MPEG4 | | Resolution | 12 MP (4000 x 3000), 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 4 MP (2560 x 1440), 3 MP (2048 x 1520), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576 / 704 x 480), CIF (352 x 288 / 352 x 240) | | Frame Rate | 1-15 fps (12 MP and 8 MP)
1-25/30 fps (rest of the resolutions)
| | Recording Bit Rate | 320 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s, per channel | | Recording Mode | Schedule (regular/continuous, motion detection, alarm), manual, stop | | Recording Intervals | 1 to 120 minutes (default 60 minutes) | | Pre-Event Recording | Interval: 1 to 30 seconds | | Post-Event Recording | Interval: 10 to 300 seconds | | | | Event Triggers | Recording, PTZ, tour, alarm, video push, email, FTP, snapshot, buzzer | | Video Detection | Motion Detection Zones: 396 (22 x 18), Video Loss, Camera Blank | | Alarm Input | 16 channels | | Relay Output | 6 channels | | | | Sync | 1/4/8/16 (maximum 4-ch at 8 MP, 8-ch at 4 MP, or 16-ch at 1080p simultaneous playback) | | Search Modes | Time/date, alarm, motion detection, exact search (accurate to a second), smart search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network, internal SATA burner, eSATA device | | | | Ethernet | 1 x RJ45 port (10/100/1000 Mb/s) | | PoE | 16 x IEEE 802.3af/at | | Supported Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm Server, IP search, P2P | | Maximum Number of Users | 128 | | Network Throughput | Input: 320 Mb/s
Output: 320 Mb/s | | Compatible Mobile Devices | iPhone, iPad, Android | | | | Internal HDD | 8 x SATA ports, up to 64 TB (48 TB preinstalled) | | External HDD | 1 x eSATA port | | | | USB Ports | 4 x USB (2 x rear USB 3.0, 2 x front USB 2.0) | | RS-232 | 1 x RS-232 (for PC communications and keyboard) | | | | Power Supply | Single, 100-240 VAC, 50/60 Hz | | Power Consumption | NVR: 17.5 W max (without HDD)
PoE: 25.5 W for a single port (150 W total) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | 10 to 90%, non-condensing | | Storage Conditions | -4 to 158°F (-20 to 70°C)
0 to 90% relative humidity | | | | Dimensions | 17.3 x 17.9 x 3.7" (440 x 454 x 95 mm) | | Weight | 15.4 lb (7 kg) without HDD |
