User Manual for Honeywell Performance Series 8-Channel 4K UHD Embedded NVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series 8-Channel 4K UHD
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell Performance Series 8-Channel 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|

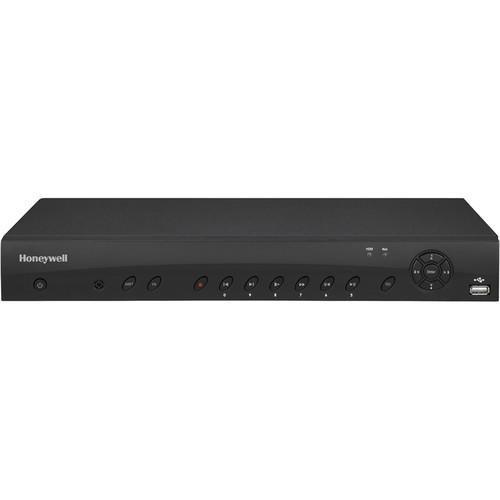

Product description Record from and manage up to 8 cameras with the HEN08123 from Honeywell. This NVR offers a recording resolution up to 3840 x 2160. It comes with a 2TB HDD preinstalled. HDD storage is expandable to 16TB (available separately). H.265 and H.264 video compression keep file sizes manageable while maintaining quality. Two-way audio communication is supported thanks to an RCA audio I/O.
This NVR supports up to 128 users. HDMI and VGA connections offer simultaneous video output to an external monitor (available separately). Apps for iOS and Android devices enable remote access. - Embedded quad-core processor and Linux OS
- Simultaneous HDMI and VGA video output to an external monitor (available separately)
- 4 alarm inputs and 2 relay outputs
- 2 USB ports (1 x USB 3.0 and 1 x USB 2.0)
- RS-232 port for POS communications
- Sends notifications via email, FTP, and HTTP
- Supports uploading still images at the time of the event through email and FTP
- Password-protected access to the NVR's video and network setup
- Configurable to detect and respond to motion in the scene, alarm inputs, and network failure or tampering automatically
- Up to four areas of a scene can be concealed from viewing and recording
- Supports recording a video clip of events for distribution
- Stores video clips and snapshots to external storage (i.e. PC via internet connection or external network storage servers)
- Visual and auditory notifications (flashing light, bell, or siren)
- Integrates with MAXPRO Cloud and I-View Now
- Remote configuration and firmware updates via web client and config tool
UPC: 886618262326 In the Box Honeywell Performance Series 8-Channel 4K UHD Embedded NVR with 2TB HDD Power Adapter USB Mouse Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series 8-Channel 4K UHD Embedded NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell Performance Series Specs | | | Main Processor | Quad-core embedded processor | | Operating System | Embedded Linux | | | | I/O | 1/1, RCA | | Two-Way Audio | Supported | | | | Interface | 1 x HDMI
1 x VGA | | Resolutions | 3840 x 2160
1920 x 1080
1280 x 1024
1280 x 720 | | Display Split | 1/4/8/9 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | H.265, H.264 | | Recording Resolutions | 3840 x 2160 (8 MP)
3072 x 2048 (6 MP)
2560 x 1920 (5 MP)
2560 x 1440 (4 MP)
2048 x 1520 (3 MP)
1920 x 1080 (1080p)
1280 x 720 (720p)
704 x 576 / 704 x 480 (D1)
352 x 288 / 352 x 240 (CIF) | | Frame Rate | 1-15 fps (8 MP)
1-25/30 fps (rest of the resolutions for each channel) | | Recording Bit Rate | 200 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s, per channel | | Recording Modes | Schedule (regular/continuous, motion detection, alarm), manual, stop | | Recording Intervals | 1 to 120 minutes (default 60 minutes) | | Pre-Event Recording | 1 to 30 seconds | | Post-Event Recording | 10 to 300 seconds | | | | Event Triggers | Recording, PTZ, tour, alarm, video push, email, FTP, snapshot, buzzer, screen tips | | Video Detection | Motion Detection Zones: 396 (22 x 18)
Video loss
Tampering | | Alarm Inputs | 4 | | Relay Output | 2 | | | | Internal HDD | 2 x SATA III ports, up to 16 TB (2 TB preinstalled) | | | | Sync Playback | 1/4/8 | | Decoding | 2-channel in 8 MP at 15 fps
4-channel in 1080p at 30 fps | | Search Modes | Time/date, alarm, motion detection, exact search (accurate to a second), smart search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network | | | | Ethernet | 1 x RJ45 (1000M) | | PoE Ports | 8 x IEEE 802.3af/at | | Supported Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search, P2P | | Maximum Number of Users | 128 | | Network Throughput | 200 Mb/s | | Compatible Mobile Devices | iPhone, iPad, Android | | | | USB Ports | 1 x USB 3.0
1 x USB 2.0 | | RS-232 | 1 port for POS communications | | | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | <9.6 W (without HDD) | | PoE | Maximum 25.5 W for single port, 80 W in total | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Relative Humidity | 10 to 90%, non-condensing | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Regulatory Certifications | Emissions:
FCC Part 15B, EN55032: 2012/AC: 2013, EN61000-3-2: 2014, EN61000-3-3: 2013
Immunity:
EN50130-4: 2011
Safety:
EU: EN60950-1
North America UL listed to UL/CSA 60950-1
RoHS:
EN50581: 2012 | | Rack Units | 1 RU | | Dimensions | 14.8 x 12.9 x 2.1" / 375 x 327.5 x 53 mm | | Weight | 5.7 lb / 2.6 kg |
