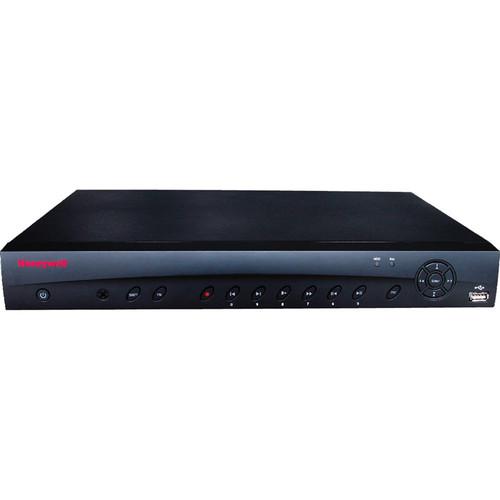

User Manual for Honeywell Performance Series 8-Channel 5MP PoE NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series 8-Channel 5MP PoE
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell Performance Series 8-Channel 5MP PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Stream and record up to eight video channels with the Performance Series 5MP PoE NVR from Honeywell, at resolutions of up to 5MP. Pre-installed with a 4TB HDD, the recorder can be expanded to a total internal memory of 12TB. External storage options include PCs via Internet connection, external network servers such as FTP sites, and USB memory devices. Eight PoE ports provide power and video connection to various types of Honeywell cameras. Both H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The Performance Series NVR enables simultaneous live view and playback of up to eight channels at 1080p resolution via its HDMI and VGA ports. Up to eight channels can be simultaneously recorded at full frame rate 1080p, 3MP, 4MP, or 5MP resolution, with a maximum transfer speed of 8 Mbps per channel. The NVR is equipped with RCA connectors for bi-directional audio, an RS-232 serial port for PC communication, and a Molex terminal for setting up a maximum of eight alarm input channels and four alarm relay output channels. Internet connectivity enables remote monitoring via most web browsers and via Android and iOS devices with the app installed (app available separately). - Up to four areas of a scene can be concealed from viewing and recording
- Password-protected access to the NVR's video and network setup
- HDMI/VGA simultaneous video output
- Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering
- Sends notifications via email, FTP, and HTTP
- Supports uploading still images at the time of the event through email and FTP
- Supports recording a video clip of events for distribution
- Visual and auditory notifications (flashing light, bell, siren)
In the Box Honeywell Performance Series 8-Channel 5MP PoE NVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series 8-Channel 5MP PoE NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell Performance Series Specs | | | Main Processor | Dual-core embedded processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 8 channels | | Audio | Bidirectional, 1 channel input/output | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 1920 x 1080
1280 x 1024
1280 x 720
1024 x 768 | | Display Split | 1/4/8 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | H.264/MJPEG | | Resolution | 5 MP (2560 x 1920)
4 MP (2688 x 1520 & 2560 x 1440)
3 MP (2304 x 1296 & 2048 x 1536)
1080p (1920 x 1080)
720p (1280 x 720)
D1 (704 x 480)
SXGA (800 x 600)
1.3MP (1280 x 1024) | | Recording Rate | 200/240 fps at 1080p | | Bit Rate | 48-8192 kbps | | Recording Mode | Manual, schedule, stop | | Recording Intervals | 1-120 minutes (Default: 60 minutes)
Pre-recording: 1-30 seconds | | | | Triggers | Recording, tour, alarm, email, FTP, buzzer, screen tips | | Video Detection | Motion detection, motion detection zones (396: 22 x 18), video loss & camera blank, and privacy masking | | Alarm Input | 8 channels | | Relay Output | 4 channels | | | | Playback | 1/4/8 | | Search Modes | Time/date, alarm, motion detection, exact search | | Playback Function | Play, pause, stop, rewind, fast play, slow play, full screen, backup | | Backup Modes | USB device & network | | | | Operating System | Windows XP, Windows Vista, Windows 7 | | CPU Requirements | Pentium M 2.16 GHz or Intel Core 2 Duo 2 GHz | | System Memory | Minimum: 2 GB | | Network Card | RJ45 (10/100Base-T) | | Web Browser | Microsoft Internet Explorer 6.0 or later & Mozilla Firefox | | Supported Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm server, IP search | | User Limit | 20 users | | Smart Phone | iOS & Android | | | | Internal Storage | Pre-Installed: 4TB
SATA: 2x ports (each supports HDD up to 6 TB), RAID (redundancy)
Storage Expandability: Up to 12 TB total | | | | Ethernet | 1 x RJ45 port (10/100/1000 Mbps) | | PoE | 8 x ports (IEEE 802.3at/af) | | USB | 1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel | | Audio | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | Other Connectors | 1 x RS-232
1 x Molex terminal | | | | Power Supply | 100-240 VAC
50/60 Hz internal PSU | | Power Consumption | 30-225 W, depending on the number of HDD installed and PoE loading (maximum 768 BTU/hour) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10-90% | | | | Emissions | FCC part 15B, CE EN55022 | | Immunity | CE EN50130-4 | | Safety | EU: EN60950-1
North America: UL/CSA 60950-1 | | Dimensions | 14.8 x 12.6 x 2.1" (375 x 320 x 53 mm) | | Weight | 5.51 lb (2.5 kg), without HDD | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 17.5 x 16.9 x 7.1" |
