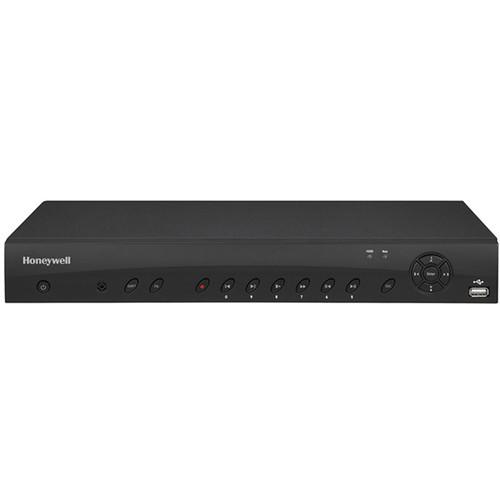

User Manual for Honeywell Performance Series Focus 32-Channel 12MP PoE NVR with 16TB HDD Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series Focus 32-Channel 12MP
- Product category: Network Video Recorders (NVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Network Video Recorders (NVRs)
|
User manual for the Honeywell Performance Series Focus 32-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 video channels with the Performance Series Focus PoE NVR from Honeywell at resolutions up to 12MP. Equipped with four SATA ports, each of which can accommodate an HDD up to 8TB, this NVR supports up to 32TB of internal storage (16TB HDD preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG, or MPEG-4 compression. An integrated PoE switch powers up to 16 IP cameras directly via network connection.
The NVR enables simultaneous playback of up to 16 channels via its VGA and dual HDMI ports, supporting resolutions of up to 3840 x 2160 depending on the number of channels being displayed and the video output being used. Up to 16 channels can be recorded simultaneously with a maximum incoming bandwidth of 320 Mb/s. Internet connectivity enables remote monitoring via PCs as well as from iOS and Android devices. The NVR is equipped with RCA connectors for bidirectional audio and with an RS-232 serial port for PC & keyboard communication. - High decoding capability for UHD 4K viewing and recording
- Simultaneous view of up to 16 channels with synchronized real-time playback on your monitor
- Fisheye dewarping via local and remote user interfaces
- Remote monitoring via mobile apps for iOS and Android devices (apps available separately)
- Password-protected access to NVR's video and network setup
- Allows concealing up to four areas of a scene from viewing and recording
- External storage of video clips and snapshots on client's PC, external network storage servers such as FTP sites, and USB memory devices
- Quick wizard and PoE support for fast setup
- Simple remote configuration and firmware updating through the Honeywell Viewer web client and the Honeywell Config tool
- Email, FTP, and/or HTTP notifications
- Enables recording of video clips of events for distribution
- Supports uploading still images at the time of the event through email and/or FTP
- Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering
- Supports visual or auditory notifications (flashing light, bell, or siren)
UPC: 886618251641 In the Box Honeywell Performance Series Focus 32-Channel 12MP PoE NVR with 16TB HDD Mouse Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series Focus 32-Channel 12MP PoE NVR with 16TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HEN322164 Specs | | | Main Processor | Quad-core embedded processor | | Operating System | Linux, embedded | | | | IP Camera Inputs | 32 channels | | Audio Input/Output | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | Two-Way Audio | Supported | | | | Interface | 2 x HDMI ports (1 x HDMI up to 3840 x 2160)
1 x VGA port | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1, 4, 8, 9, 16, 25, 36 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | Fisheye Dewarp Mode | Supported in local and web-user interfaces | | | | Compression | H.265, H.264, MJPEG, MPEG-4 | | Resolution | 12 MP (4000 x 3000), 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 4 MP (2560 x 1440), 3 MP (2048 x 1520), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576 / 704 x 480), CIF (352 x 288 / 352 x 240) | | Frame Rate | 1-15 fps (12 MP and 8 MP); 1-25/30 fps (all other resolutions) | | Bit Rate | 320 Mb/s total
16 kb/s to 20 Mb/s per channel | | Recording Mode | Schedule (regular/continuous, motion detection, alarm)
Manual
Stop | | Recording Intervals | 1 to 120 minutes (60 minutes default)
Pre-Event: 1 to 30 seconds
Post-Event: 10 to 300 seconds | | | | Trigger Events | Recording, PTZ, tour, alarm, video push, email, FTP, snapshot, buzzer | | Video Detection | Motion Detection: 396 (22 x 18) zones
Video loss
Camera blank | | Alarm Input | 16 x channels | | Relay Output | 6 x channels | | | | Sync Playback | 1, 4, 8, 16 (maximum 4-channel at 8 MP, 8-channel at 4 MP, or 16-channel at 1080p) | | Search Modes | Time/date, alarm, motion detection (MD), exact search (accurate to a second), smart search | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network, internal SATA burner | | | | Ethernet | 1 x RJ45 port (10/100/1000 Mb/s) | | PoE | 16 x ports (IEEE 802.3af/at) | | Supported Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search, P2P | | Maximum Number of Users | 128 users | | Network Throughput | Input: 320 Mb/s
Output: 320 Mb/s | | Compatible Mobile Devices | iPhone, iPad, Android | | | | Internal HDD | 4 x SATA ports, up to 32 TB total
16 TB preinstalled | | External HDD | 1 x eSATA port | | | | USB Ports | 2 x USB 3.0, rear panel
1 x USB 2.0, front panel | | RS-232 | 1 x port (for PC communications and keyboard) | | | | Power Supply | Single, 100-240 VAC, 50/60 Hz | | Power Consumption | Up to 17.5 W, without HDD
PoE: 25.5 W for single port (150 W total) | | | | Emissions | FCC part 15 B, EN55032: 2012 +AC: 2013, EN61000-3-2: 2014, EN61000-3-3: 2013 | | Immunity | EN50130-4: 2011+A1: 2014, EN55024: 2010+A1: 2015 | | Safety | North America: UL listed to UL/CSA 60950-1
EU: EN60950-1 | | RoHS | EN50581: 2012 | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | 10-90%, non-condensing | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Dimensions | 17.3 x 16.3 x 3.0" / 44.0 x 41.3 x 7.5 cm | | Weight | 10.3 lb / 4.65 kg without HDDs |
