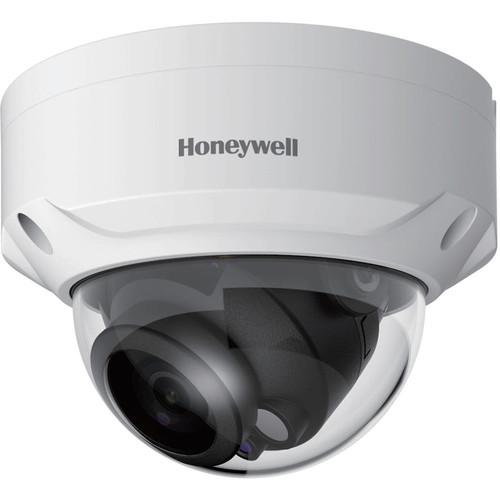

User Manual for Honeywell Performance Series H4W4PER2 4MP Outdoor Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series H4W4PER2 4MP Outdoor
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell Performance Series H4W4PER2 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white H4W4PER2 from Honeywell uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 20 fps. IR LEDS provide up to 148' of night vision. The 2.7-13.5mm varifocal lens delivers a 104-28° horizontal field of view and 5x optical zoom. An onboard memory card slot supports microSDHC cards up to 128GB. microSDHC cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is ONVIF-compliant for profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. - NTSC and PAL video standards
- H.265+, H.265, H.264+, and H.264 video compression
- IR cut filter for day and night functionality
- 5x optical and 16x digital zoom
- 120 dB wide dynamic range, backlight compensation, and highlight compensation
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Privacy masking for up to 4 configurable zones
- Motion detection for up to 4 configurable zones
- ROI (region of interest) for up to 4 configurable zones
- Events include no microSD card, microSD card error, microSD card capacity warning, network disconnection, IP address conflict, illegal access, video tampering, and motion detection
- Event notifications include recording to microSD card, NAS & FTP, relay output, email, and snapshot
- Compatible with Windows 7 (32-bit) and Internet Explorer 11 or higher
- FCC, EMC (EN 55032 & EN 50130-4), UL/CSA, and RoHS certified
UPC: 886618254833 In the Box Honeywell Performance Series H4W4PER2 4MP Outdoor Network Mini Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series H4W4PER2 4MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell H4W4PER2 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.7 to 13.5mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 5x
Digital: 16x | | Lens Field of View | Horizontal: 104 to 28°
Vertical: 55 to 16° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.03 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds 1/100,000 to 1/3(4) | | | | Streaming Resolution | 2688 x 1520 at 20 fps (10.24 Mb/s )
2304 x 1296 at 30 fps
704 x 576 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, FTPS, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 148' / 45.11 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 8.5 W | | Material of Construction | Aluminum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 3.5 x W: 4.8" / H: 88.9 x W: 121.9 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.2 x 6.2 x 5.35" |
