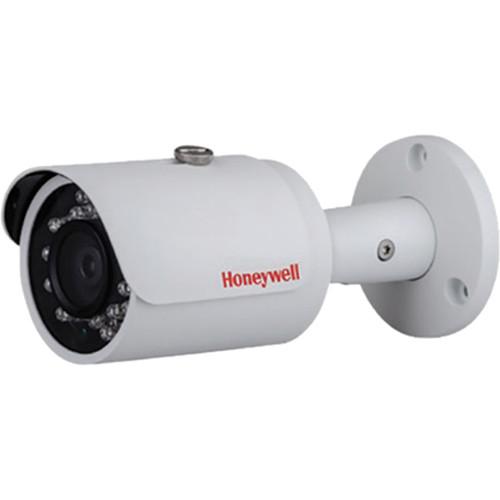

User Manual for Honeywell Performance Series HBD1PR1 1.3MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series HBD1PR1 1.3MP Outdoor
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell Performance Series HBD1PR1 1.3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The Performance Series HBD1PR1 1.3MP Outdoor Network Bullet Camera with Night Vision from Honeywell has a 1.3MP 1/3" progressive scan CMOS sensor and a 3.6mm fixed lens to capture 1280 x 960 resolution video at up to 30 fps in medium-sized areas. An IR cut filter and IR LEDs allow the camera to produce clear images at night from up to 100' away. RJ45 Ethernet with PoE allows for quick installation, while the IP66-rated enclosure makes the camera suitable for outdoor use. - Captures 1280 x 960 resolution video at up to 30 fps
- IR LEDs for night vision up to 100'
- 3.6mm lens has a 71° horizontal field of view
- PoE for power and network connection
- IP66-rated enclosure for outdoor use
UPC: 886618228681 In the Box Honeywell Performance Series HBD1PR1 1.3MP Outdoor Network Bullet Camera with Night Vision Mounting Template Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series HBD1PR1 1.3MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HBD1PR1 Specs | | | Image Sensor | 1.3 MP 1/3" progressive scan CMOS sensor | | Effective Pixels | 1280 x 960 | | Electronic Shutter Speed | Auto/manual, 1/3 to 1/30,000 sec | | Minimum Illumination | 0.08 lux, f/2.1 (color)
0 lux (IR LEDs on) | | S/N Ratio | >50 dB | | | | Number of IR LEDs | 24 | | IR Range | Up to 100' (30 m) | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC, HLC, DWDR | | White Balance | Auto, manual | | Gain Control | Auto, manual | | Noise Reduction | 3D | | Privacy Masking | Up to 4 areas | | | | Focal Length | 3.6mm | | Aperture | f/2.1 | | Focus Control | Fixed | | Field of View | Horizontal: 71° | | Lens Type | Fixed | | | | Compression | H.264 (main, high, baseline profile) and MJPEG | | Resolution | 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 1.3 MP, 720p (1 to 25/30 fps)
Sub Stream: D1, CIF (1 to 25/30 fps) | | Bit Rate | H.264: 4 to 8192 kbps | | Modes | Corridor mode | | | | Ethernet | RJ45 10/100BaseT | | Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS | | Standards | ONVIF Profile S | | User Access | Maximum 20 users | | Mobile OS Support | HonView Touch app for iOS and Android | | | | Power Supply | 12 VDC or PoE (IEEE 802.3af) | | Maximum Power Consumption | 4.8 W with IR LEDs on | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | 10 to 100% RH, condensing | | IP Rating | IP66 | | Approvals | FCC, Part 15B, Class B | | Dimensions | 2.76 x 6.5" (70 x 165 mm) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.1 x 3.8 x 3.7" |
