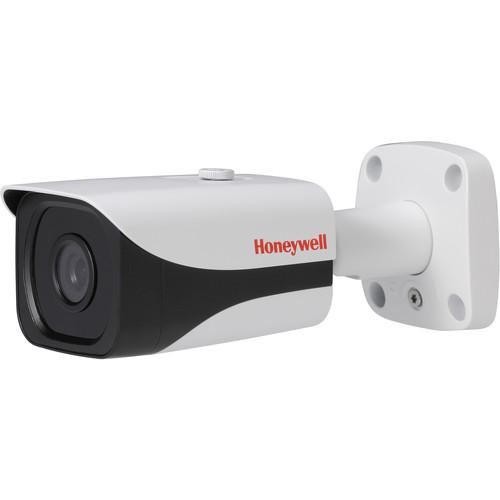

User Manual for Honeywell Performance Series HQA 1080p Outdoor Bullet Camera with 3.6mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series HQA 1080p Outdoor
- Product category: Wired Analog & HD Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired Analog & HD Cameras
|
User manual for the Honeywell Performance Series HQA 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The Performance Series HQA 1080p Indoor/Outdoor IR Bullet Camera from Hikvision captures full HD images using a 1/3" 2MP CMOS sensor and a 3.6mm fixed focal lens. Thanks to 24 built-in IR LEDs, the camera can capture images of objects up to 65' away in complete darkness. It supports long-distance transmission over coaxial cables with low attenuation and latency, to a range of up to 984'. This compact camera uses existing BNC cabling and can be ceiling or wall mounted. -
- True Day/Night capability
- Smart infrared (IR) technology for even distribution of IR illumination
- Weatherproof IP66-rated housing
- Vandal resistance
- 3-axis rotation
In the Box Honeywell Performance Series HQA 1080p Outdoor Bullet Camera with 3.6mm Lens & Night Vision Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series HQA 1080p Outdoor Bullet Camera with 3.6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HB74HD2 Specs | | | Video Standard | NTSC/PAL | | Scanning System | Progressive | | Image Sensor | 1/3" 2 MP CMOS | | Number of Pixels | H x V: 1920 x 1080 | | Minimum Illumination | Color: 0.05 lux at f/1.2 (AGC On)
B&W: 0 lux (IR LEDs On) | | Video Output | 1-channel BNC HQA 1080p/720p, switchable to standard definition CVBS video | | Video Frame Rate | 1920 x 1080 at 25/30 fps
1280 x 720 at 25/30/50/60 fps | | Sync System | Internal | | Automatic Electronic Shutter (AES) | 1/100,000 to 1/60 sec | | Lens Type | 3.6mm fixed | | Horizontal Angle of View | 67.2° | | Vertical Angle of View | 37.2° | | IR LEDs | 850 nm, 24 LEDs | | IR Illumination | Up to 65' / 20 m | | Day/Night | Auto with ICR | | Gain Control | Auto | | White Balance | Auto | | Backlight Compensation | On/Off | | Digital WDR | On/Off | | Digital Noise Reduction | 2D/3D | | Compatibility | H.264 4-Ch 1080p HQA DVR
H.264 4/8/16-Ch 1080p HQA DVR | | | | Input Voltage | 12 VDC ±10% (not included) | | Power Consumption | 4.5 W maximum (IR LEDs on) | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Relative Humidity | 10 to 100%, condensing | | IP Rating | IP66 | | | | Emissions | FCC, Part 15B, Class B, EN 55022 | | Immunity | EN 50130-4 | | RoHS | EN 50581 | | | | Connectors | Video Output: BNC connector
Power Input: 2.1 mm plug | | Construction | Housing: Die-cast aluminum
Finish: Light gray powder coating | | Dimensions | 7.02 × 2.76" / 17.84 x 7.00 cm | | Weight | 1.1 lb / 0.5 kg |
