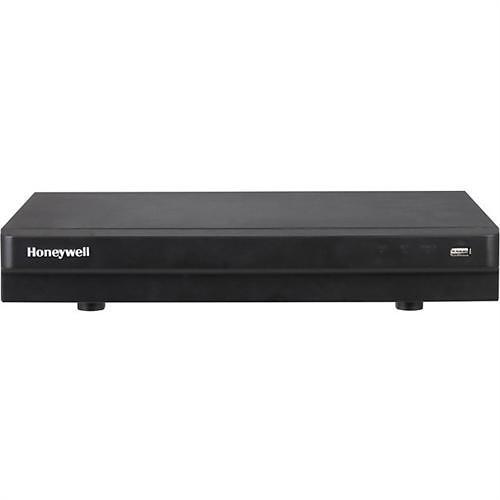

User Manual for Honeywell Performance Series HQA 4-Channel 4MP Hybrid DVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series HQA 4-Channel 4MP
- Product category: Digital Video Recorders (DVRs) Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Digital Video Recorders (DVRs)
|
User manual for the Honeywell Performance Series HQA 4-Channel 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Stream and record up to four analog HD, plus up to two IP video channels with the Performance Series HQA 4-Channel Hybrid DVR from Honeywell at resolutions up to 4MP. The DVR comes pre-installed with a 1TB HDD. Additional drives (available separately) can be added for up to 8TB of internal storage. External storage options include PCs via internet connection, network servers such as FTP, and USB devices. Transmission bandwidth and storage are optimized while ensuring high-quality recording and playback using H.264 and H.264+ dual-stream video compression.
The DVR enables simultaneous playback of up to four channels via HDMI and VGA ports at up to 3840 x 2160 resolution. 4MP, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, and QCIF recording resolutions are supported, with main stream frame rates of 1 to 15 fps at 4MP and 1 to 30 fps at all other supported resolutions. The DVR is equipped with RCA connectors for bidirectional audio, an RS-232 serial port for PC and keyboard communication, and an RS-485 port for PTZ control. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - High decoding capability for full HD viewing and recording
- Fast, plug-and-play setup with quick wizard
- Synchronous playback and smart search
- Motion detection and camera tamper detection settings can trigger event notifications such as automatic emails (with attached video or snapshot) and automatic alerts (such as buzzers)
- Remote configuration and firmware updating through Honeywell Viewer web client and Honeywell Config tool
- Password-protected access to cameras' and DVRs' video and network setup
- HD-quality video using your existing coax infrastructure
UPC: 886618248887 In the Box Honeywell Performance Series HQA 4-Channel 4MP Hybrid DVR with 1TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series HQA 4-Channel 4MP Hybrid DVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HRHT4041 Specs | | | Main Processor | Embedded processor | | Operating System | Linux, embedded | | | | Inputs | HQA: 4 channels coax
IP: 2 channels | | Standard | HQA: 4 MP, Up-the-Coax control supported
Analog: NTSC/PAL CVBS, including 960H | | | | Audio Input | 1 x RCA port | | Audio Output | 1 x RCA port | | Two-Way Audio | Supported | | | | Interface | 1 x HDMI (up to 3840 x 2160)
1 x VGA | | Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1, 4, 6 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | H.264+ and H.264 | | Resolution | 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), 960H (960 x 576 / 960 x 480), D1 (704 x 576 / 704 x 480), HD1 (352 x 576 / 352 x 480), BCIF (704 x 288 / 704 x 240), CIF (352 x 288 / 352 x 240), QCIF (176 x 144 / 176 x 120) | | Recording Rate | Main Stream: 1-15 fps (4 MP), 1-25/30 fps (1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF)
Secondary Stream: 1-15 fps (D1, CIF, QCIF) | | Bit Rate | 8 to 6144 kb/s | | Recording Mode | Auto: Regular, motion detection, video loss, tampering, alarm, intelligence
Manual
Stop | | Recording Intervals | 1 to 60 minutes (default 60 minutes) | | Pre-Recording | Interval: 1 to 30 seconds | | Post Recording | Interval: 10 to 300 seconds | | | | Triggers & Events | Recording, PTZ, tour, email, FTP, spot, buzzer, screen tips | | Video Detection | Motion detection, video loss, video tampering, diagnosis | | | | Playback | Sync: 1, 4 | | Search Modes | Time/date, alarm, motion detection, exact search (accurate to a second), intelligence, smart search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network | | | | Ethernet | 1 x RJ45 port (1000 Mb/s) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, IP search | | Maximum Number of Users | 128 | | Compatible Mobile Devices | iPhone, iPad, Android (phone and tablet) | | | | Internal Storage | 1 x SATA HDD port, up to 8 TB
1 TB pre-installed | | | | USB | 1 x USB 2.0 port
1 x USB 3.0 port | | RS-232 | 1 x port, for PC communication and keyboard | | RS-485 | 1 x port, for PTZ control | | | | Power Supply | 12 VDC, 2 A | | Power Consumption | 15 W (without HDD) | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 0 to 90% | | | | Emissions | FCC part 15B, EN 55032 | | Immunity | EN 50130-4 | | Safety | UL 60950-1, EN 60950-1 | | RoHS | EN 50581 | | | | Dimensions | 12.8 x 9.7 x 2.2" / 32.5 x 24.5 x 5.5 cm | | Weight | 3.3 lb / 1.55 kg without HDD | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 14.6 x 12.0 x 4.7" |
