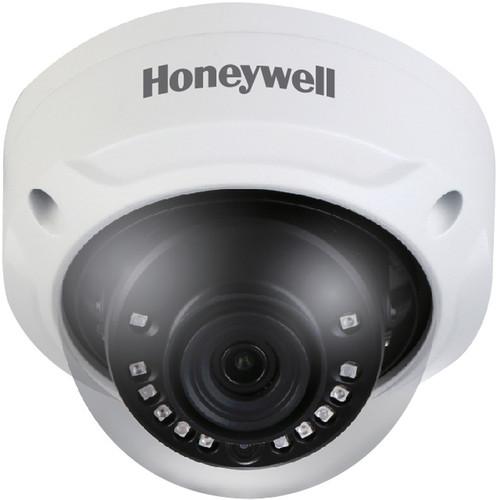

User Manual for Honeywell Performance Series HQA 4MP Outdoor Mini Dome Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Honeywell Performance Series HQA 4MP Outdoor
- Product category: Wired Analog & HD Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired Analog & HD Cameras
|
User manual for the Honeywell Performance Series HQA 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white Performance Series HQA 4MP Outdoor Mini Dome Camera from Honeywell features a 1/3" progressive scan CMOS sensor and 2.8mm fixed lens for capturing video at a maximum resolution of 2560 x 1440. Enclosed in an IP66- and IK10-rated housing, it can be used for both indoor and outdoor environments where vandalism is a concern. This day/night camera provides 24-hour surveillance thanks to an IR cut filter and built-in IR LEDs with a range of up to 100'. - 1/3" progressive scan CMOS sensor offers a maximum resolution of 2560 x 1440
- Long distance transmission over coaxial cable with low attenuation and latency up to 1640' using RG-59
- True day/night provides vivid color images by day and clear black-and-white images at night with ICR
- Smart IR technology provides even distribution of IR
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
- Can withstand temperatures from -22 to 140°F
- Plug-and-play compatible with Honeywell HRHT 4/8/16-channel Performance Series HQA DVRs
- Powered via a 12 VDC power supply
- Uses existing BNC cabling (no rewiring required)
- Remote configuration through web client or from a DVR
- Low-light performance down to 0.01 lux in color or 0 lux in B&W with IR LEDs on
UPC: 886618248849 In the Box Honeywell Performance Series HQA 4MP Outdoor Mini Dome Camera with Night Vision & 2.8mm Lens 3 x Self-Tapping Screws 3 x Plastic Wall Anchors Mounting Template Sticker Allen Key (L-Wrench) Power Pigtail Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series HQA 4MP Outdoor Mini Dome Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HD72HD4 Specs | | | Video Standard | NTSC | | Scanning System | Progressive scan | | Image Sensor | 1/3" 4.1 MP CMOS | | Number of Pixels | 2688 x 1520 | | Minimum Illumination | 0.01 lux, f/1.5 (color)
0 lux (B&W with IR LEDs on) | | S/N Ratio | 65 dB or more | | Resolution | 4 MP (2560 x 1440) | | Frame Rate | 15 fps at 4 MP
25/30 fps at 1920 x 1080, 1280 x 720 | | Video Output | 1-channel BNC high definition video output
1-channel BNC CVBS video output | | Electronic Shutter Speed | Auto/Manual: 1/100,000 to 1/3 sec | | IR LEDs | 12 | | IR Distance | Up to 100' /30.48 m | | Day/Night | Auto (ICR)/Color/B&W | | Noise Reduction | 2D/3D | | Lens | 2.8mm fixed | | Horizontal Angle of View | 79° | | | | Power Supply | 12 VDC
