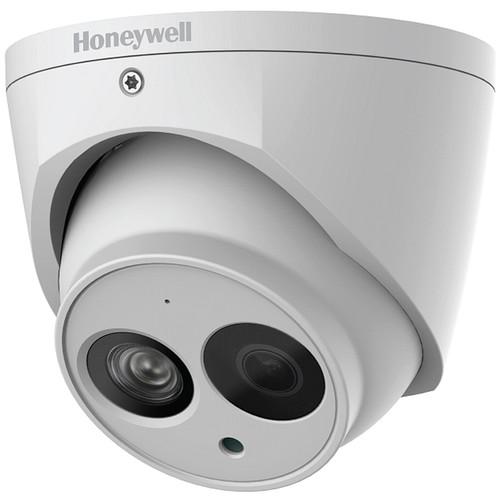

Product description The white Performance Series HQA HD30HD4 4MP Outdoor Turret Camera from Honeywell uses a 1/3" 4.1MP progressive scan CMOS sensor to transmit 2560 x 1440 resolution video at 15 fps. An IR LED provides up to 164' of night vision. The camera's 3.6mm fixed lens delivers a 79° horizontal field of view.
This turret camera uses a BNC type connection. It is housed in an IP66-rated aluminum enclosure that is suitable for outdoor use. - Cost-effective surveillance solution that uses existing BNC cabling (no rewiring required)
- Plug-and-play operation with HRHT Hybrid 4MP HQA DVRs (available separately)
- Remote configuration via web client or DVR
- NTSC and PAL video standards
- True day and night modes thanks to IR cut filter
- Up to 1640' transmission range over RG-59 coax cable
- 120 dB wide dynamic range
UPC: 886618248832 In the Box Honeywell Performance Series HQA HD30HD4 4MP Outdoor Turret Camera with Night Vision Mounting Template Sticker 4 x Self-Tapping Screws 4 x Plastic Anchors Power Pigtail Allen Key (L-Wrench) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Performance Series HQA HD30HD4 4MP Outdoor Turret Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HD30HD4 Specs | System Compatibility | HRHT Hybrid 4 MP HQA DVRs | | Video Standard | NTSC, PAL | | Image Sensor | 1/3" 4.1 MP Progressive Scan CMOS | | Number of Pixels | 2688 x 1520 | | Electronic Shutter Speed | NTSC: 1/100,000 to 1/3 Seconds
PAL: 1/100,000 to 1/4 Seconds | | Minimum Illumination | Color: 0.01 Lux at f/1.5
B&W: 0 Lux with IR | | S/N Ratio | ≥65 dB | | Resolution | 2560 x 1440 (4 MP) | | Frame Rate | 2560 x 1440 at 15 fps
1920 x 1080 at 30/25 fps
1280 x 720 at 30/25 fps | | Video Output | 1-Channel BNC HD Video Output
1-Channel BNC CVBS Video Output | | Number of IR LEDs | 1 | | IR Range | 164' / 50 m | | Day/Night | Auto IR Cut Filter, Color, B&W | | Wide Dynamic Range | 120 dB | | Noise Reduction | 2D-DNR, 3D-DNR | | Lens | 3.6mm Fixed | | Field of View | Horizontal: 79° | | Power Supply | 12 VDC ±25% | | Power Consumption | Maximum 5.3 W (IR LED On) | | Operating Temperature | -22 to 140°F / -30 to 60°C
Startup Temperature: -22°F / -30°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Relative Humidity | 0 to 90%, Non-Condensing | | IP Rating | IP66 | | Regulatory | Emissions: FCC PART 15B
Safety: UL60950-1 | | Material of Construction | Die-Cast Aluminum Housing | | Dimensions (Diam. x H) | Ø4.2 x 3.7" / Ø106 x 93.7 mm | | Weight | 1.04 lb / 0.47 kg | | | | Package Weight | 1.425 lb | | Box Dimensions (LxWxH) | 7.1 x 6.1 x 5.5" |
