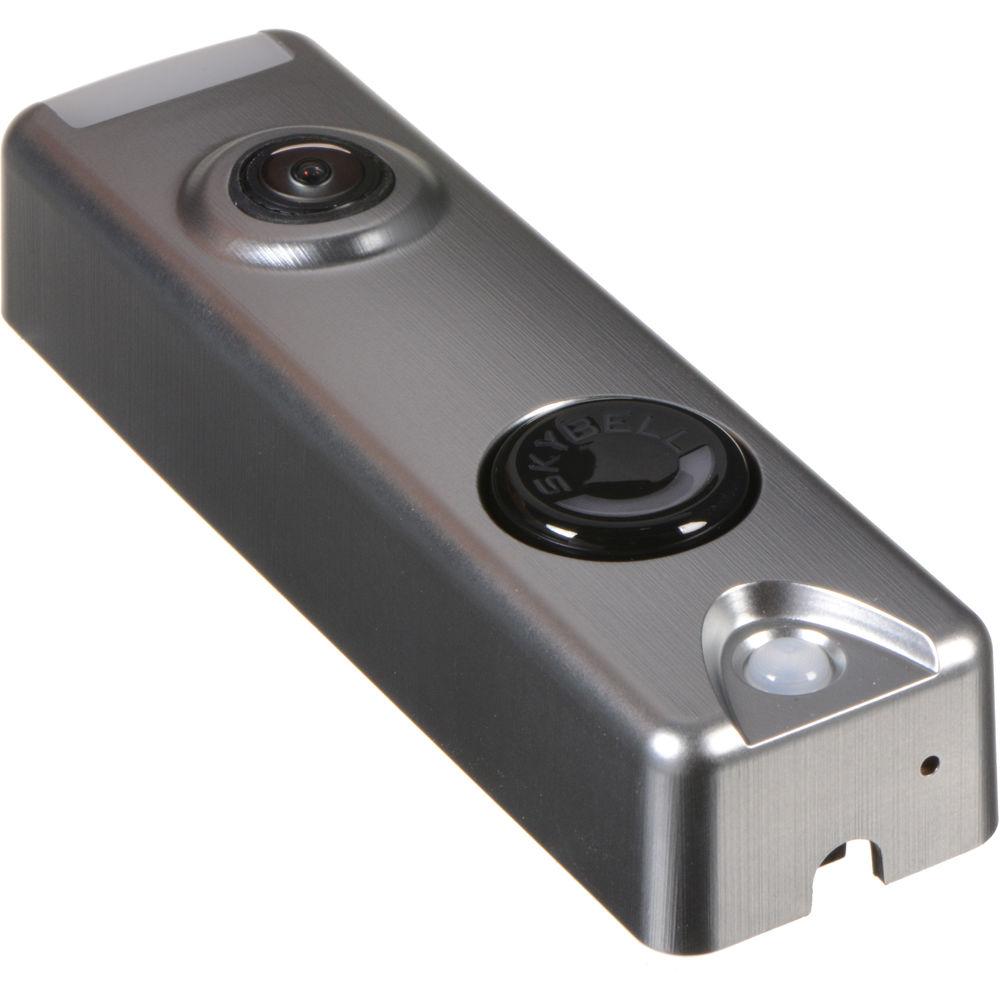

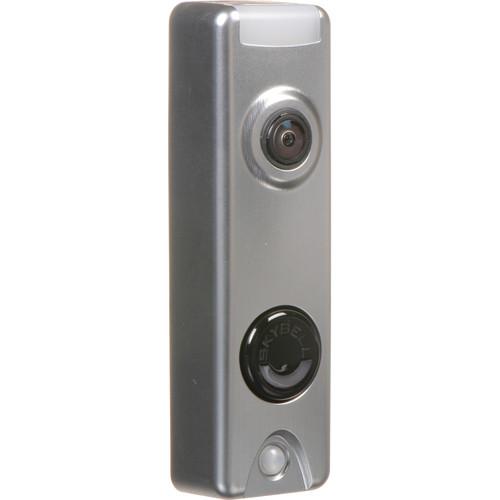

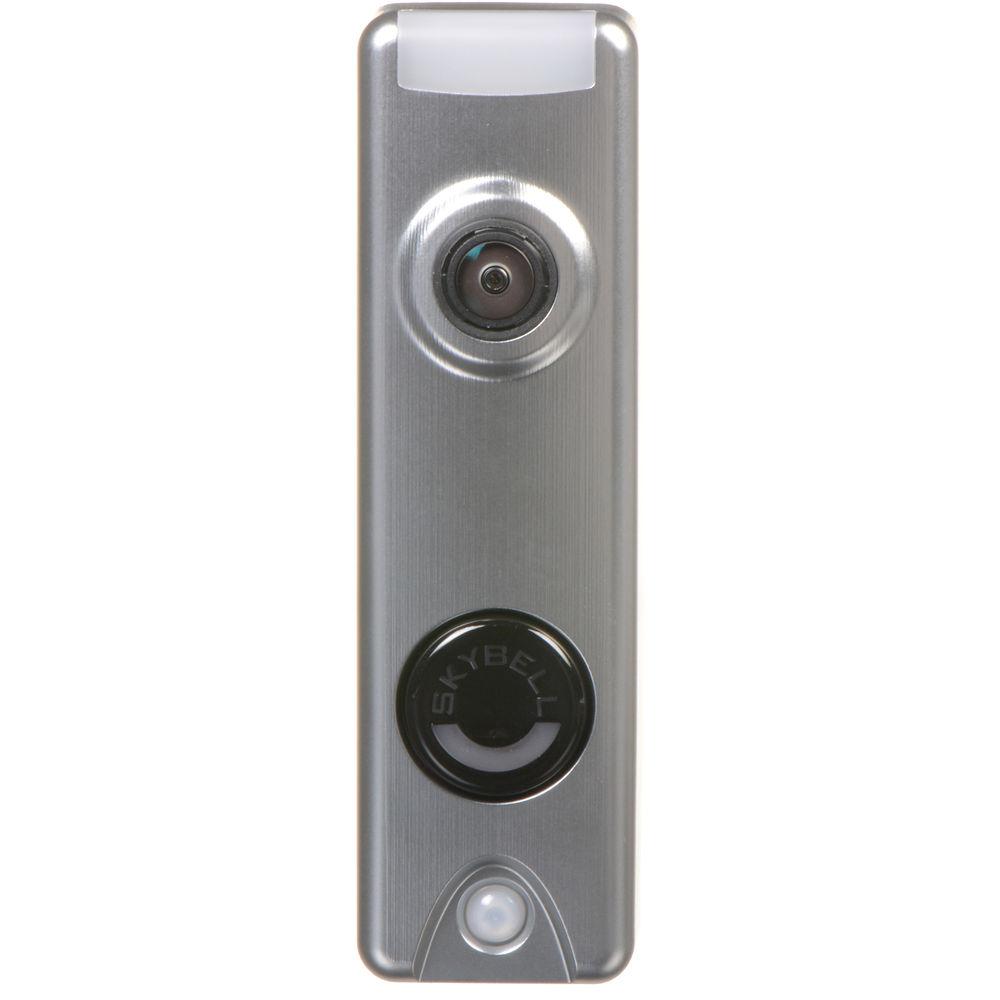

User Manual for Honeywell SkyBell Trim 1080p Wi-Fi Video Doorbell Click to enlarge the picture
Contents of the user manual for the Honeywell SkyBell Trim 1080p Wi-Fi Video
- Product category: Intercoms Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Intercoms
 |
User manual for the Honeywell SkyBell Trim 1080p Wi-Fi Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Interact with visitors at your front door with the silver SkyBell Trim 1080p Wi-Fi Video Doorbell from Honeywell. This doorbell camera features a built-in microphone and speaker for two-way audio communication and is IP54-rated to provide dust and water resistance. The camera can capture 1080p video at up to 15 fps. It produces color images in low light, allowing you to keep an eye on your property 24/7.
Download the free SkyBell app for iOS devices to receive alert notifications when the doorbell button is pressed and to customize settings. SkyBell Trim also features a dedicated motion sensor to detect movement near the door and send alerts directly to your phone even if the doorbell button isn't pressed. This SkyBell Trim is compatible with Honeywell Total Connect remote services. - 1080p video at up to 15 fps
- Lens has a 180° field of view to view the entire area in front of the door
- Built-in microphone and speaker for two-way communication
- Receive alerts whether the bell button is rung or not, or if motion is detected
- See, hear, and speak to visitors via the free SkyBell mobile app
- Live video feed to monitor your front door from anywhere
- Set up multiple users and devices to receive alerts
- Doorbell chime can be silenced
- Activity history allows you to view missed visitors, answered video calls, and motion alerts
- Capture images with the press of a button in the app
- Operates in extreme weather and temperatures from -40 to 140°F
- Up to 500MB of free video recording from SkyBell can be saved onto a mobile device
- LED indicator light can be customized
- Works with Honeywell Total Connect remote services and control panels
UPC: 886618252600 In the Box Honeywell SkyBell Trim 1080p Wi-Fi Video Doorbell (Silver) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell SkyBell Trim 1080p Wi-Fi Video Doorbell in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell SkyBell Specs | Image Sensor | CMOS sensor | | Resolution | 1920 x 1080 | | Frame Rate | Up to 15 fps | | Video Compression | H.264 | | Field of View | 180° | | Microphone | Omnidirectional | | Speaker | 105 dB SPL at 1 cm | | Motion Sensor | PIR detector, 180° field of view, up to 10' / 3 m | | Minimum Illumination | 0.1 lux | | System Requirements | Wi-Fi: 802.11b/g/n, 2.4 GHz
Initial Setup: Smartphone or tablet and a high-speed internet connection
Operating System: Apple iOS 8.1 or later, Android 2.X or later | | Power Requirements | External power source connected to 110/220 AC power
North America: NEC Class 2 transformer with an output from 8-30 VAC, 10 VA, or 12 VDC Limited Power Source (LPS) with 0.5 A
International: Low voltage transformer with an output of 8 VAC, 1 A, or 12 VDC limited power supply with 0.5 A | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 4.8 x 1.44 x 1.13" / 12.2 x 3.65 x 2.86 cm | | Weight | 2 oz / 56.7 g | | | | Package Weight | 0.445 lb | | Box Dimensions (LxWxH) | 6.4 x 4.85 x 2.15" |
