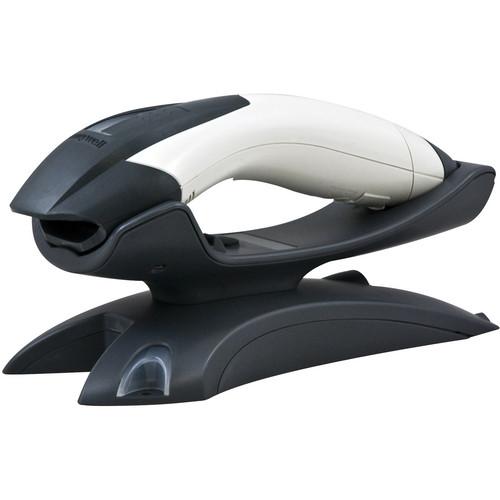

User Manual for Honeywell Voyager 1202g Wireless Handheld Linear Barcode Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Voyager 1202g Wireless Handheld Linear
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Voyager 1202g Wireless Handheld Linear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white Voyager 1202g Wireless Handheld Linear Barcode Scanner from Honeywell features a lightweight, ergonomic design that is drop-resistant up to 5.0 feet. Bluetooth connectivity gives you the freedom to scan all 1D barcodes from 33 feet away. Additionally, the base features a built-in pager so you can easily locate your misplaced scanner when in range. The scanner's design takes the guesswork out of proper positioning and angling. Thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, Code 11, and MSI codes. - Bluetooth Connectivity
- Scan all standard 1D bar codes from 33.0' away from the base (distance varies based on the user's environment)
- Long Battery Life with Tool-Free Removal
- The lithium-ion battery provides 12 hours or more of use, depending on scanning volume. The field-replaceable battery can be exchanged quickly and easily without tools
- Automatic Interface Configuration
- Supports all popular interfaces in one device, avoiding the need for the time-consuming process of scanning programming bar codes
- Reads Low-Quality Barcodes
- Increases throughput and reduces the potential for hand-keyed errors by minimizing the need to manually enter damaged or smudged codes
- Paging
- Simply press the button on the base to locate your lost scanner. The Voyager 1202g responds with a series of beeps and blinking lights on its indicator panel
- Remote MasterMind Ready
- Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
In the Box Honeywell Voyager 1202g Wireless Handheld Linear Barcode Scanner (White) Charging Base USB Cable Limited 5-Year Factory Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Voyager 1202g Wireless Handheld Linear Barcode Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1202g Specs | Scanner Type | Single line | | Scan Rate | 100 lines per second | | Working Distance | 5.0 mil: 1.1 to 5.9" (27 to 151 mm)
7.5 mil: 0.6 to 8.5" (16 to 216 mm)
10 mil: 0 to 10.9" (0 to 277 mm)
13 mil: 0 to 12.2" (0 to 311 mm)
20 mil: 0 to 14.4" (0 to 367 mm) | | Print Contrast | 10% minimum reflectance difference | | Angle | 30° horizontal | | Pitch | 60° | | Skew | 60° | | Bar-Code Types | Standard 1D and GS1 DataBar symbologies including:
Codabar, Code 11, Code 128, Code 32 Pharmaceutical, Code 39, Code 93, EAN, GS1, 2 of 5, MSI, Telepen, UPC | | Interfaces Supported | USB
Keyboard Wedge
RS232
IBM 46xx (RS485) | | Lux | 0 to 70,000 (6500 foot-candles) | | Drop Resistance | Withstands 30 drops to concrete from 59" (1.5 m) | | Power | Power Supply: 5.0 W (1.0 A @ 5.0 V)
USB: 2.5 W (0.5 A @ 5.0 V)
Standby: 0.63 W (0.13 A & 5.0 V) | | Wireless | Radio: 2.4 to 2.5 GHz (ISM Band) adaptive frequency hopping Bluetooth 2.1
Range: 33' (10 m), line of sight
Data Rate: Up to 3.0 Mbps | | Battery | 1800 mAh Lithium-ion | | Battery Life | Up to 45,000 scans per charge (approximately 12 hours of operation) | | Charging Time | Approximately 4 hours | | Certifications | IP42 environmental sealing | | Temperature / Humidity | Scanner:
Operating Temperature: 41 to 104°F (5 to 40°C)
Storage Temperature: 23 to 95°F (-5 to 35°C) with battery
Humidity: 0 to 95%
Base:
Operating Temperature (Charging): 40 to 104°F (5 to 40°C)
Operating Temperature (Non-Charging): 32 to 122°F (0 to 50°C) | | Dimensions | Scanner: 7.1 x 3.6 x 2.6" (180 x 92 x 66 mm)
Base: 7.9 x 3.8 x 2.6" (200 x 97 x 67 mm) | | Weight | Scanner: 6.3 oz (180 g) with battery
Base: 6.5 oz (185 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.5 x 6.0 x 5.3" |
