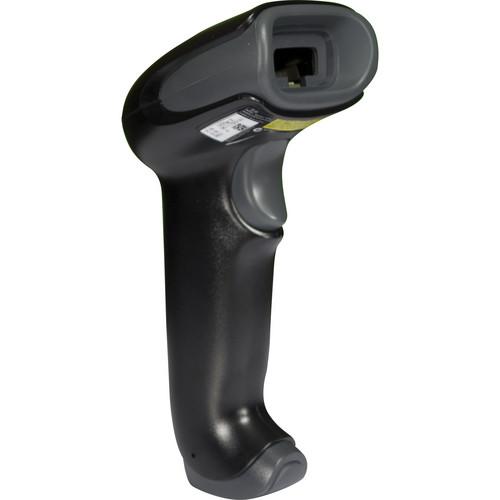

User Manual for Honeywell Voyager 1250g Handheld Linear Barcode Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Voyager 1250g Handheld Linear Barcode
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Voyager 1250g Handheld Linear Barcode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The black Voyager 1250g Handheld Linear Barcode Scanner from Honeywell features a lightweight, ergonomic design that is drop-resistant up to 4.9 feet. The scanner's design takes the guesswork out of proper positioning and angling. Thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. Additionally, you can seamlessly switch between hands-free and handheld modes thanks to automatic in-stand detection. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, MSI, Code 11, and IATA codes. The scanner features USB, keyboard wedge, and RS232 interfaces; cables are not included. - Extended Depth of Field
- Scan out-of-reach items and 13 mil barcodes from as far away as 17.6"
- Automatic Interface Detection
- You can use the reader with all popular interfaces in one device, replacing the time-consuming process of programming barcodes with automatic interface detection and configuration
- CodeGate Technology
- Lets you confirm that the desired barcode is scanned before your data is transmitted, making the scanner ideal for use in menu scanning applications
- Setup
- Simplifies set up with quick and easy stand assembly. Automatic in-stand detection and configuration makes it easy to switch between handheld and in-stand modes. Increases throughput with true object detection
- Ergonomic Design
- Easy to hold for extended periods, reducing fatigue in scan-intensive applications
- Remote MasterMind Ready
- Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
In the Box Honeywell Voyager 1250g Handheld Linear Barcode Scanner (Black) Limited 5-Year Factory Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1250g Specs | Scanner Type | Single line | | Scan Rate | 100 lines per second | | Working Distance | 5.0 mil: 2.2 to 5.5" (57 to 139 mm)
7.5 mil: 1.1 to 9.7" (28 to 245 mm)
10.4 mil: 0.4 to 14.5" (9.0 to 369 mm)
13 mil: 0 to 17.6" (0 to 446 mm) | | Print Contrast | 20% minimum reflectance difference | | Angle | 30° horizontal | | Pitch | 60° | | Skew | 60° | | Bar-Code Types | Standard 1D and GS1 DataBar symbologies including:
Codabar, Code 11, Code 128, Code 32 Pharmaceutical, Code 39, Code 93, EAN, GS1, 2 of 5, IATA, MSI, Telepen, UPC | | Interfaces Supported | RS232: TTL +5V, 4 Signals
Keyboard Wedge
USB: HID Keyboard, Serial, IBM OEM
RS-232C (±12 V)
IBM RS485 supported via adapter cable | | Lux | 0 to 75,000 | | Drop Resistance | Withstands 30 drops to concrete from 59" (1.5 m) | | Electrostatic Discharge | Air: 15 kV
Contact: 8.0 kV | | Power Requirements | 5.0 V ±5.0% | | Power | Operating: 700 mW (140 mA) @ 5.0 V
Standby: 425 mW (85 mA) @ 5.0 V | | Certifications | IP41 environmental sealing | | Temperature / Humidity | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 95% | | Dimensions | 6.6 x 2.9 x 2.3" (168 x 74 x 60 mm) | | Weight | 4.7 oz (133 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.9 x 3.4 x 2.3" |
