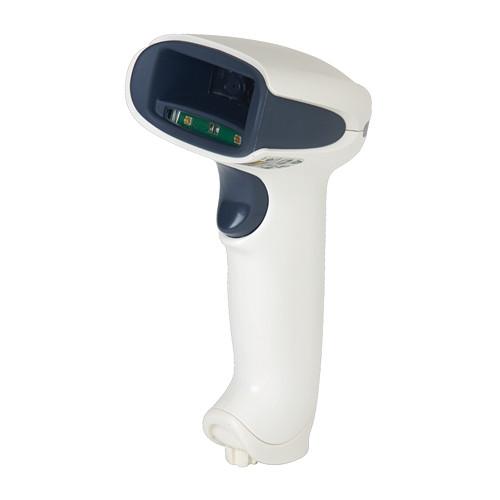

User Manual for Honeywell Xenon 1900 HD Area-Imaging Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Xenon 1900 HD Area-Imaging Scanner
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Xenon 1900 HD Area-Imaging Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white Xenon 1900 HD Area-Imaging Scanner from Honeywell is a handheld scanner optimized for barcode scanning. It offers a wide variety of area-imaging applications.
The Xenon 1900 is powered by Adaptus Imaging Technology 6.0 enabling it to provide quality bar code scanning and digital image capture. A custom sensor enables extended depth of field, faster read time, and improved performance on poor-quality barcodes. It can read 1D, 2D and PDF417 barcodes with ease. - The scanner is housed in a disinfectant-ready body that is able to resist harmful effects of cleaning chemicals.
- The Xenon 1900 has an IP41 rating which means it is protected against tools, small wires and condensation.
- The TotalFreedom 2.0 development platform eliminates the need for host system modifications by enabling the loading and linking of multiple applications on the scanner.
In the Box Honeywell Xenon 1900 HD Area-Imaging Scanner (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Xenon 1900 HD Area-Imaging Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1900 Specs | | | Input Voltage | 4 to 5.5 VDC | | Operating Power | 2.3 W (450 mA @ 5 VDC) | | Standby Power | 0.45 W (90 mA @ 5 VDC) | | | | Scan Pattern | Area Image (838 x 640 pixel array) | | Motion Tolerances | Up to 240 in/s (610 cm/s) for 13 mil UPC at optimal focus | | Scan Angle | HD: Horizontal: 41.4° Vertical:32.2° | | Print Contrast | 20% minimum reflectance difference | | Pitch | 45° | | Skew | 65° | | Decoding Formats | Reads standard 1D, 2D, and PDF417 symbologies | | Performance | 5 mil Code 39: 0 to 4.1" (0 to 104.1 mm)
13 mil UPC: 0.4 to 6.6" (10.2 to 167.6 mm)
20 mil Code 39: 0.4 to 9.2" (10.2 to 233.7 mm)
6.7 mil PDF417: 0 to 4.3" (0 to 109.2 mm)
10 mil DM: 0 to 5.0" (0 to 127 mm)
20 mil QR: 0.4 to 7.5" (10.2 to 190.5 mm)
Resolution 1D Code 39: 3.0 mil (0.076 mm)
Resolution 2D DM: 5.0 mil (0.127 mm) | | | | Computer Interface | USB, keyboard wedge, RS232, IBM 46xx, (RS485) | | System & Software Requirements | Will work on all MAC and PC operating systems | | | | Operating Temperature | 32°F to 122°F (0°C to 50°C) | | Storage Temperature | -40°F to 158°F (-40°C to 70°C) | | Humidity | 0 to 95% relative humidity, non-condensing | | Drop Resistance | Designed to withstand 50 drops to concrete from 6.0' (1.8 m) | | Sealing | IP41 | | Lighting Conditions | 0 to 100,000 lux (9,290 foot-candles) | | | | Dimensions | Scanner: 4.1 x 2.8 x 6.3" (104.0 x 71.0 x 160.0 mm) | | Weight | Scanner: 5.2 oz (147.0 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.1 x 4.6 x 3.0" |
