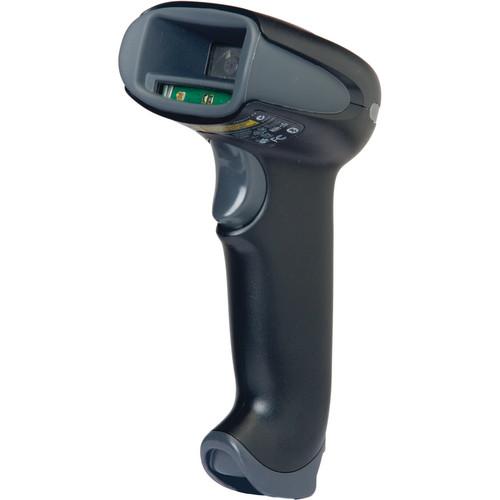

User Manual for Honeywell Xenon 1900 High Density Area-Imaging Scanner with USB Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Xenon 1900 High Density Area-Imaging
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Xenon 1900 High Density Area-Imaging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Using area-imaging technology and a grayscale sensor with a 838 x 640 resolution, the black Xenon 1900 High Density Area-Imaging Scanner from Honeywell/Sperian will provide reliable scanning for 1D, 2D, PDF, Postal, and OCR symbologies. With a field of view of 41.4° horizontally and 32.2° vertically it has a wide viewing area for reading and it uses Adaptus Imaging Technology 6.0 to deliver fast bar code scanning and digital image capture. Also, this version comes with a 9.8' USB cable for connection to a computer.
For portability and efficiency, Xenon 1900 works in a variety of areas and has a construction to match. To start, it works in light levels from 0 to 9,290 fc and is IP41-rated for sealing. Also, it uses a solid state design and solid construction to withstand multiple 6' drops to concrete. Adding to the versatility are USB, keyboard wedge, RS232 and RS485 connectivity options as well as the ability to work with Remote MasterMind Scanner Management software. - The TotalFreedom 2.0 development platform eliminates the need for host system modifications by enabling the loading and linking of multiple applications on the scanner.
- Decode Zone
- Code 39 (5 mil): 0-4.1" (0-10.4 cm)
Code 39 (20 mil): 0.4-9.2" (1.0-23.4 cm)
UPC (13 mil): 0.4-6.6" (1.0-16.8 cm)
QR Code (20 mil): 0.4-7.5" (1.0-19.1 cm)
PDF417 (6.7 mil): 0-4.3" (0-10.9 cm)
Data Matrix (10 mil): 0-5.0" (0-12.7 cm)
Code 39 (Resolution 1D): 3 mil (0.076 mm)
Data Matrix (Resolution 2D): 5 mil (0.127 mm) In the Box Honeywell Xenon 1900 High Density Area-Imaging Scanner with USB Cable (Black) CBL-500-300-S00 USB Cable (9.8') Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Xenon 1900 High Density Area-Imaging Scanner with USB Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1900GHD-2USB Specs | Sensor Resolution | 838 x 640 grayscale | | Field of View | Horizontal: 41.4°
Vertical: 32.2° | | Motion Tolerances | Up to 240 in/sec (610 cm/sec) for 13 mil UPC at optimal focus | | Pitch | 45° | | Skew | 65° | | Print Contrast | 20% minimum reflectance difference | | Supported Symbologies | 1D, PDF, 2D, Postal, and OCR | | Image File Formats | BMP, TIFF, JPG | | Interfaces | USB
Keyboard wedge
RS232
RS485 | | Sealing | IP41 | | Drop Resistance | Withstands multiple 6' (1.8 m) drops to concrete | | Ambient Light Immunity | Total darkness to 9,290 fc (100,000 lux) | | Power Requirements | 4-5.5 VDC | | Power Consumption | Operating: 2.3 W (450 mA at 5 VDC)
Standby: 0.45 W (90 mA at 5 VDC) | | Operating Conditions | Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 95%, relative non-condensing | | Storage Conditions | Temperature: -40 to 158°F (-40 to 70°C)
Humidity: 0 to 95%, relative non-condensing | | Dimensions | 4.1 x 2.8 x 6.3" (104 x 71 x 160 mm) | | Weight | 5.2 oz (147 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.5 x 5.8 x 3.7" |
