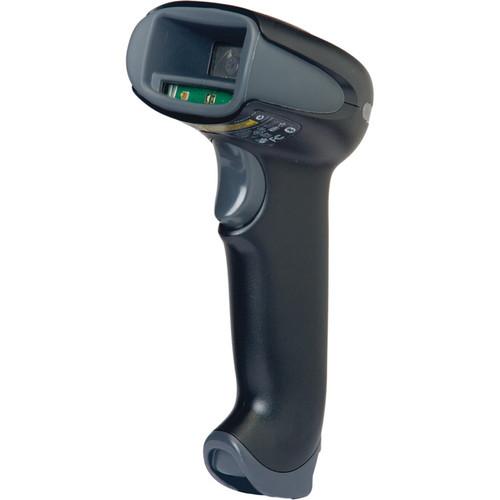

User Manual for Honeywell Xenon 1902 Wireless Area-Imaging Handheld Bar Code Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Xenon 1902 Wireless Area-Imaging Handheld
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
|
User manual for the Honeywell Xenon 1902 Wireless Area-Imaging Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The black Xenon 1902 Wireless Area-Imaging Handheld Bar Code Scanner from Honeywell features a lightweight, ergonomic design that is drop-resistant up to 6 feet. The scanner features a 2.4 GHz wireless receiver with a 33' range and an 1800 mAh battery that can execute up to 50,000 scans between charges. The scanner's design takes the guesswork out of proper positioning and angling. Thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. The scanner is compatible with 1D, PDF, 2D, Postal and OCR symbologies and can read bar codes from mobile device screens. - Wireless Connectivity
- Bluetooth Class 2, v2.1 radio enables movement up to 33 feet from the base, reduces interference with other wireless systems, and lowers total cost of ownership by allowing up to seven imagers to communicate to a single base. A paging system helps locate misplaced scanner
- Long-Lasting Lithium-Ion Battery
- Powers up to 50,000 scans per full charge
- Flexible Power Management
- Allows user to limit radio power output of scanner, minimizing the likelihood of interference with other devices
- Image Processing Software
- Offers advanced editing functionality-cropping, brightening, rotating, sharpening and more-to produce high-quality digital images
- TotalFreedom 2.0
- Second-generation development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
- Remote MasterMind Scanner Management Software
- Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
- Adaptus Imaging Technology 6.0
- The decoding architecture and custom sensor enable an extended depth of field, faster reading, and improved scanning performance on poor quality bar codes. It can also read bar codes ranging from high density linear to 2D codes displayed on the screen of a mobile device such as a smartphone or tablet
In the Box Honeywell Xenon 1902 Wireless Area-Imaging Handheld Bar Code Scanner (Black) Charging & Communication Base USB Cable Image Processing Software Remote MasterMind Scanner Management Software Limited 3-Year Factory Warranty Limited 1-Year Battery Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Xenon 1902 Wireless Area-Imaging Handheld Bar Code Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1902 Specs | Scan Pattern | Area Image (838 x 640 pixel array) | | Print Contrast | 20% minimum reflectance difference | | Angle | HD Focus (Horizontal): 41.4°
HD Focus (Vertical): 32.2°
SR Focus (Horizontal): 42.4°
SR Focus (Vertical): 33°
ER Focus (Horizontal): 31.6°
ER Focus (Vertical): 24.4° | | Motion Tolerances | Up to 240 in/s (610 cm/s) for 13 mil UPC at optimal focus | | Pitch | 45° | | Skew | 65° | | Bar-Code Types | Standard 1D, PDF, 2D, Postal, and OCR symbologies | | Performance | 5 mil Code 39 (HD): 0 to 4.1" (0 to 104.1 mm)
5 mil Code 39 (SR): 1.1 to 5.3" (27.9 to 134.6 mm)
5 mil Code 39 (ER): 3.7 to 8.0" (94 to 203.2 mm)
13 mil UPC (HD): 0.4 to 6.6" (10.2 to 167.6 mm)
13 mil UPC (SR): 0.4 to 17.3" (10.2 to 439.4 mm)
13 mil UPC (ER): 1.0 to 20.7" (25.4 to 525.8 mm)
20 mil Code 39 (HD): 0.4 to 9.2" (10.2 to 233.7 mm)
20 mil Code 39 (SR): 0.5 to 23.0" (12.7 to 584.2 mm)
20 mil Code 39 (ER): 1.0 to 23.5" (25.4 to 596.9 mm)
6.7 mil PDF417 (HD): 0 to 4.3" (0 to 109.2 mm)
6.7 mil PDF417 (SR): 0.4 to 6.1" (10.2 to 154.9 mm)
6.7 mil PDF417 (ER): 2.8 to 9.2" (71.1 to 233.7 mm)
10 mil DM (HD): 0 to 5.0" (0 to 127 mm)
10 mil DM (SR): 0.5 to 7.5" (12.7 to 190.5 mm)
10 mil DM (ER): 2.5 to 11.3" (63.5 to 287 mm)
20 mil QR (HD): 0.4 to 7.5" (10.2 to 190.5 mm)
20 mil QR (SR): 0.6 to 15.1" (15.2 to 383.5 mm)
20 mil QR (ER): 0.7 to 19.0" (17.8 to 482.6 mm)
Resolution 1D Code 39 (HD): 3.0 mil (0.076 mm)
Resolution 1D Code 39 (SR): 5.0 mil (0.127 mm)
Resolution 1D Code 39 (ER): 5.0 mil (0.127 mm)
Resolution 2D DM (HD): 5.0 mil (0.127 mm)
Resolution 2D DM (SR): 6.7 mil (0.17 mm)
Resolution 2D DM (ER): 7.5 mil (0.191 mm) | | Interfaces Supported | USB
Keyboard Wedge
RS232
IBM 46xx (RS485)
Bluetooth | | Lux | 0 to 100,000 lux (9290 foot-candles) | | Wireless Communications | 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 33' (10 m) line of sight | | Data Transfer Rate | Up to 1.0 Mbps | | Durability | Scanner: Withstands 50 drops to concrete from 6.0' (1.83 m)
Base: Withstands 50 drops to concrete from 3.3' (1.0 m) on each face | | Power Requirements | Li-ion battery | | Battery Capacity | 1800 mAh | | Battery Life | Up to 50,000 scans per charge (approx. 14 hours) | | Charging Time | Approx. 4.5 hours | | Power | Operating: 5.0 W (0.1 A @ 5.0 V)
Standby: 0.5 W (0.1 A @ 5 V) | | Certifications | IP41 environmental sealing | | Temperature / Humidity | Operating Temperature (Scanner): 32 to 122°F (0 to 50°C)
Operating Temperature (Base, Charging): 41 to 104°F (5.0 to 40°C)
Operating Temperature (Base, Non-Charging): 32 to 122°F (0 to 50°C)
Storage Temperature (Scanner): -40 to 158°F (-40 to 70°C)
Storage Temperature (Base): -40 to 158°F (-40 to 70°C)
Humidity (Scanner): 0 to 95%
Humidity (Base): 0 to 95% | | Dimensions (LxWxH) | Scanner: 4.1 x 2.8 x 6.3" (104 x 71 x 160 mm)
Base: 5.2 x 4.0 x 3.2" (132 x 102 x 81 mm) | | Weight | Scanner: 7.5 oz (214 g)
Base: 6.3 oz (179 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.8 x 5.3 x 5.3" |
