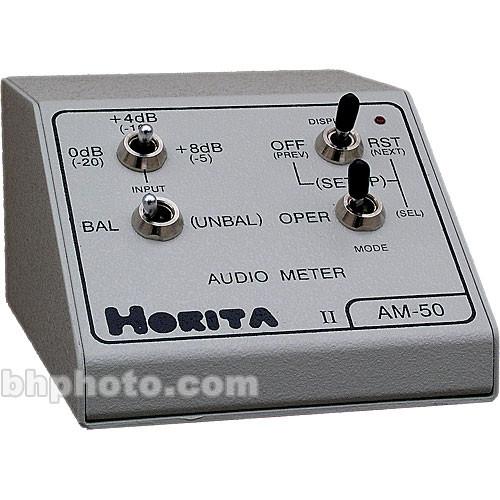

Product description The Horita AM-50 is an on-screen Audio Level meter, the AM-50 provides a visual indication of Audio signal amplitude superimposed over the correlating video. It utilizes composite video and stereo mini for A/V connectivity. - Displays
- Various formats are available for displaying the Audio levels, including those designed to take up a minimum amount of on-screen Video space.
- Modes
- Normal, Peak, Alarm, and Phase Check modes are provided.
- Phase Check
- Phase Check mode shows "IN" or "OUT" phase condition.
- Alarm Mode
- Alarm mode leaves flashing "Peak" reading until display is manually reset..
In the Box Horita AM-50 "On Screen" Audio Meter, Composite Video I/O, Stereo Mini I/O Audio Adapters x2 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita AM-50 "On Screen" Audio Meter, Composite Video I O, Stereo Mini I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita AM50 Specs | Input | Composite Video, on a BNC connector
Balanced or Unbalanced Stereo Audio, on a stereo mini plug | | Output | Composite Video, on a BNC connector
Balanced or Unbalanced Stereo Audio, on a stereo mini plug | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Power On/Off
Balanced Input Range
Mode | | Power Source | 9 VDC on an AC Adapter | | Dimensions (WxDxH) | 3 x 4 x 2"
7.62 x 10.1 x 5.08cm | | Weight | 8 oz
227 grams | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 3.5" |
