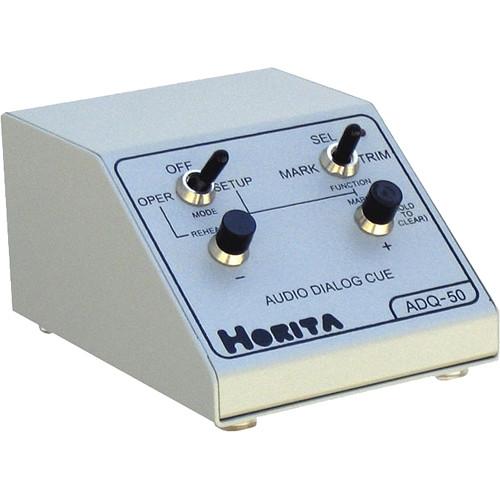

User Manual for Horita Audio Video Cue Streamer Click to enlarge the picture
Contents of the user manual for the Horita Audio Video Cue Streamer
- Product category: Video & Audio Signal Generators Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Video & Audio Signal Generators
|
User manual for the Horita Audio Video Cue Streamer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The Horita Audio / Video Cue Streamer produces video and audio cue prompts making the desktop-sized device suitable for use in ADR, Foley, or other post production areas where repeatable and precise audio tasks are carried out. The unit allows you to trim the time line frame-by-frame to the precise point at which the ADR, Foley, or other audio is to be inserted into the video. A white line is generated and sweeps across the screen from left to right, and when it reaches the rightmost edge, a square video box is flashed on the screen. The line's exit and box's appearance act as visual cues for starting the audio event. Apart from the visual cues, the streamer also generates an audio cue - 3 evenly spaced audio tones, to define a time-pattern, followed by the faux-fourth one that syncs with the flashing box on the screen. During an edit, where the In & Out points are marked, the sweep line and audio tones automatically back-time and coincide with the incoming time code to end with the appearance of the video box prompt. For perfect audio-video sync, the audio prompts interact with the video display. When the tones sound, the sweeping line turns off. At the faux-fourth tone, along with the video flash, the audio is set to sync with the video. This feature comes in useful while working in sound environments/stages requiring low or zero volume levels. The ADQ50 even allows you to rehearse and perform pull-down sync. A PC connected via RS232 serial data cable sets the GPI-signal-input channel for this device to rehearse/perform. Using the REHEARSE switch on the front panel and the MARK switches, you can manually set the trigger or the MARK times. In addition to the above set up, the streamer can also be controlled using the supplied Qme software. This software allows cue time capture, EDL (Edit Decision List) compilation, and adding comments to each event. Additionally with the help of Qme, users can save, recall, print, and even send it to the streamer online post production sessions. The streamer can read the SMPTE time code for play speeds that range from 1/30 up to 10x. - Produces video and audio cue prompts
- Suitable for use in ADR, Foley, or other post production audio tasks requiring specific and repeatable timing or syncing of audio responses to specific video action
- Trim the time line frame-by-frame to the precise point at which the ADR, Foley, or other audio is to be inserted into the video
- Generates a white line which sweeps across the screen from left to right on the screen
- Line's exit and box's appearance act as visual cues for starting the audio event
- Generate an audio cue pattern with 3 evenly spaced audio tones
- Outputs a faux-fourth one that syncs with the flashing box on the screen
- Allows you to rehearse and perform pull-down sync
- Using the REHEARSE switch on the front panel and the MARK switches, you can manually set the trigger or the MARK times
- Streamer can be controlled using the supplied Qme software
- Software allows cue time capture, EDL (Edit Decision List) compilation, and adding comments to each even
- Read the SMPTE time code for play speeds that range from 1/30 up to 10x
In the Box Horita Audio / Video Cue Streamer 3 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita Audio Video Cue Streamer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita ADQ-50 Specs | Video In | BNC x1 | | Video Out | BNC x1 | | Audio Out | Mini (3.5mm) x1 | | Communication Port | RS232 x1
GPI x1 | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
