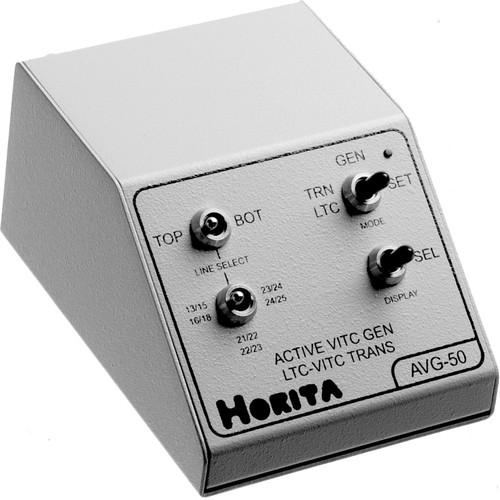

User Manual for Horita AVG-50 Active VITC Generator, Composite, NTSC Click to enlarge the picture
Contents of the user manual for the Horita AVG-50 Active VITC Generator, Composite,
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
 |
User manual for the Horita AVG-50 Active VITC Generator, Composite, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The AVG-50 generates Vertical Interval Time Code and possesses the ability to insert VITC on to pre recorded video without visually changing the image. It features composite input/output capabilities. - VITC
- Vertical Interval Time Code remains with the video even during time base correction and processing.
- Line Selection
- VITC can be inserted on the standard lines 13 and 15 or select a pair of 5 other line combinations.

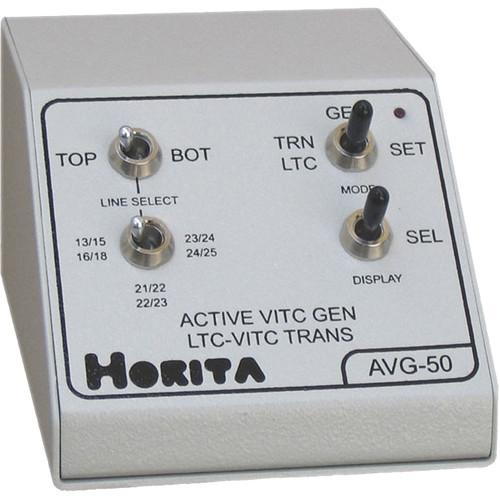

- Controls
- Line selection, time code/user bits and window display on or off can be controlled by the user.
- Translation
- Translates SMPTE LTC time code to VITC time code.
In the Box Horita AVG-50 Active VITC (Vertical Interval Time Code) Generator, Composite, NTSC AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita AVG-50 Active VITC Generator, Composite, NTSC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

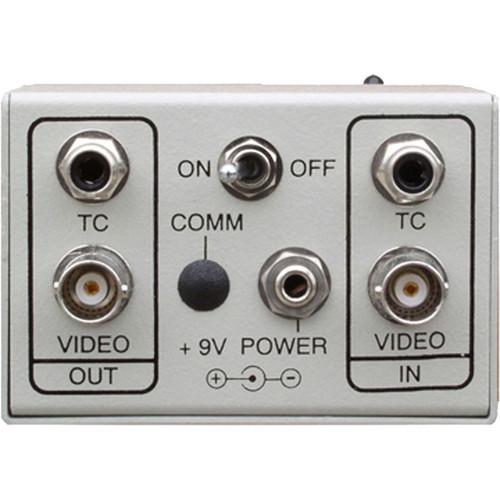

Technical parametersHorita AVG-50 Specs | Input | Composite Video x2, with or without LTC, BNC and RCA connectors | | Output | Composite Video x2, with VITC, BNC and RCA connectors | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Video Line Pair Selection
User Bit
Time Code
Window Display On or Off | | Power Source | 9 VDC from a 120 VAC @ 50/60 Hz AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.8 x 6.4 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
