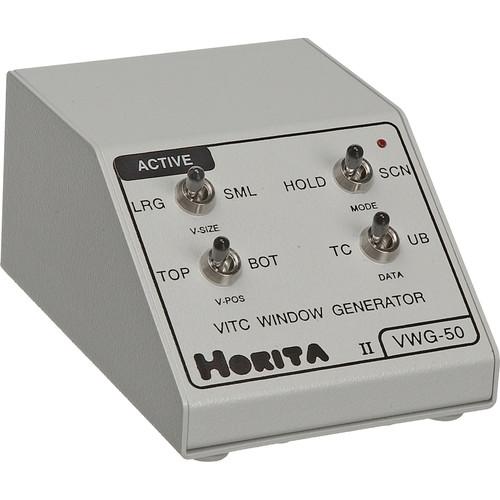

User Manual for Horita AVWG-50 "Active" VITC Window Generator, Composte, BNC RCA Click to enlarge the picture
Contents of the user manual for the Horita AVWG-50 "Active" VITC Window Generator,
- Product category: Time Code Generators & Readers Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Time Code Generators & Readers
|
User manual for the Horita AVWG-50 "Active" VITC Window Generator, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|
Product description The AVWG-50 is a Vertical Interval Time Code reader; it possesses the ability to create an on screen window over video including time code numbers for "window dubs" on any tape format. This "Active" model will read pseudo VITC time code from digital tape formats and create a window burn. - Application
- Compatible with all VCR formats. Intended for use in locating material on tape according to its VITC time-code number.
- High Speed Reading
- Reads VITC time code from pause to 20x play speed.
- Window Burn
- Creates burned-in VITC window dub copies to any tape format utilizing composite video.
- Size and Position
- Adjustments for H and V size and position of window with characters.
- Active
- The "Active" functionality of this model allows the user to read pseudo VITC from digital tape formats.
In the Box Horita AVWG-50 "Active" VITC Window Generator, Composte, BNC/RCA AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita AVWG-50 "Active" VITC Window Generator, Composte, BNC RCA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita AVWG50 Specs | Input | Composite Video, w/VITC, on RCA and BNC connectors | | Output | Composite Video, w/VITC window and characters, on RCA and BNC connectors | | Television System | NTSC @ 3.58 MHz | | Control | Front Panel:
Window Position
Video Field Selection
Data Selection | | Power Source | 9 VDC on a Supplied AC Adapter | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 4.0" |
