User Manual for Horita BSG-5030 Multi Output Black Sync Generator, Composite, 30 Frame Click to enlarge the picture
Contents of the user manual for the Horita BSG-5030 Multi Output Black Sync
- Product category: Video & Audio Signal Generators Horita
- Brand: Horita
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Horita Video & Audio Signal Generators
|
User manual for the Horita BSG-5030 Multi Output Black Sync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Horita product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Horita user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Horita product will considerably shorten its lifespan!
|

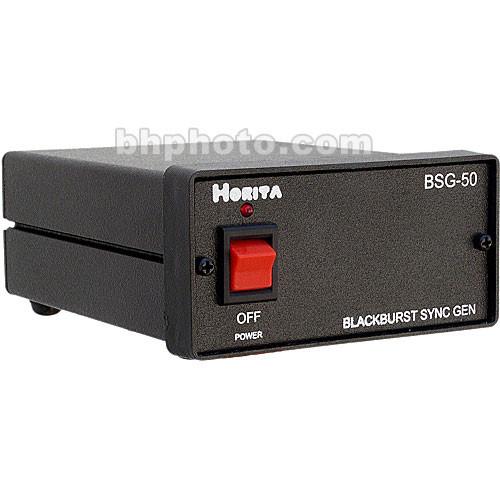

Product description The BSG-5030 is a signal generator able to output Black Burst, Sync and Sub Carrier signals along with a separate audio tone output. It features multiple outputs configurable to the users application. This model outputs an exact 30 fps instead of the standard 29.97, - Variable Configuration
- All six outputs (BNC) can be easily configured to supply a black signal (without burst)or 1Khz audio tone, or any configuration of the two to fit your needs. Designed to generate 30 fps (instead of the standard 29.97 fps), 30 fps is used in professional audio applications.
- Engineering Adjustments
- Adjustments are provided for
- AC/DC Operation
- The BSG-5030 can be powered from 9 to 13.5 volts DC for remote use, or with the supplied AC adaptor for studio applications. The optional BP-50 battery pack adapts eight standard AA rechargable batteries to power the unit.
- 30 fps
- This model operates at exactly 30 fps (instead of the NTSC 29.97) for use in professional audio applications.
In the Box Horita BSG-5030 Multi Output Black / Sync Generator, Composite, 30 Frame AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita BSG-5030 Multi Output Black Sync Generator, Composite, 30 Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita BSG5030 Specs | Output | Selectable Video Signals x6, Black, Sync, Sub Carrier, on six BNC connectors
Audio Tone, 1 kHz, on a 1/4" connector | | Television System | Conforms to exactly 30 fps instead of a Television Standard | | Control | Front Panel:
Power SwitchInternal Dip Switches:
Output Configuration | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 2.01 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 4.0" |
