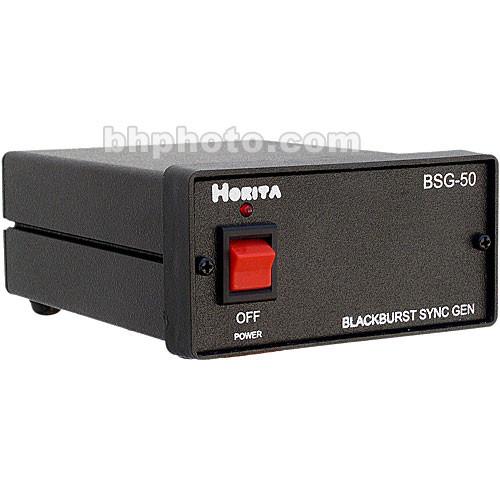

Product description The BSG-50P is a PAL signal generator able to output Black Burst, Sync and Sub Carrier signals along with a separate audio tone output. It features multiple outputs configurable to the users application. - Variable Configuration
- All six outputs (BNC) can be easily configured to the user's particular configuration of Black Burst, Sync and Sub Carrier.
- Engineering Adjustments
- Adjustments are provided for
- AC/DC Operation
- The BSG-50 can be powered from 9 to 13.5 volts DC for remote use, or with the supplied AC adaptor for studio applications. The optional BP-50 battery pack adapts eight standard AA rechargable batteries to power the unit.
In the Box Horita BSG-50P Multi Output PAL Signal Generator, Black Burst, Sync, Audio Tone AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita BSG-50P Multi Output PAL Signal Generator, Black Burst, Sync, Audio Tone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHorita BSG50PAL Specs | Output | Selectable Video Signals x6, Black Burst, Sync, Sub Carrier, on six BNC connectors
Audio Tone, 1 kHz, on a 1/4" connector | | Television System | PAL @ 4.43 MHz | | Control | Front Panel:
Power SwitchInternal Dip Switches:
Output Configuration | | Dimensions (WxDxH) | 3 x 5 x 1.75"
7.62 x 12.7 x 4.45cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 3.5" |
